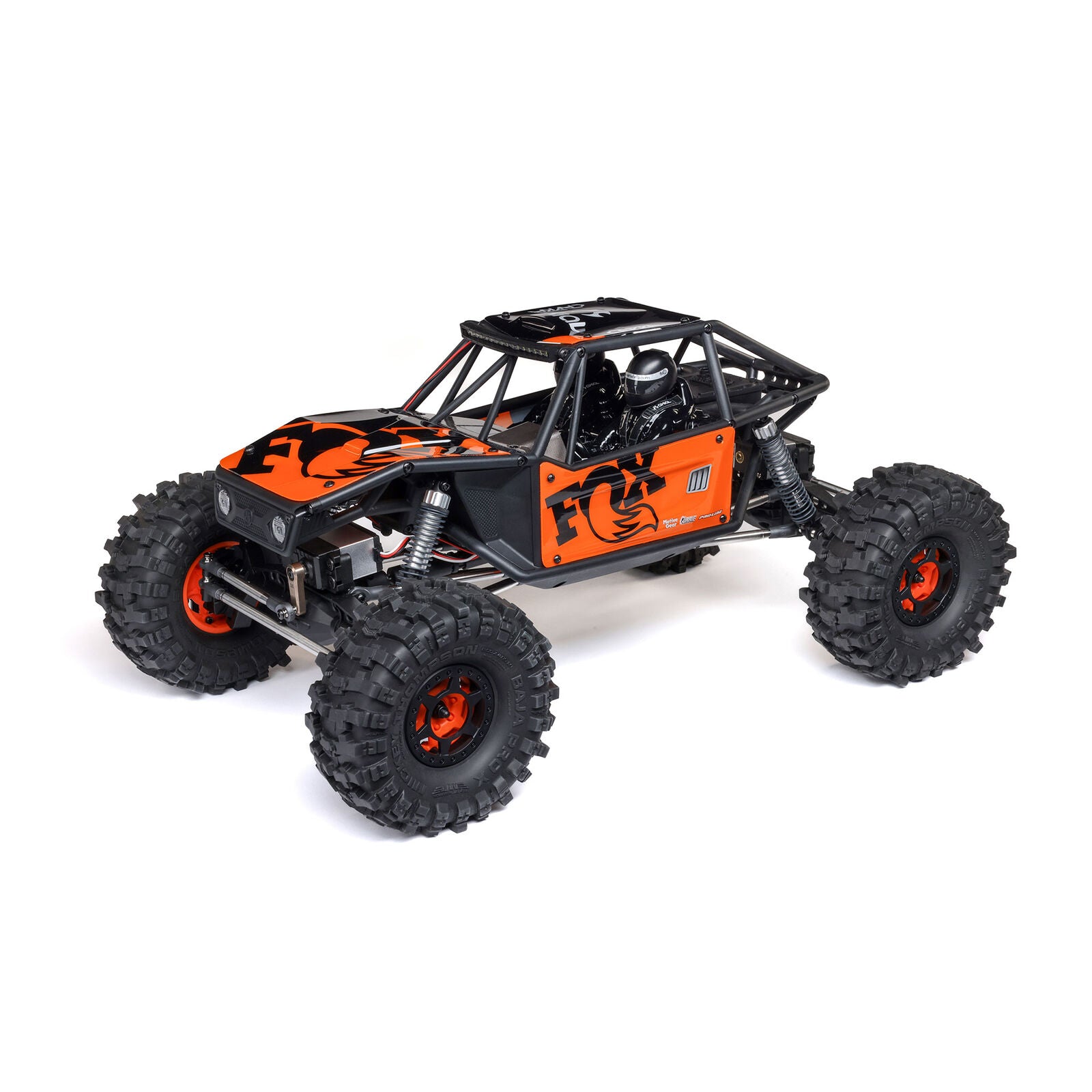

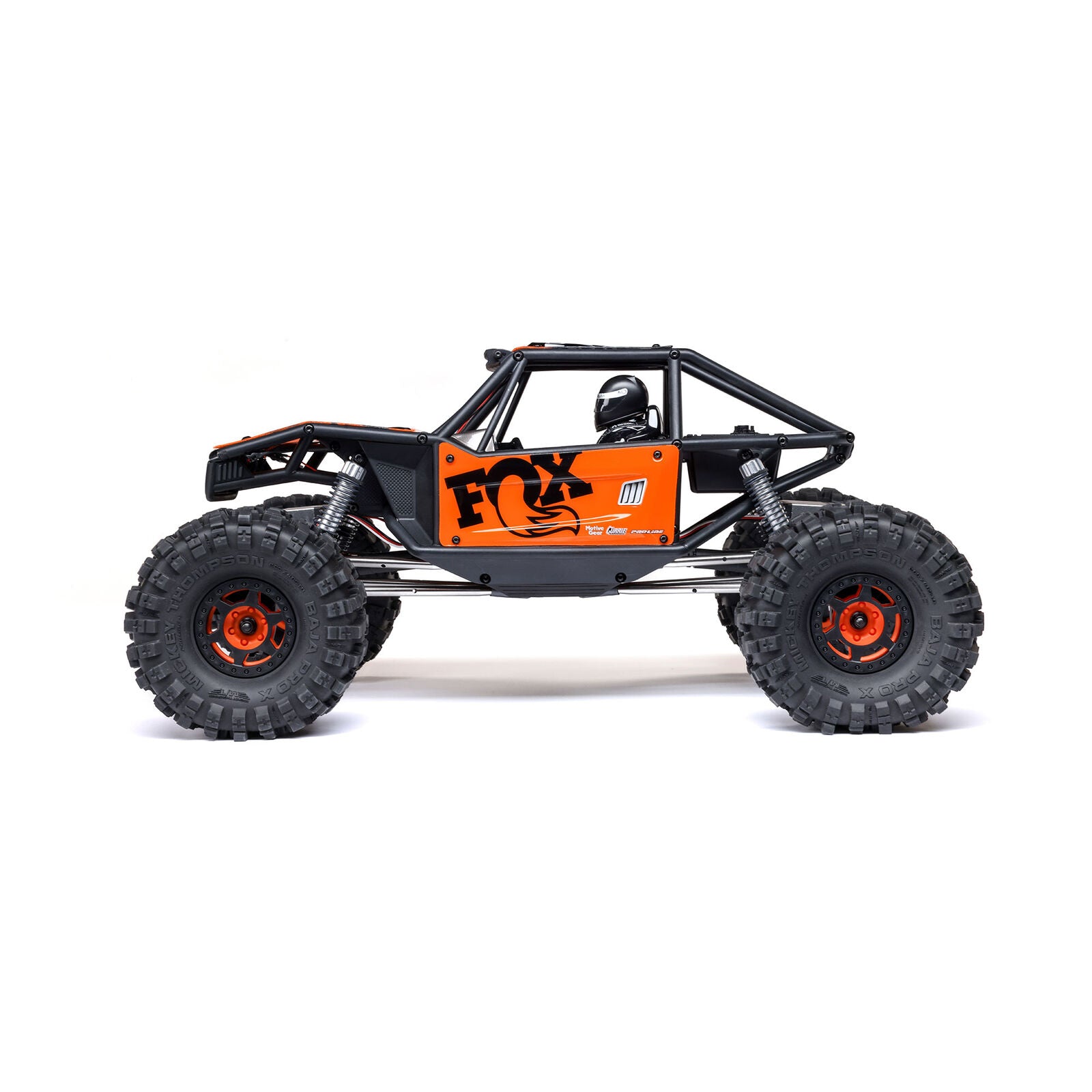

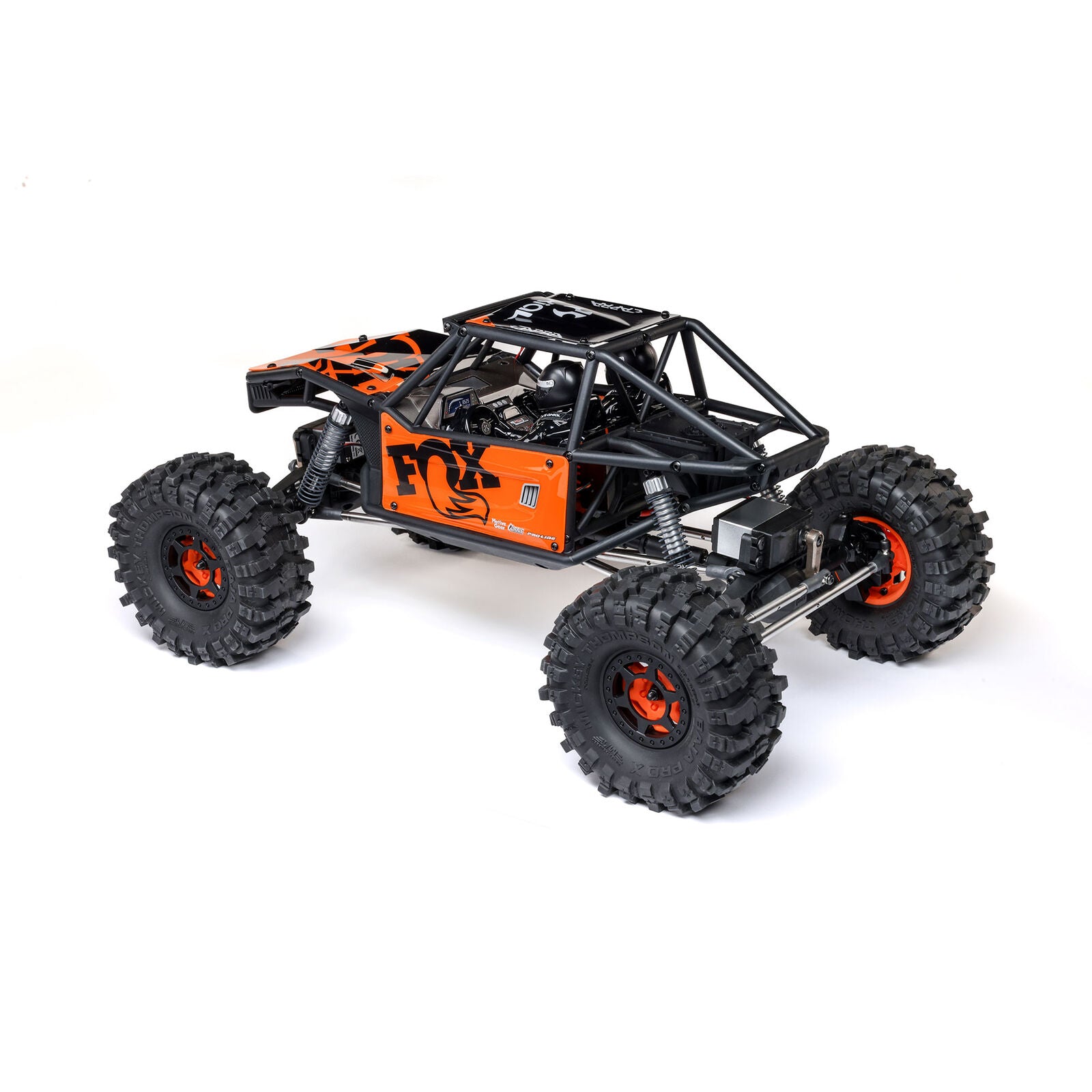

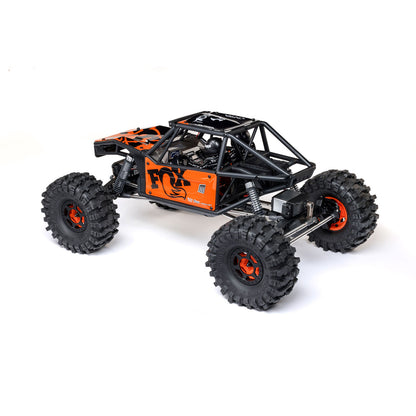

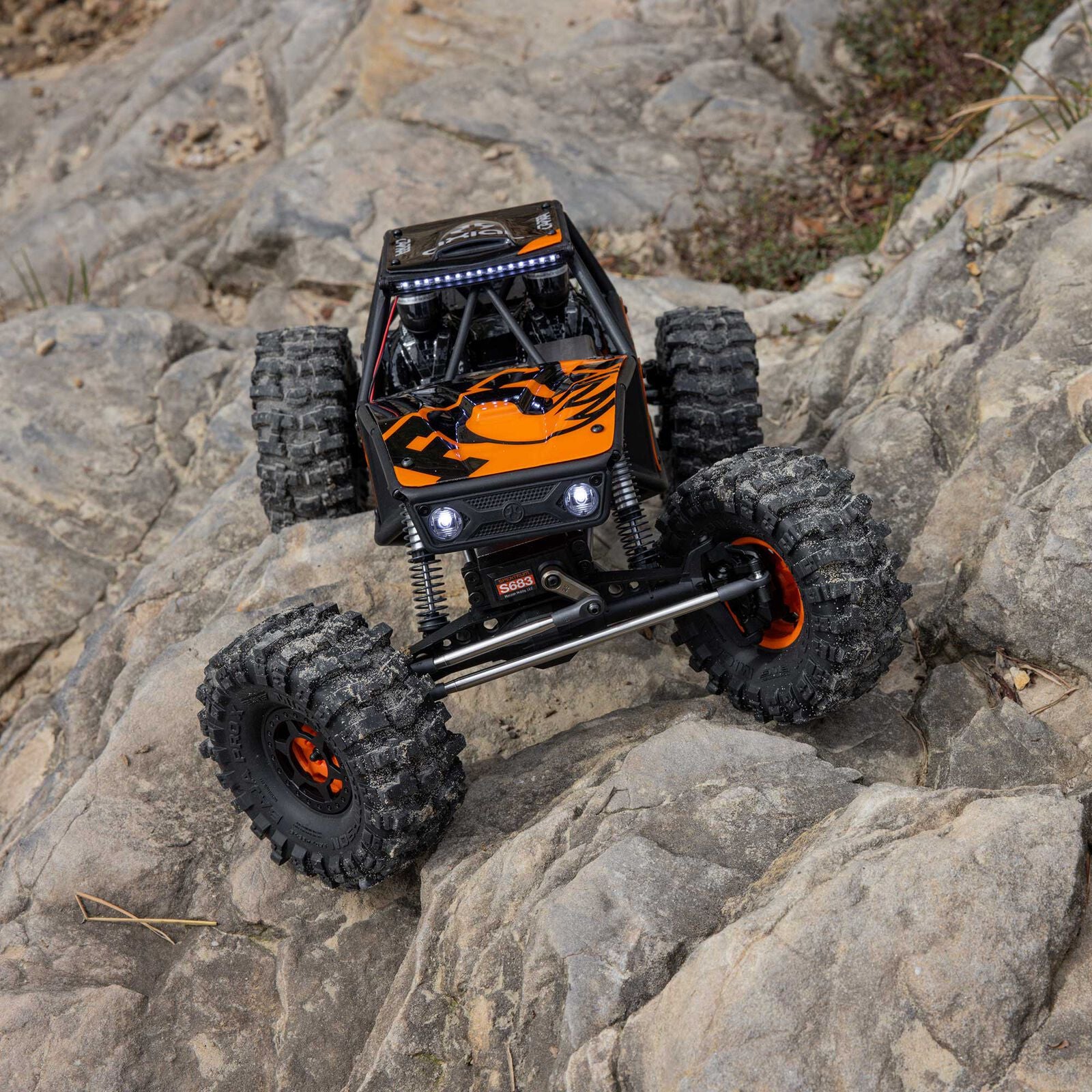

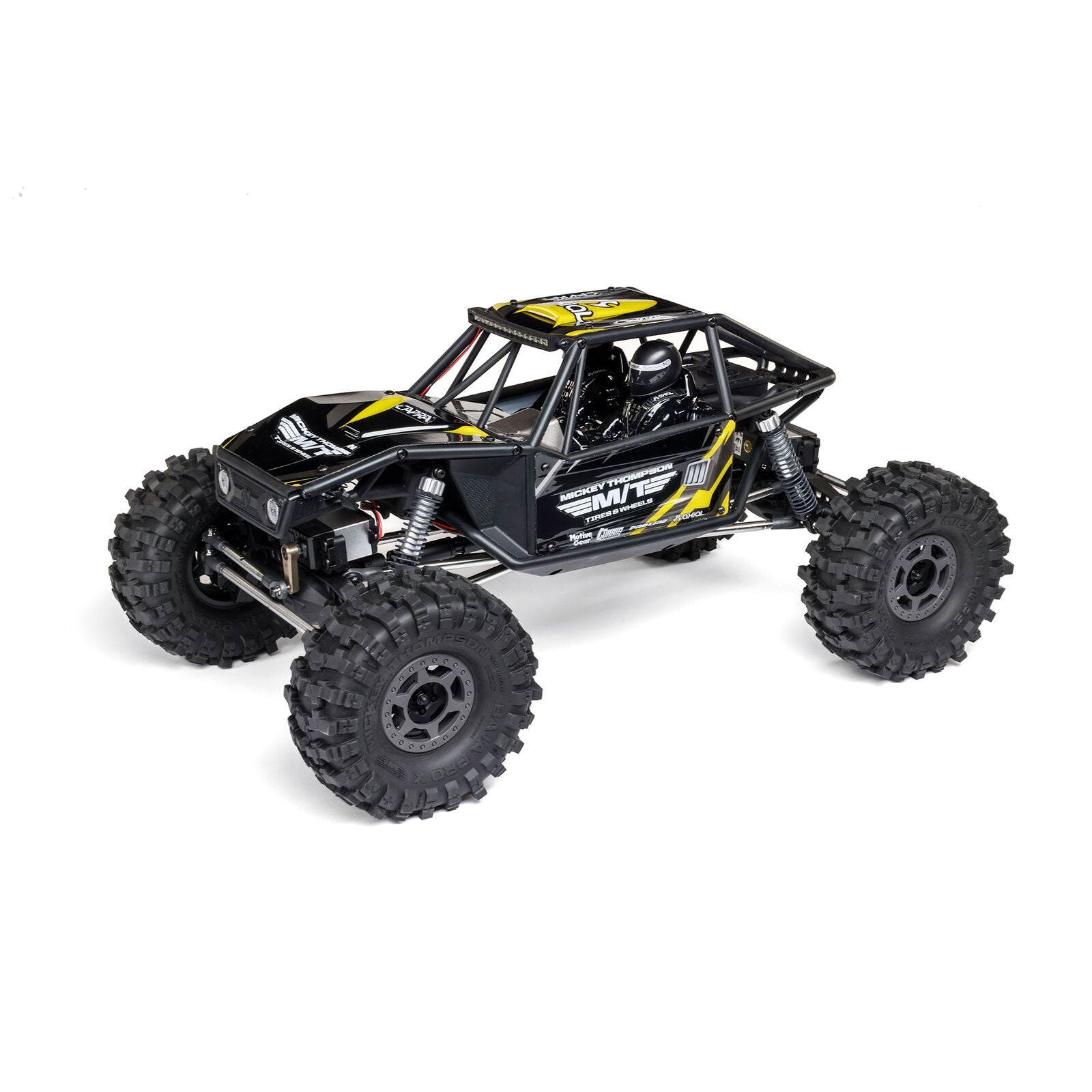

Axial 1/10 UTB10 Capra 1.9 4WS

The Axial rig that set the bar for 1/10 trail buggies has raised it again, now adding a lower gear ratio transmission for even better crawling. Ready for any trail, obstacle, or hill, the Capra doesn’t compromise. It’s better than the competition in every way.

In the Box

Axial UTB10 Capra 1.9 4WS 4X4 Unlimited Trail Buggy RTR x1
Axial 540 Electric Motor (installed) x1
Spektrum S683 25T waterproof metal gear steering servos (installed) x2
Spektrum Firma 40A brushed waterproof ESC x1
Spektrum SR515 DSMR 5-channel receiver x1
Spektrum DX3 2.4GHz Transmitter x1
AA Alkaline Transmitter Batteries x4
Instruction Manual x1

Needed to Complete

2–3S LiPo Battery with EC3 or IC3 connector x1
Compatible Battery Charger x1

Features

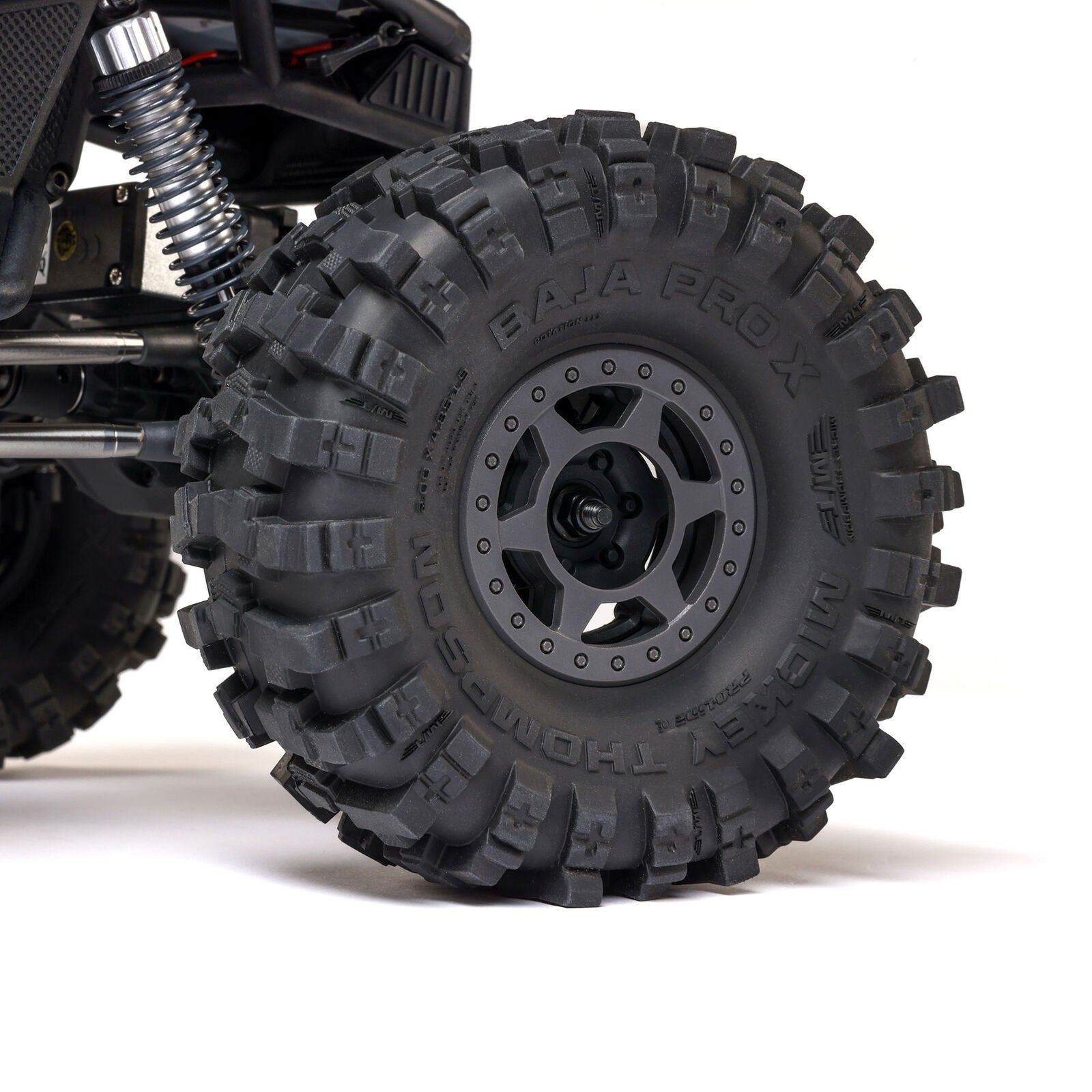

Officially licensed Pro-Line OE Mickey Thompson Baja Pro X tyres
Pro-Line OE Holcomb 1.9 wheels
Dual stage, open cell foam inserts
Stainless steel suspension links and pivot balls

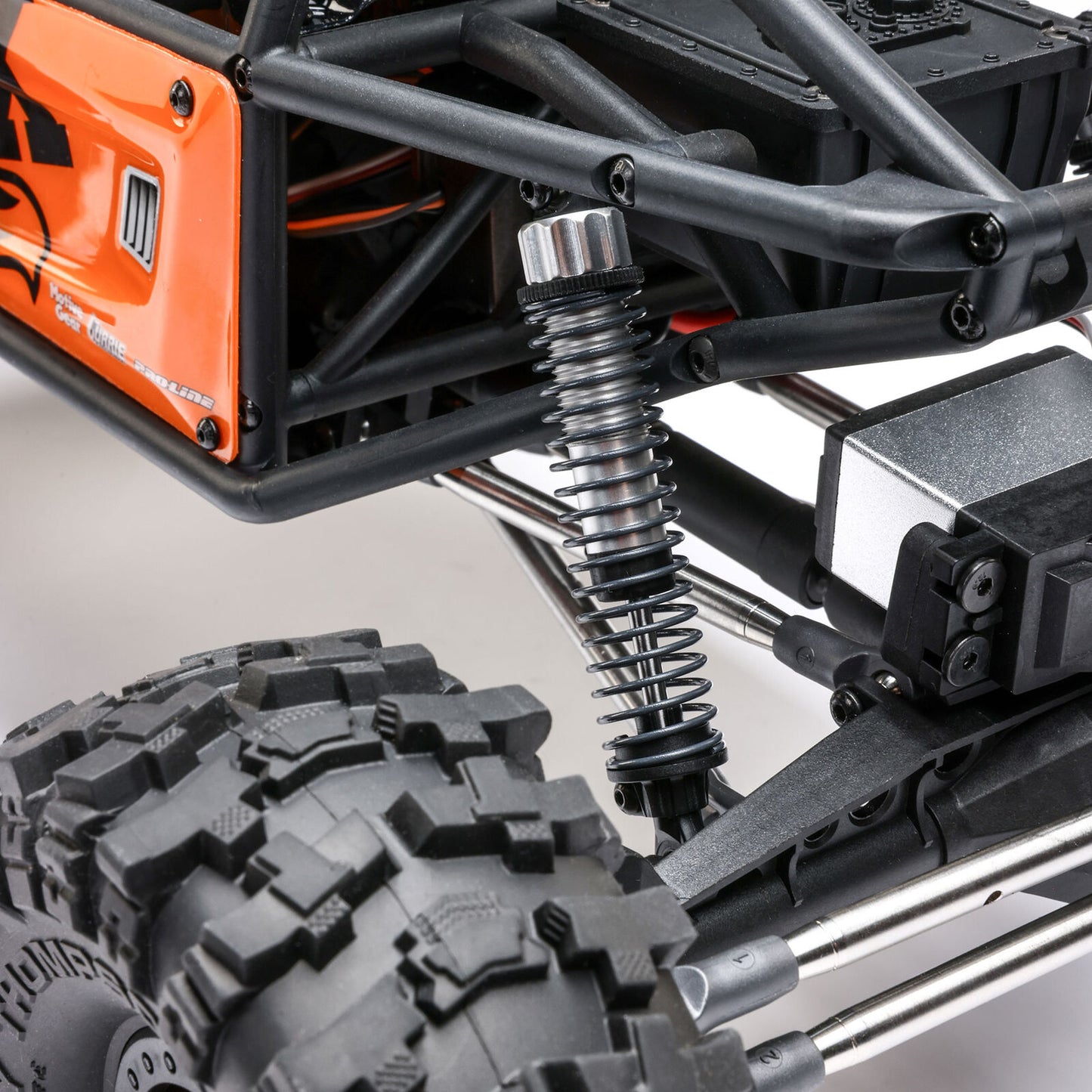

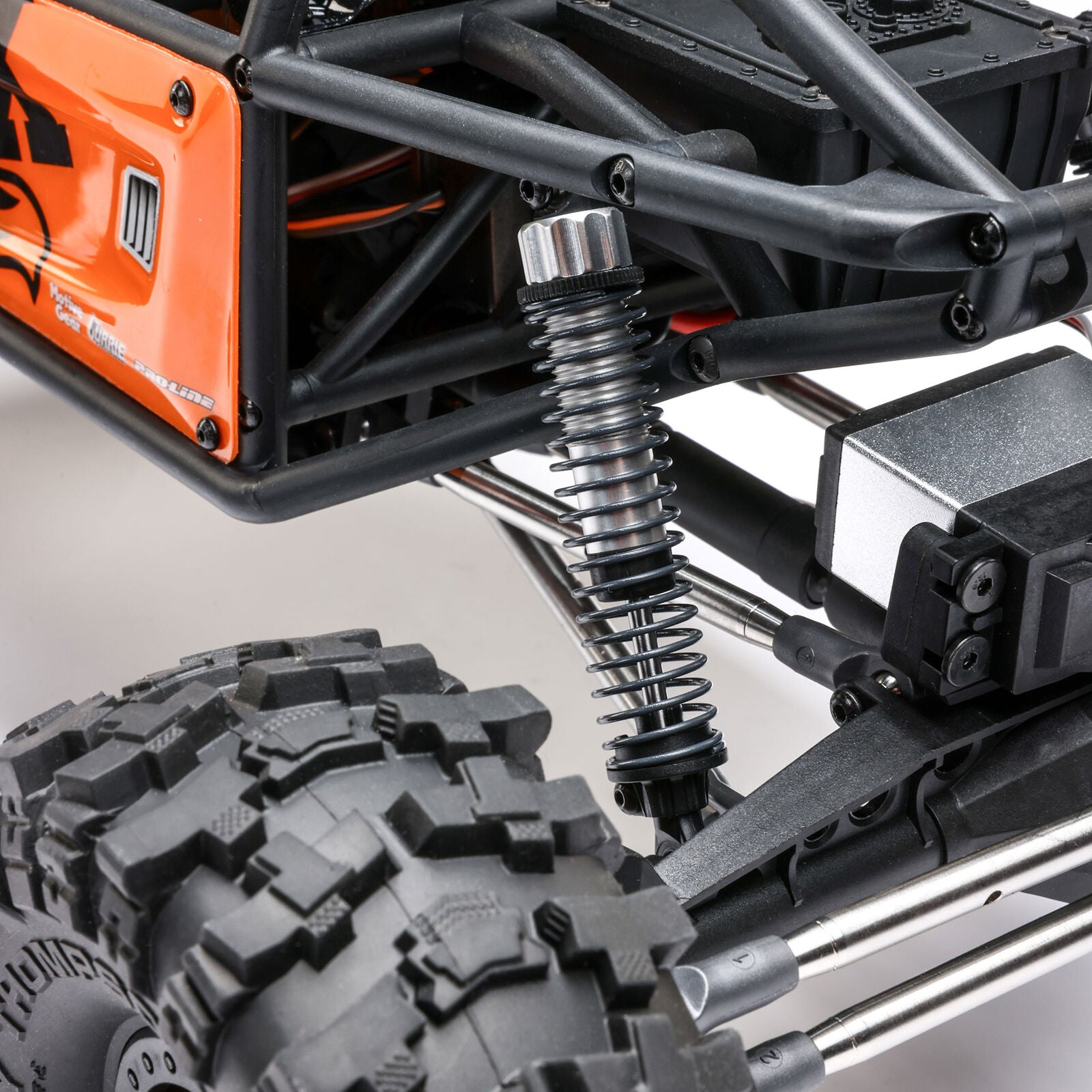

Aluminium oil-filled shocks
Axial 540 motor

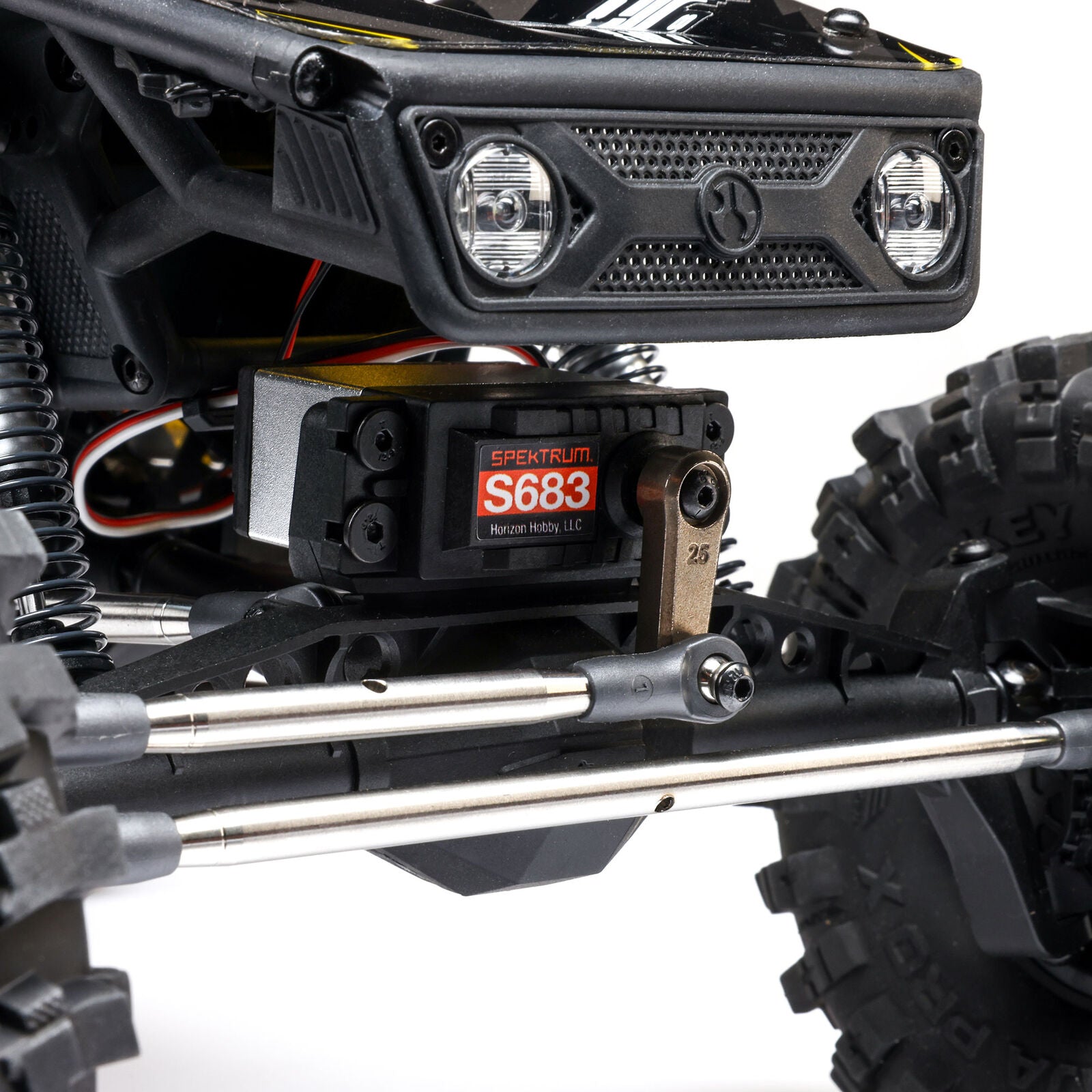

Spektrum S683 25T waterproof metal gear steering servos
Spektrum Firma 40A brushed waterproof ESC
Spektrum SR515 DSMR 5-channel receiver
Spektrum DX3 2.4GHz transmitter
Ready-to-run — just add battery and charger

More Information

The Axial UTB10 Capra 1.9 4WS 4X4 Unlimited Trail Buggy isn't for overlanding or Sunday drives. This is a true rock crawler, meant for the most challenging trails and obstacles. It's the Axial rig that set the standard for 1/10 scale trail buggies — and now, it has raised the bar once again.

Highlighting this next-level 1/10 scale trail buggy is an all-new transmission with lower gearing for even better crawling capabilities. That feature joins many others — including 4-wheel steering, portal axles, Spektrum electronics, and Pro-Line OE (Original Equipment) tyres and wheels — to make the Capra superior to its competition in every possible way. This rig is ready for any trail, obstacle, or hill. It's a crawler that doesn't compromise.

This updated Capra has an improved final drive ratio of 45.37:1 (6.31 internal) compared to 31.4:1 (4.37 internal). This is 45% lower than the previous model, vastly improving the climbing ability and power of this rig.

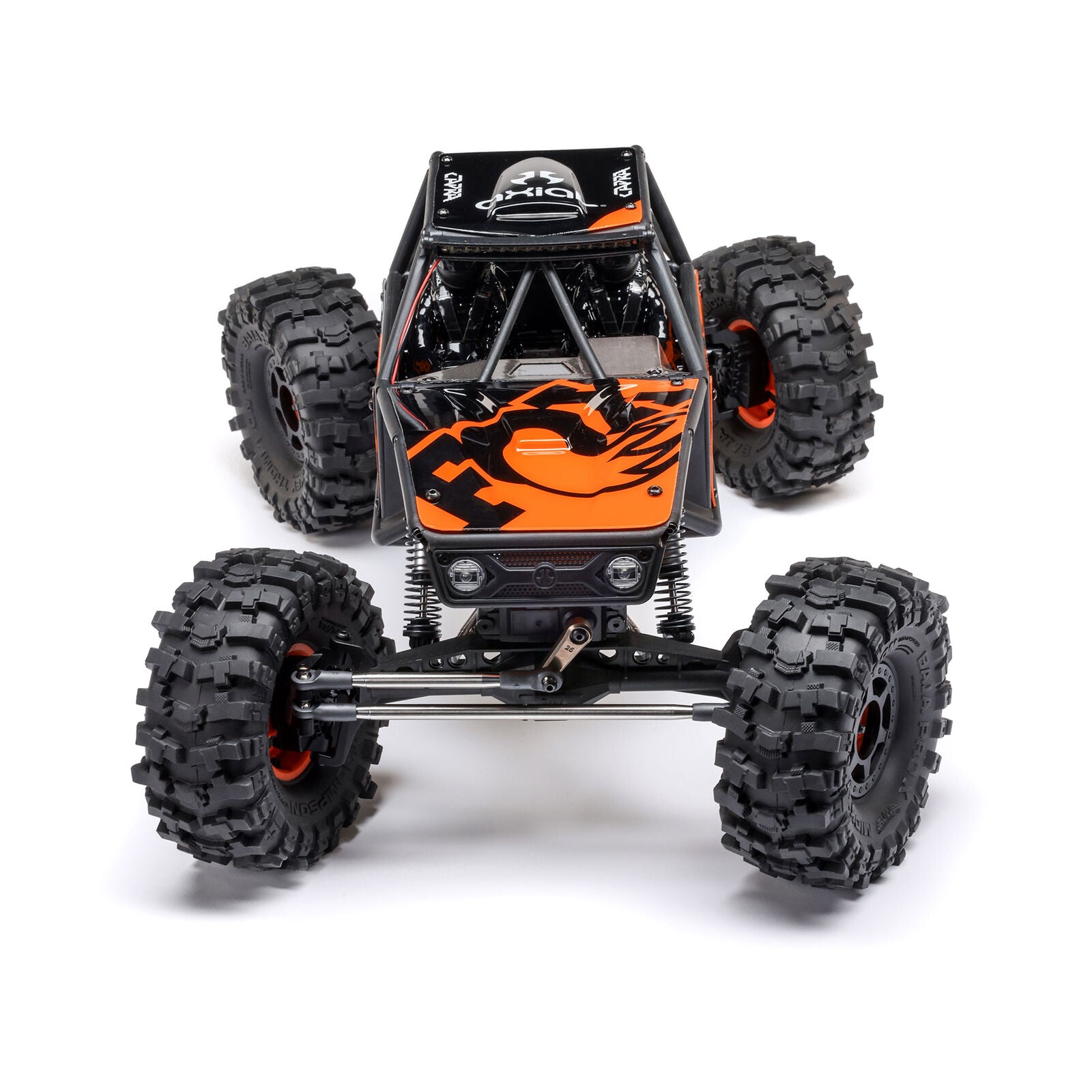

The Capra's 4-wheel steering (4WS) is such an advantage compared to 2-wheel steering (2WS) crawlers that it may almost feel like cheating! Using the third channel button of the included Spektrum DX3 transmitter, you can steer the rear axle full left, straight, and full right to position the tyres perfectly for conquering obstacles. The user can programme the DX3 to enable a 5-position rear steer switch for even more tunability. In full-scale crawling competition, such subtle manoeuvring is a must to avoid losing points from reversing or hitting a marker on the course. With the Capra, you experience more true rock crawling realism.

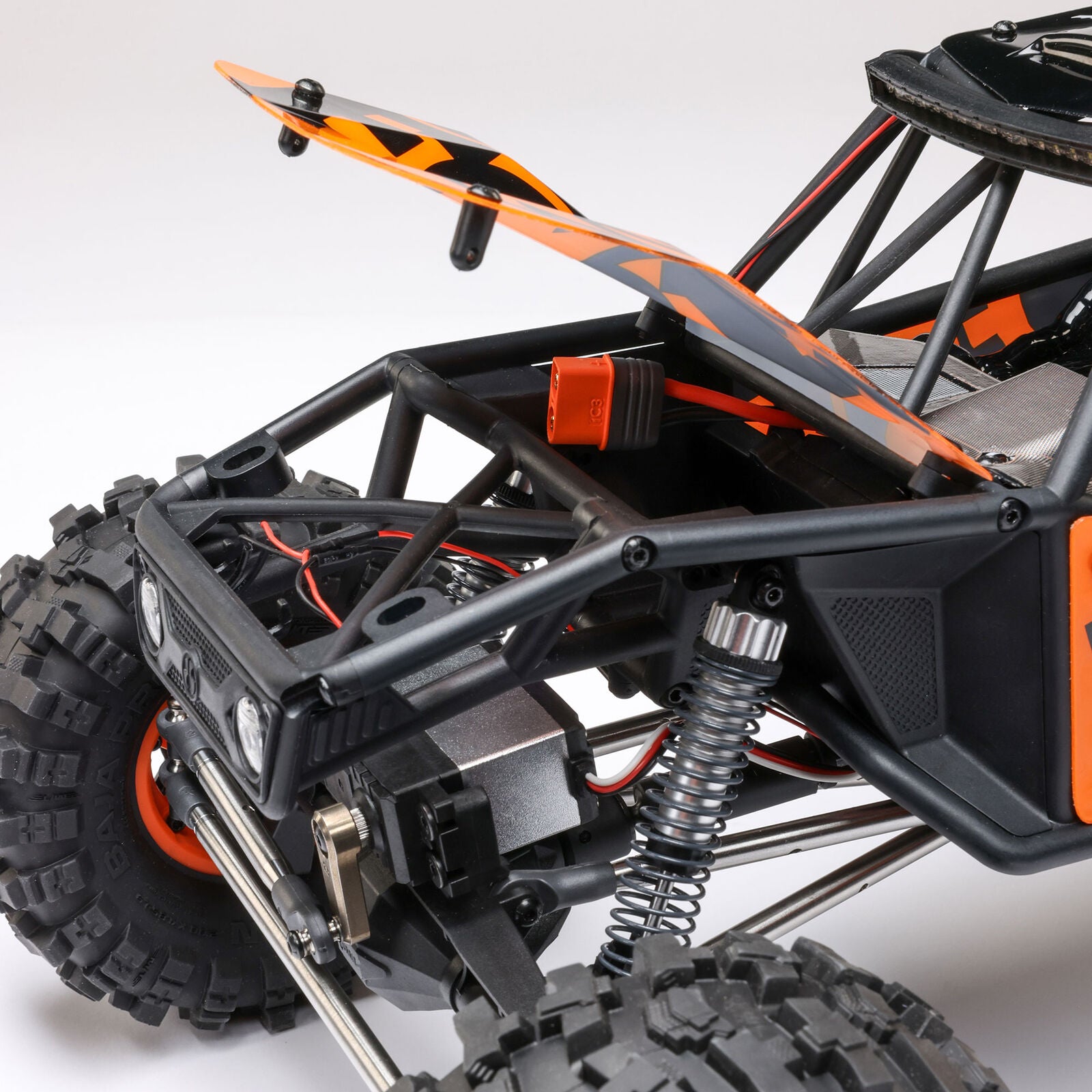

The Capra's tube chassis not only looks like a real trail buggy, but is optimised for suspension and tyre clearance. Licensed Currie F9 Portal Axles also increase ground clearance while turning the scale Pro-Line OE Holcomb 1.9 wheels and Pro-Line OE Mickey Thompson Baja Pro X tyres. The tyres feature aggressive tread for out-crawling the competition. Dual stage, open cell foam inserts are included, with soft outer foam and firm inner foam to improve grip and sidewall support. Both axles feature metal universals for a smooth, efficient, and durable drivetrain.

Nothing more is needed to complete the ready-to-run Capra except your choice of battery and charger. The included Spektrum DX3 transmitter is fully compatible with the Smart telemetry potential of the rig's Spektrum Firma 40A ESC and Spektrum SR515 DSMR 5-channel receiver. The electronics are protected by a waterproof and dustproof design.

It wasn't easy making the best even better, but Axial has done exactly that. Don't settle for a look-a-like copy. Get the rig that set the bar for 1/10 trail buggies and has now raised it again — the Axial UTB10 Capra 1.9 4WS 4X4 Unlimited Trail Buggy.

Specifications

Approximate Assembly Time: No assembly required
Ball Bearings: Complete vehicle
Battery: Sold Separately
Body: Screened, Polycarbonate
Charger: Sold Separately
Chassis: Injection Molded Tubular
Completion Level: Ready-To-Run
Connector Type: EC3, IC3
Differential: Locked
Drive Type: Forward/Brake/Reverse
Drivetrain: 4WD
Final Drive Ratio: 45.37:1
Front Track: 225.3 mm (8.87")
Gear Pitch: 32-Pitch
Ground Clearance: 84.65 mm (3.33")
Inner Tyre / Outer Wheel Diameter: 1.9"
Internal Gear Ratio: 6.31:1
LiPo Compatibility: 2S, 3S
Motor Size: 540
Motor Type: Brushed
Pinion: 14T
Power Type: Electric
Product Height: 229 mm (9")
Product Length: 442 mm (17.4")
Product Weight: 2.04 kg (4.5 lb)
Product Width: 272 mm (10.7")
Radio: Included
Rear Track: 225.3 mm (8.87")
Receiver: Included
Scale: 1/10
Servos: Included
Shock Type: Aluminium Oil-Filled / Coil-Over Spring
Speed Control: Included
Steering Type: 4WS
Suspension: 4-Link Solid Axle
Tyre Compound: Soft
Tyre Tread: Pro-Line OE Licensed Mickey Thompson Baja Pro X
Track Surface: All-Terrain / Backyard
Vehicle Size: Standard
Vehicle Type: Rock Crawler, Trail Buggy
Wheel Width: 25.4 mm (1")
Wheelbase: 323 mm (12.7")
