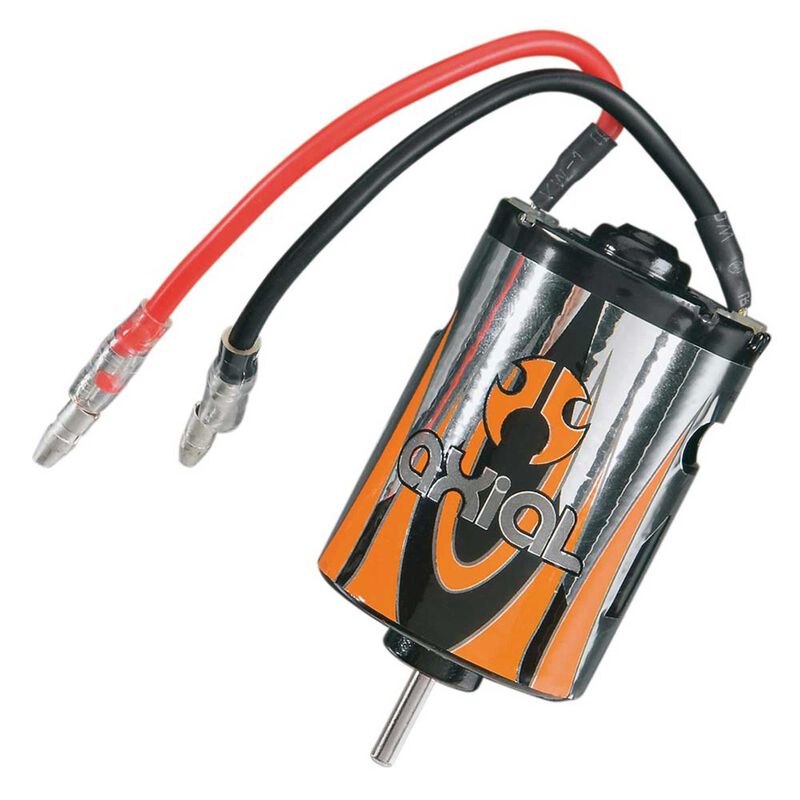

AX24007 55T Electric Motor

The Axial 55-turn 540-size brushed motor (model AXIC2407 / AX24007) is purpose-built for rock crawling. It delivers smooth, low-speed torque and refined control—perfect for navigating tough terrain with precision.

Features

• 55-turn brushed winding—enhances low-speed crawl control and torque
• Sealed brushed inrunner—durable and low-maintenance
• Convenient 3 mm bullet connector—ready for plug-and-play setup
• Robust bushing-supported design—handles rugged crawler applications

Included in Box

• Axial 55T brushed motor (AXIC2407 / AX24007)

Recommended Integration

• Axial AX10 RTR or similar 1/10-scale rock crawler chassis
• Standard 540 motor mount and appropriate pinion gear

Specifications

• Turns: 55T brushed motor
• Voltage: Up to 12 V (minimum 4-cell battery)
• Outer Can Size: 36 mm diameter × 52 mm length
• Shaft Diameter: 3.2 mm (approx. 1/8") × ~12.5 mm length
• Weight: ~164 g
• Connector: 3 mm bullet
