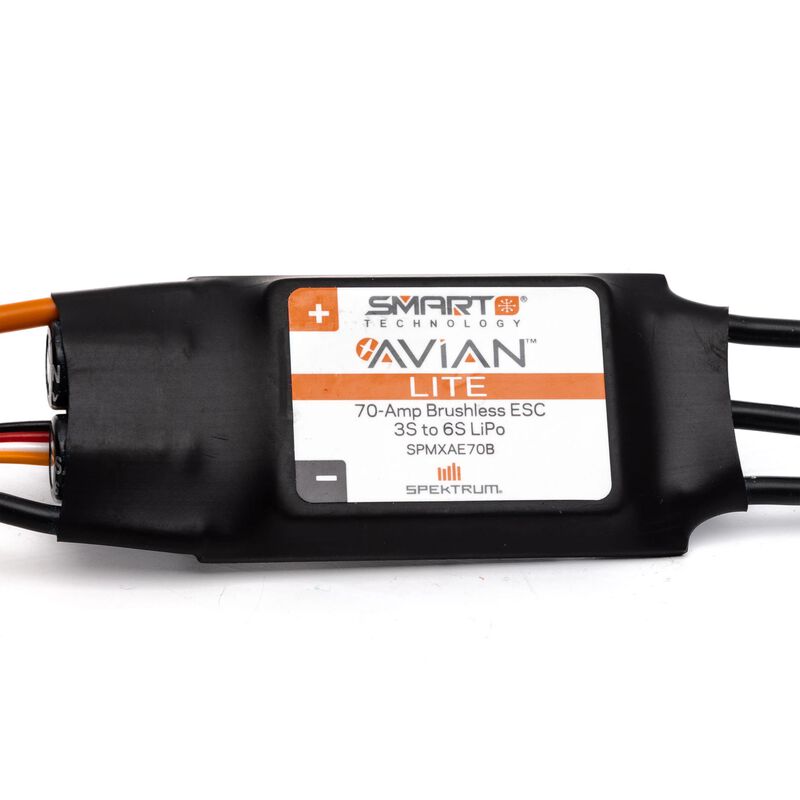

Avian 70-Amp Smart Lite Brushless ESC 3S-6S IC3

The Avian 70-amp Smart ESC offers efficient, reliable power for a wide range of fixed-wing models and helis. With Smart technology built in, it delivers real-time telemetry, precise throttle control, and multiple programming options, all in a robust, compact design.

Features

• Integrated Smart technology with one-wire telemetry for voltage, current, temperature, cell data, and RPM
• 32-bit ARM processor for smooth and accurate throttle response
• Multiple programming methods: throttle stick, optional Programming Box, or SmartLink USB PC app
• On-transmitter programming with compatible Smart radio and receiver
• Selectable thrust reversing function (Smart radio/receiver required)
• High-efficiency MOSFET design for improved thermal performance
• IC5 battery connector (compatible with EC5)
• Multiple protection modes: over-current, over-temperature, low-voltage cut-off, failsafe

What’s in the box

• Avian 70-amp Smart ESC (IC5 battery lead, 4 mm motor bullets)
• Smart decal sheet
• Product manual

Needed to complete

• Aircraft receiver (Smart/SRXL2 compatible recommended)
• 3S–8S LiPo battery (IC5/EC5 compatible)
• Compatible transmitter

Specifications

• Application: Air (aeroplane/heli)
• Input voltage: 3S–8S LiPo (max 29.6 V)
• Maximum continuous current: 70 A
• Maximum burst current: 90 A
• BEC type: Switch-mode
• BEC voltage: 6.0 V / 7.2 V (selectable)
• BEC current (continuous/peak): 8 A / 20 A
• Battery connector: IC5 (EC5 compatible)
• Motor leads: 4 mm bullets
• Brakes / forward: Yes / Yes (programmable)
• Adjustable timing: Yes
• Low-voltage cut-off: Programmable
• Telemetry: Smart one-wire (SRXL2)
