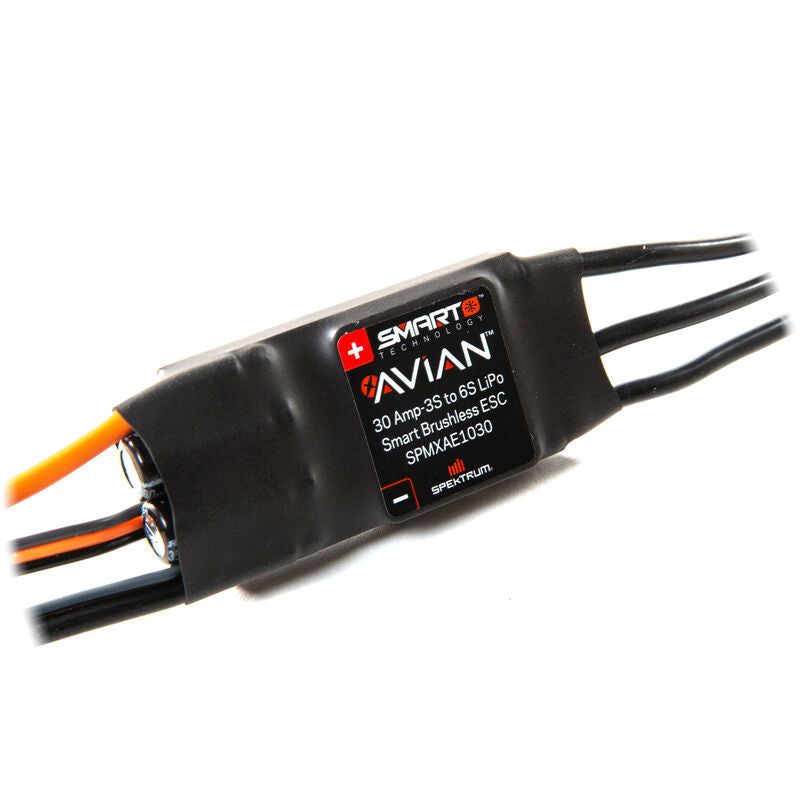

Avian 30-Amp Brushless Smart ESC 3S-6S

The Avian 30-amp Smart ESC is a lightweight, efficient solution for small to medium-sized fixed-wing aircraft and helicopters. It features built-in Smart telemetry, smooth throttle response, and flexible programming options in a compact package.

Features

• Integrated Smart technology with one-wire telemetry for real-time voltage, current, temperature, cell data, and RPM
• 32-bit ARM processor for precise throttle control
• Multiple programming methods: throttle stick, optional Programming Box, or SmartLink USB PC app
• On-transmitter programming with compatible Smart radio and receiver
• Selectable thrust reversing (requires Smart radio/receiver)
• Efficient MOSFET design for reduced heat and improved reliability
• IC3 battery connector (compatible with EC3)
• Full protection suite: over-current, over-temperature, low-voltage cut-off, failsafe

What’s in the box

• Avian 30-amp Smart ESC (IC3 battery lead, 3.5 mm motor bullets)
• Smart decal sheet
• Product manual

Needed to complete

• Aircraft receiver (Smart/SRXL2 compatible recommended)
• 3S–6S LiPo battery (IC3/EC3 compatible)
• Compatible transmitter

Specifications

• Application: Air (aeroplane/heli)
• Input voltage: 3S–6S LiPo (max 22.2 V)
• Maximum continuous current: 30 A
• Maximum burst current: 40 A
• BEC type: Switch-mode
• BEC voltage: 6.0 V / 7.2 V (selectable)
• BEC current (continuous/peak): 3 A / 8 A
• Battery connector: IC3 (EC3 compatible)
• Motor leads: 3.5 mm bullets
• Brakes / forward: Yes / Yes (programmable)
• Adjustable timing: Yes
• Low-voltage cut-off: Programmable
• Telemetry: Smart one-wire (SRXL2)
