Spektrum

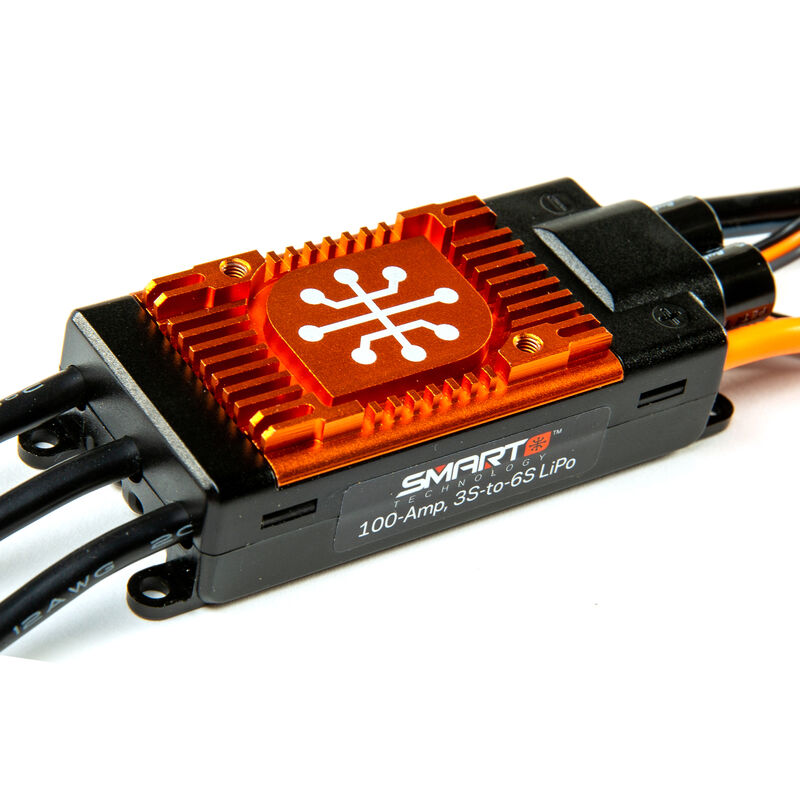

Avian 100-Amp Brushless Smart ESC 3S-6S
Avian 100-Amp Brushless Smart ESC 3S-6S
SKU:SPMXAE1100
Share
The Avian 100A Smart ESC delivers high current capacity and smooth throttle performance for large fixed-wing aircraft and helicopters. With built-in Smart telemetry and a robust design, it provides both reliability and advanced features for demanding pilots.
Features
- Integrated Smart technology with one-wire telemetry for real-time voltage, current, temperature, cell data, and RPM
- High-performance 32-bit ARM processor for precise throttle control
- Multiple programming methods: throttle stick, optional Programming Box, or SmartLink USB PC app
- On-transmitter programming with compatible Smart radio and receiver
- Selectable thrust reversing (requires Smart radio/receiver)
- Efficient MOSFET design for reduced heat and improved reliability
- IC5 battery connector (compatible with EC5)
- Comprehensive protection: over-current, over-temperature, low-voltage cut-off, failsafe
What’s in the box
- Avian 100A Smart ESC (IC5 battery lead, 4 mm motor bullets)
- Smart decal sheet
- Product manual
Needed to complete
- Aircraft receiver (Smart/SRXL2 compatible recommended)
- 3S–6S LiPo battery (IC5/EC5 compatible)
- Compatible transmitter
Specifications
- Application: Air (aeroplane/heli)
- Input voltage: 3S–6S LiPo (max 22.2 V)
- Maximum continuous current: 100 A
- Maximum burst current: 120 A
- BEC type: Switch-mode
- BEC voltage: 6.0 V / 7.2 V (selectable)
- BEC current (continuous/peak): 8 A / 20 A
- Battery connector: IC5 (EC5 compatible)
- Motor leads: 4 mm bullets
- Brakes / forward: Yes / Yes (programmable)
- Adjustable timing: Yes
- Low-voltage cut-off: Programmable
- Telemetry: Smart one-wire (SRXL2)
