ARRMA 1/8 TYPHON 6S

Designed for speed and built tough, the ARRMA TYPHON 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills — with a Spektrum SLT3 radio, dual protocol receiver, Smart ESC, stronger servo, and more.

Parts and accessories

In the Box

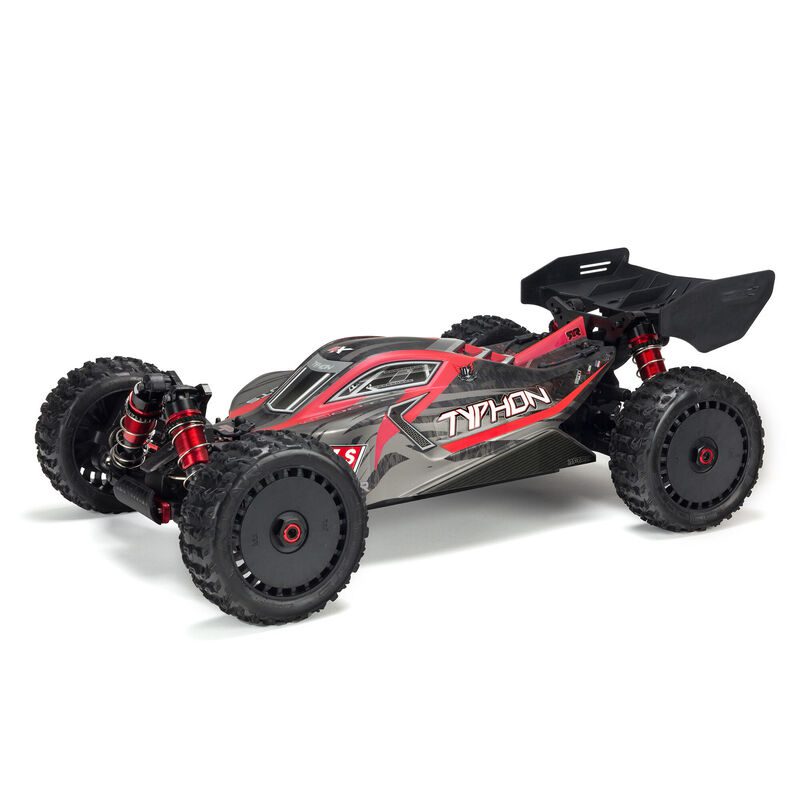

(1) ARRMA TYPHON 6S BLX 1/8 scale 4WD Speed Buggy RTR
(1) Spektrum Firma 150A Smart 4S/6S ESC (installed)
(1) Spektrum S652 metal-geared digital servo (installed)
(1) Spektrum SR315 3-channel dual protocol receiver (installed)
(1) Spektrum SLT3 2.4GHz 3-channel radio

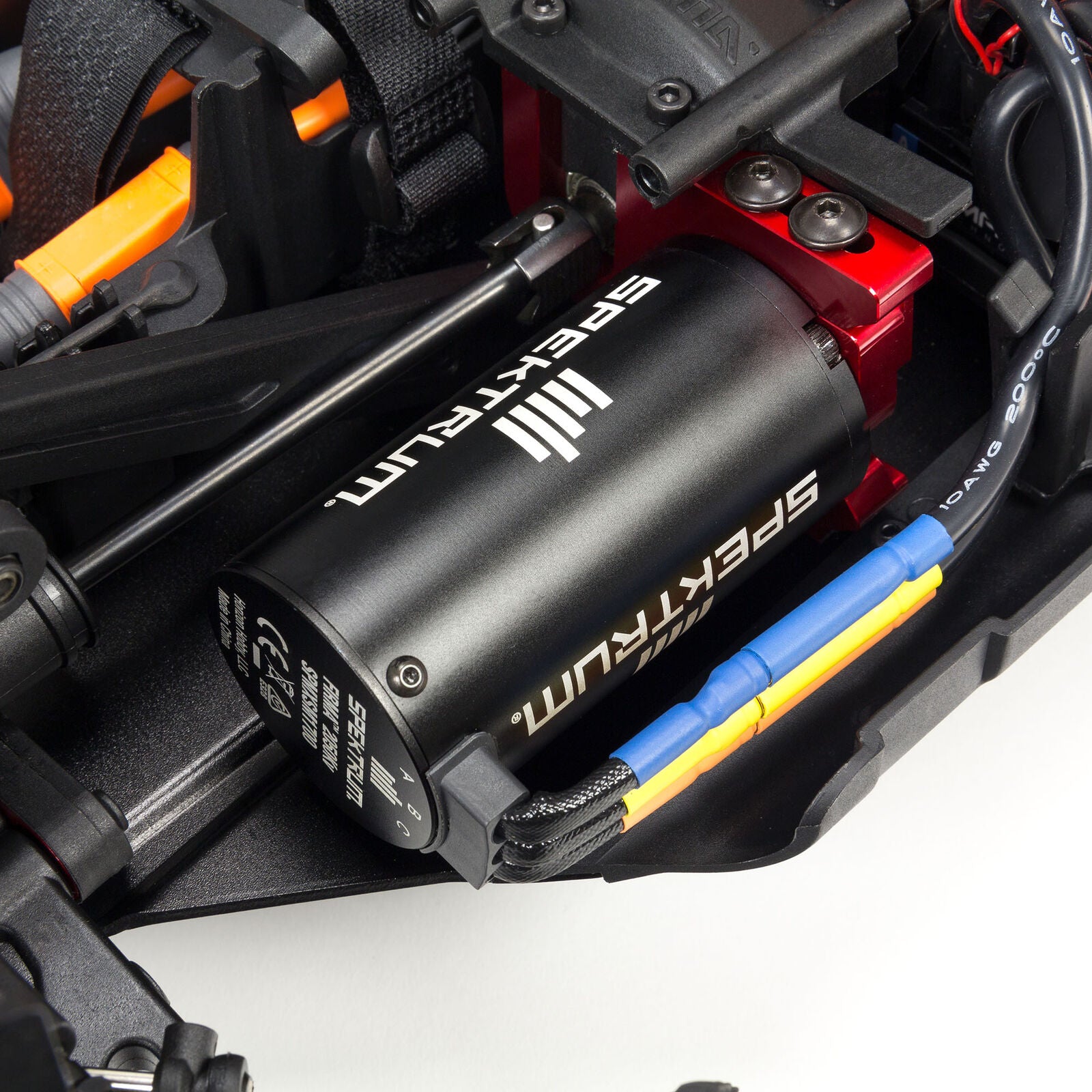

(1) Spektrum Firma 4074 2050Kv brushless motor
(1) 1/8 TYPHON 6S V5 4WD BLX manual

Needed to Complete

(2) 2S–3S LiPo batteries or (1) 4S–6S LiPo battery with EC5 or IC5 connector (6S softpack only)
(1) Compatible battery charger
(4) AA batteries for transmitter

Features

Ready-to-run
Spektrum SLT3 2.4GHz 3-channel radio
Spektrum SR315 dual protocol 3-channel receiver
Spektrum S652 digital servo

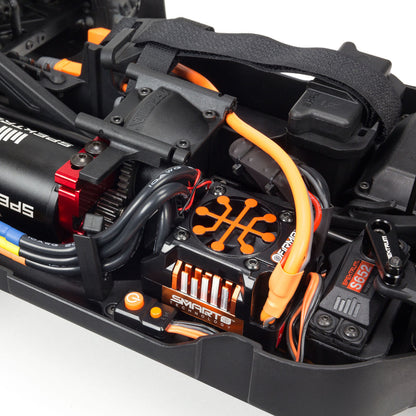

Spektrum Firma 150A Smart ESC
Spektrum Firma 4074 2050Kv brushless motor
EXB-compatible front brace
Stronger chassis design

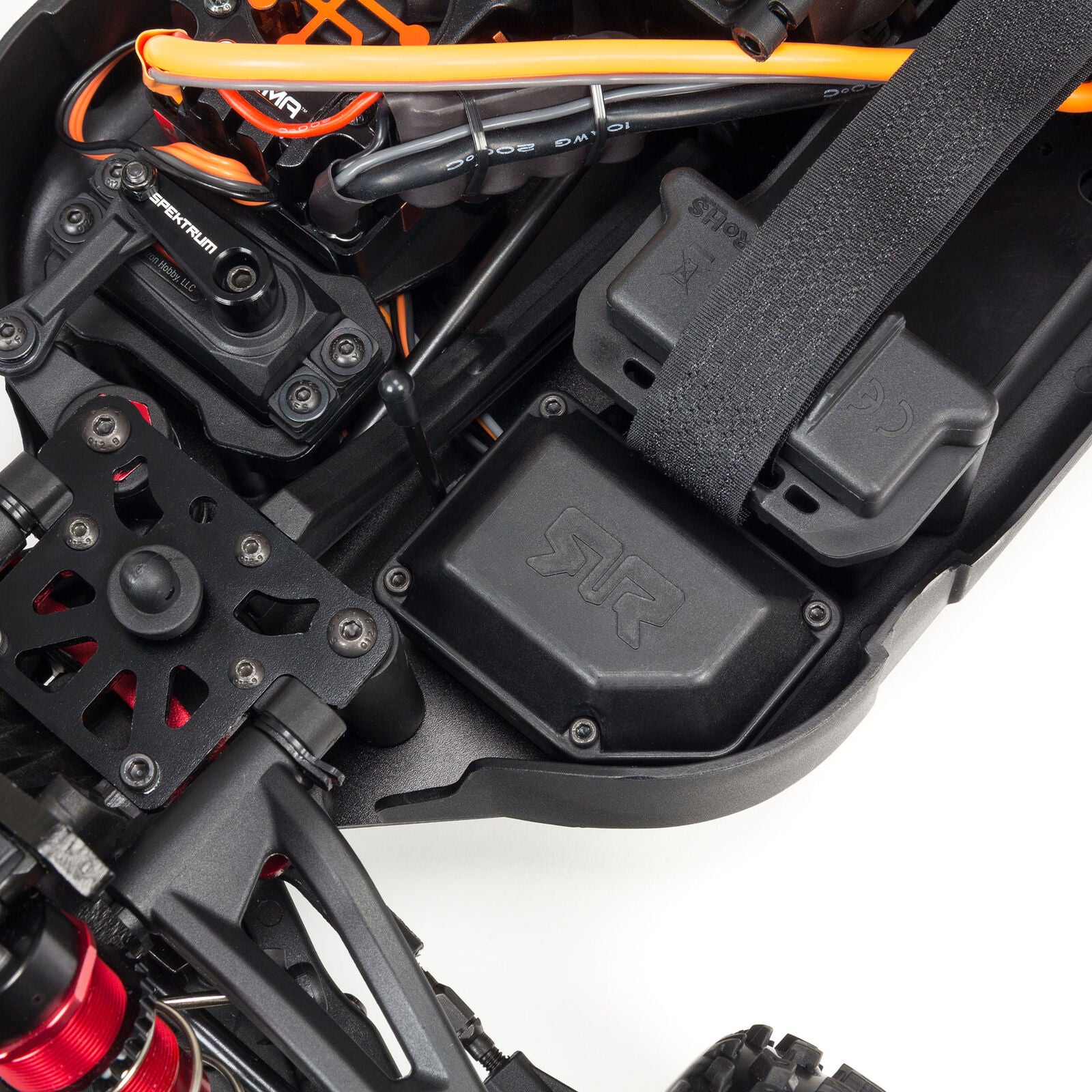

Large-volume waterproof receiver box
+1 mm wheel hexes
Anodised aluminium chassis
Strong composite chassis side pods
Strong front and rear composite chassis brace
High-speed low downforce wing with strong mounts
Oil-filled adjustable shocks
Aluminium shock caps and protectors
Black anodised aluminium front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminium servo saver
Never-pop ball ends
4-bolt centre diff removal
Easy-access sliding motor mount for quick motor removal

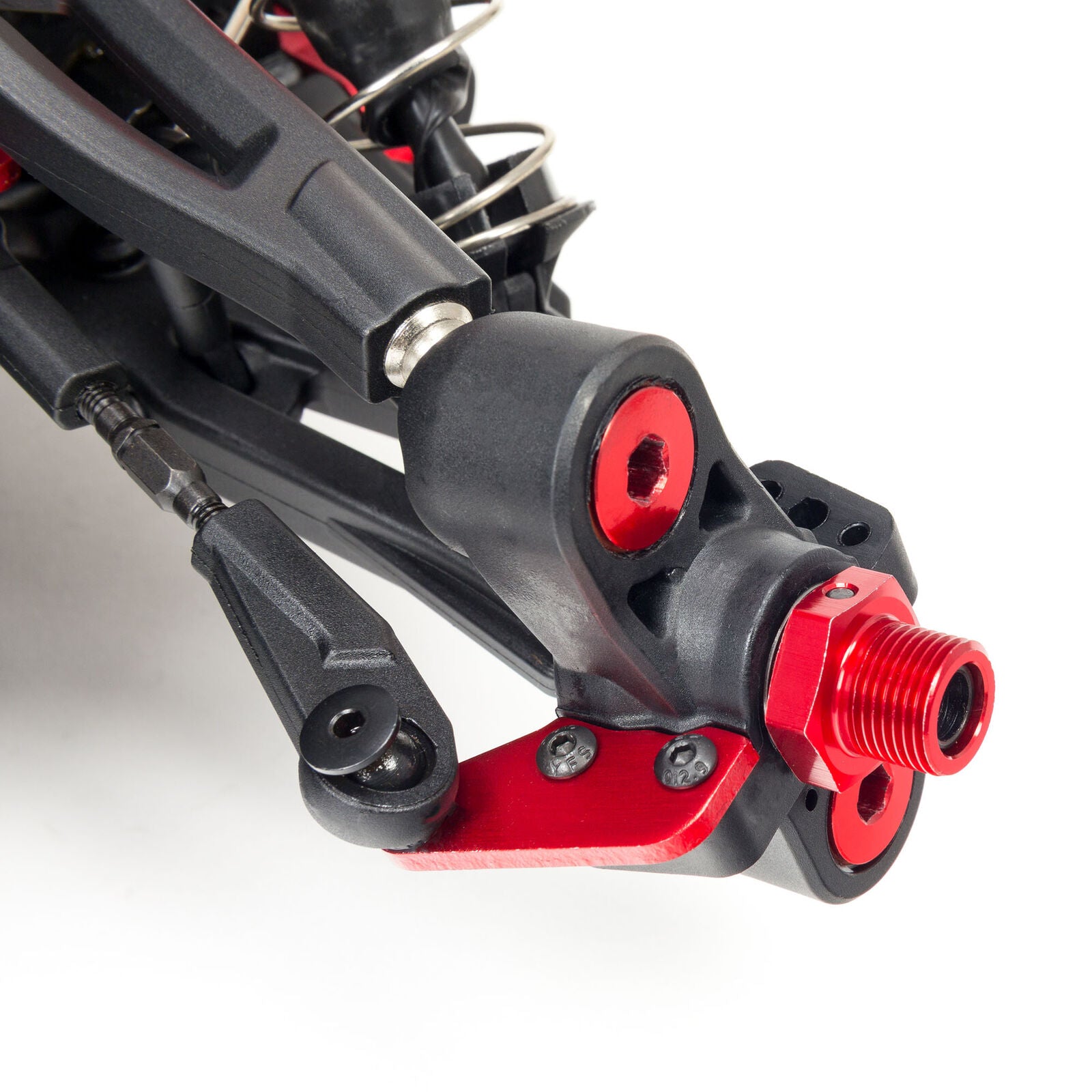

Super-durable wheel hubs for increased strength
Low-drag wheels
Multi-terrain dBoots KATAR tyres
Forged composite-style matte paint scheme
IC5 connectors (EC5 compatible)
2-year limited warranty (see manual for details)

For details on waterproof standards, please refer to the product instruction manual

More Information

Experience a thrilling new level of bashing performance with the 1/8 scale ready to run ARRMA TYPHON 6S BLX 4WD Speed Buggy. Designed fast designed tough and now outfitted with a versatile Spektrum 3 channel radio system and Firma brushless electronics it is all set for fast action on all terrain in all conditions.

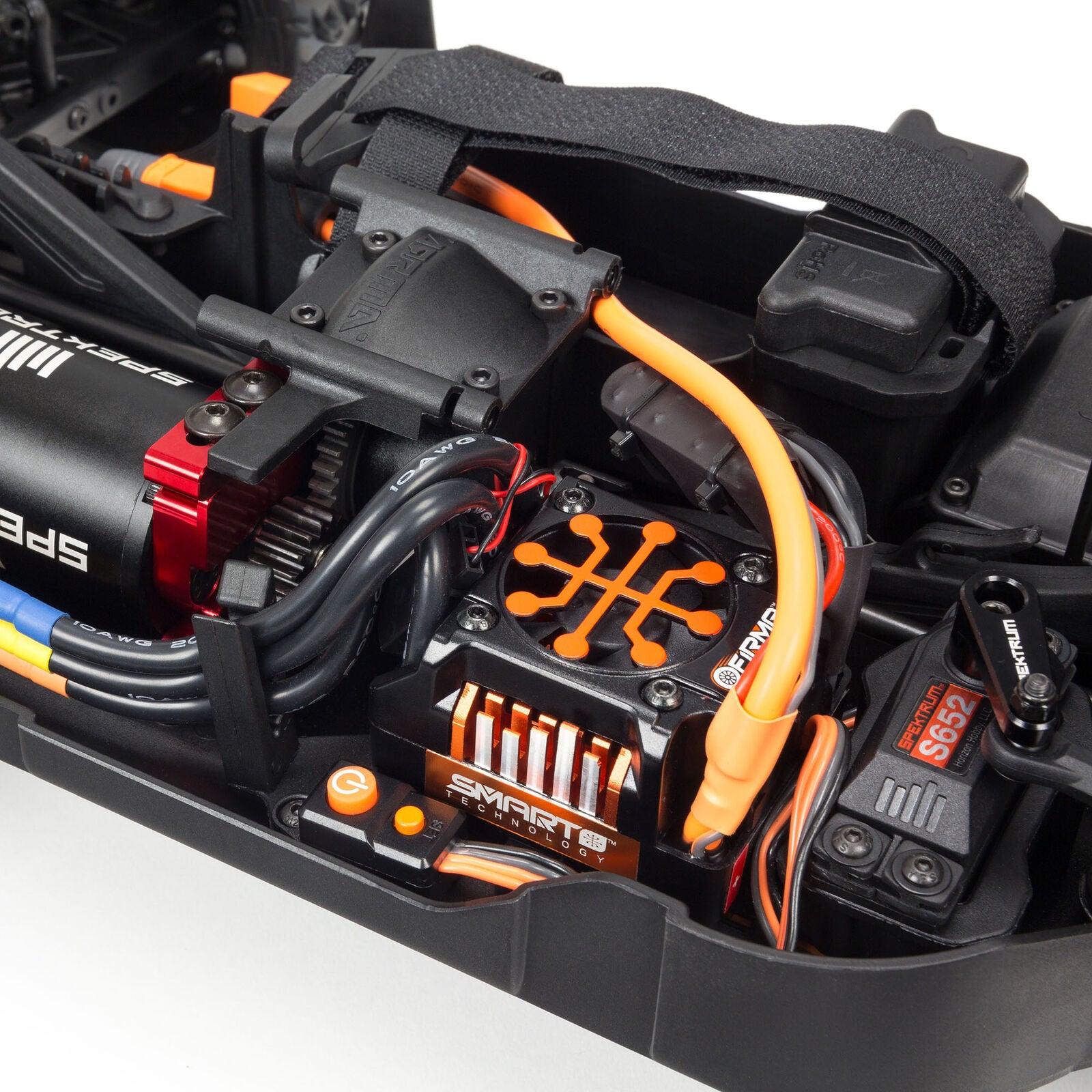

ARRMA engineers have updated the TYPHON 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque acceleration and speed while the heavy duty aluminium and steel chassis and transmission components take it all in their stride. For improved steering ARRMA also includes a new steel gear Spektrum S652 Digital Servo which is 32 percent stronger and 5 percent faster than the previous version’s ADS 15M servo.

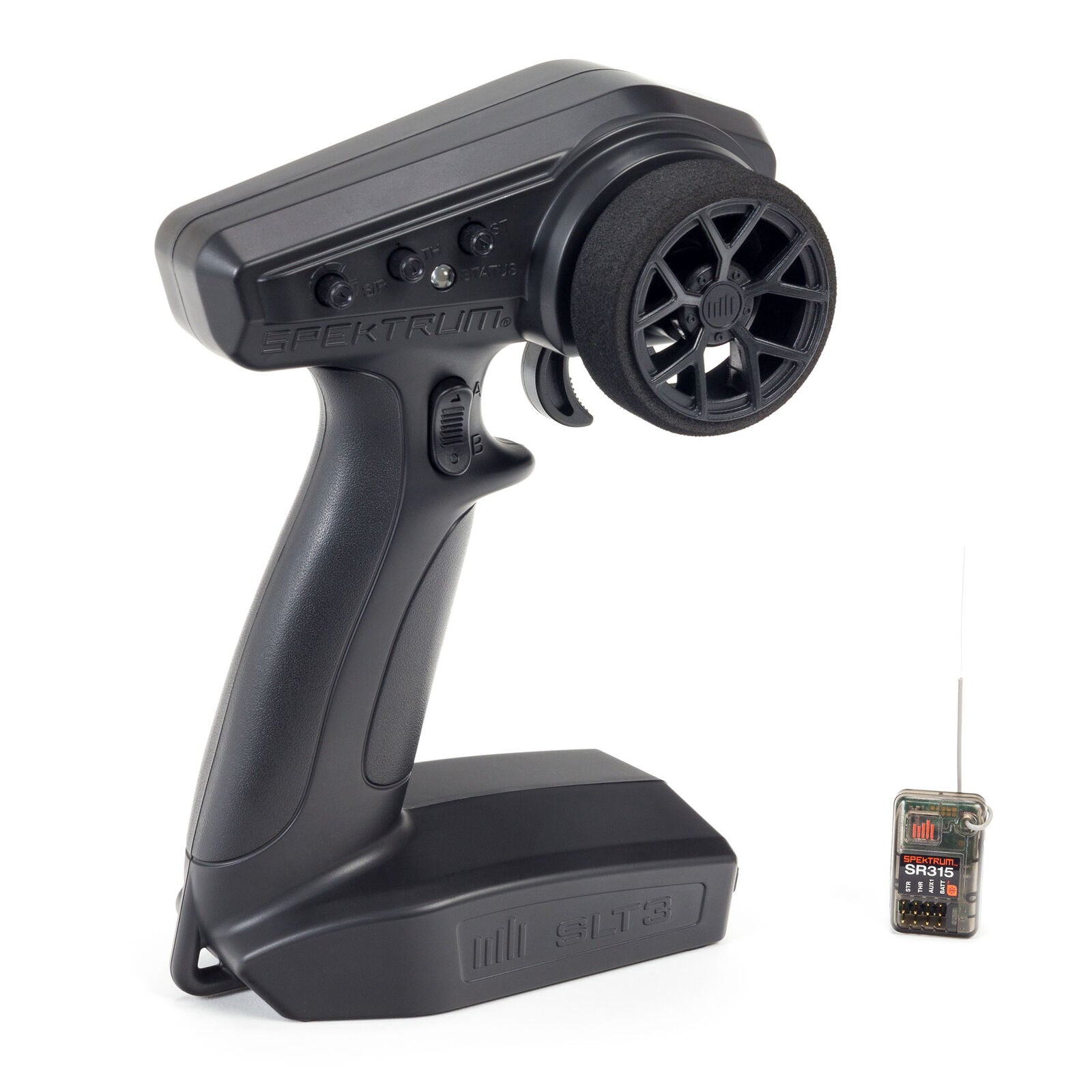

The ready to run package now also includes a 3 channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue free bashing the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you are a new driver you will be able to set throttle limits at 50 percent or 75 percent until you are ready to use the full speed potential. The SLT3 is compatible with Tactic SLT receivers to run other RTR vehicles you may own and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR protocols you can easily upgrade to a Spektrum DSMR transmitter later then download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You will be able to receive real time updates of ESC temperature receiver BEC voltage drive pack voltage and motor RPM.

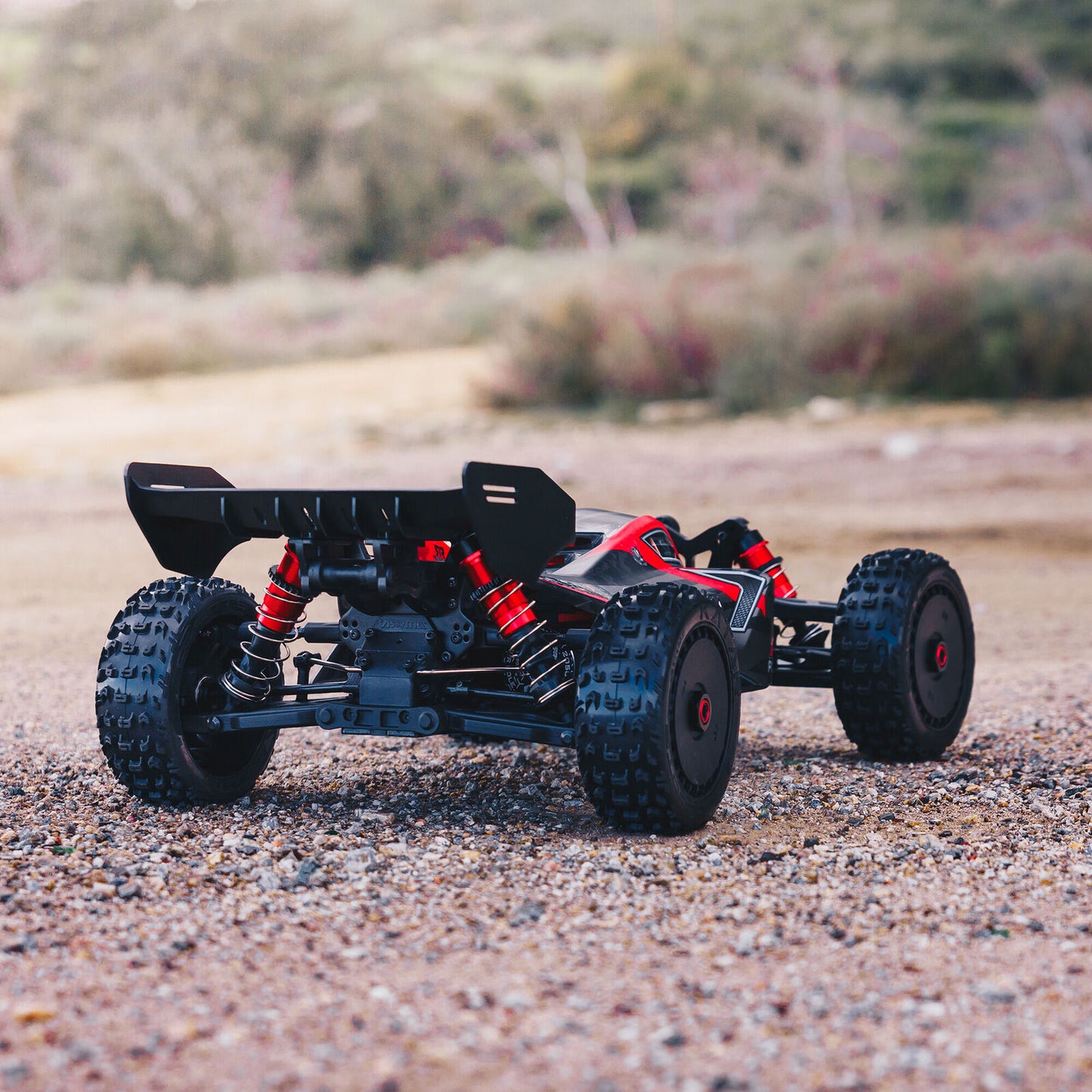

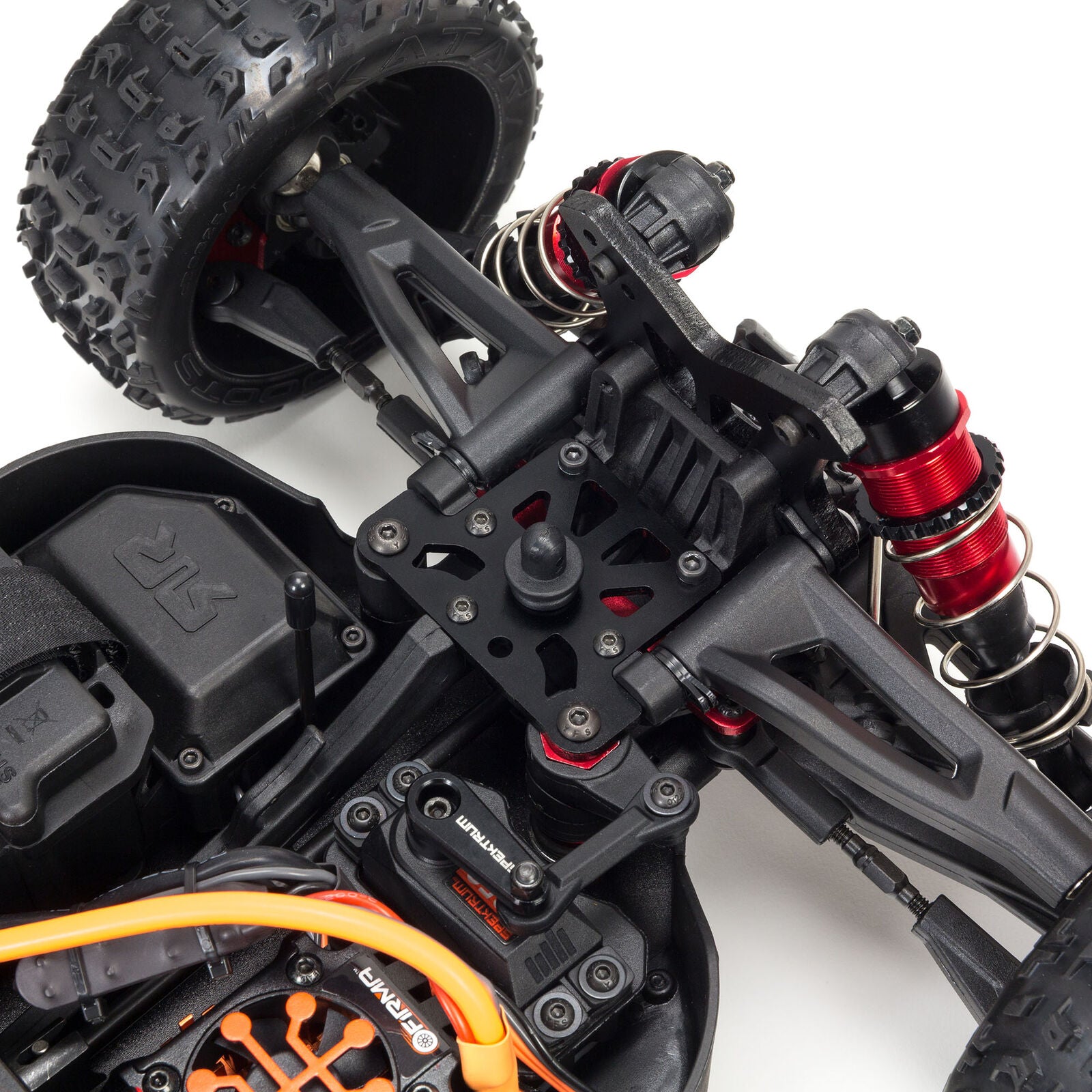

The TYPHON 6S BLX 4WD Speed Buggy blasts over dirt asphalt and grass with adjustable oil filled shocks soaking up the bumps. The shocks are mounted on black anodised aluminium towers and include aluminium shock caps and protectors to maintain their super smooth damping.

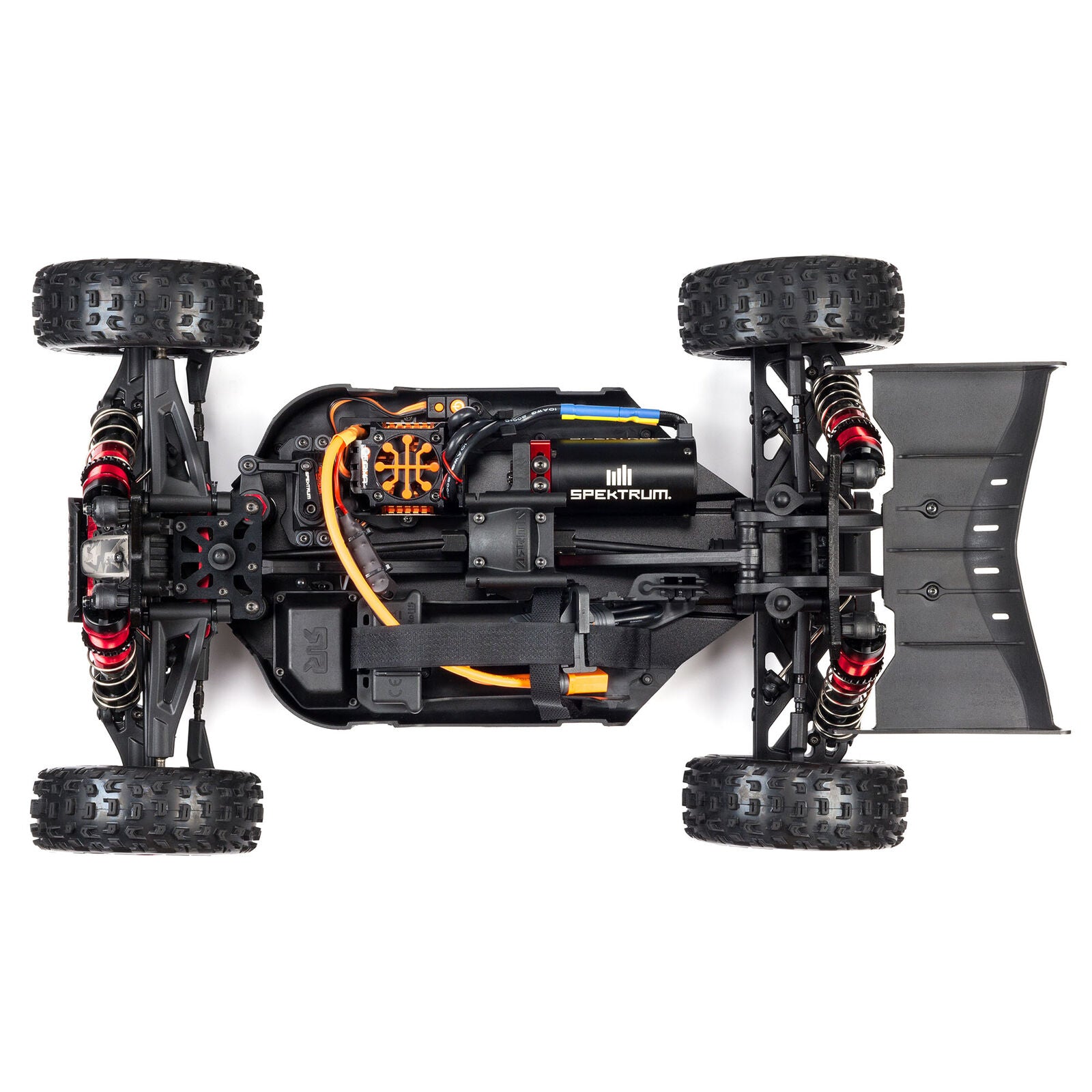

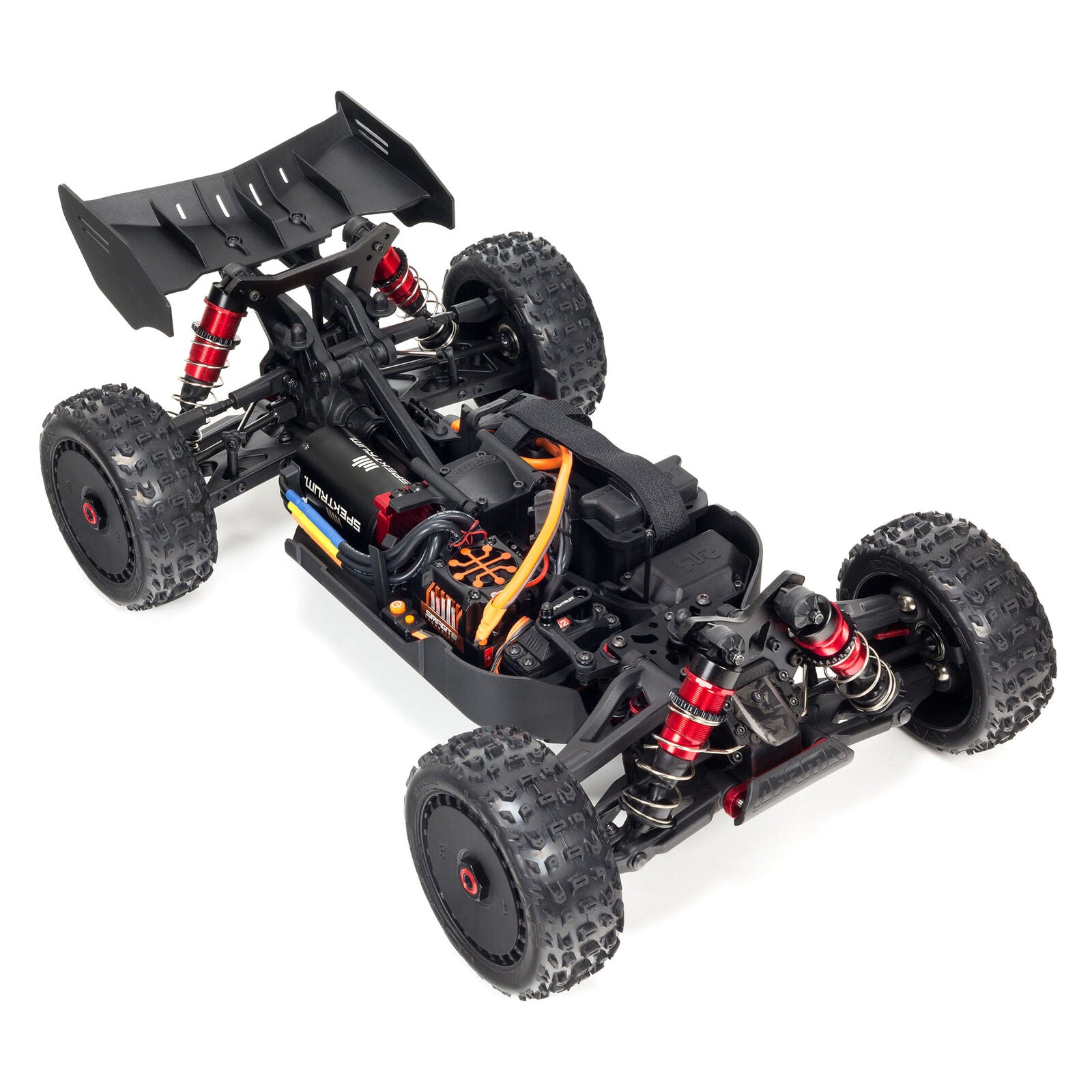

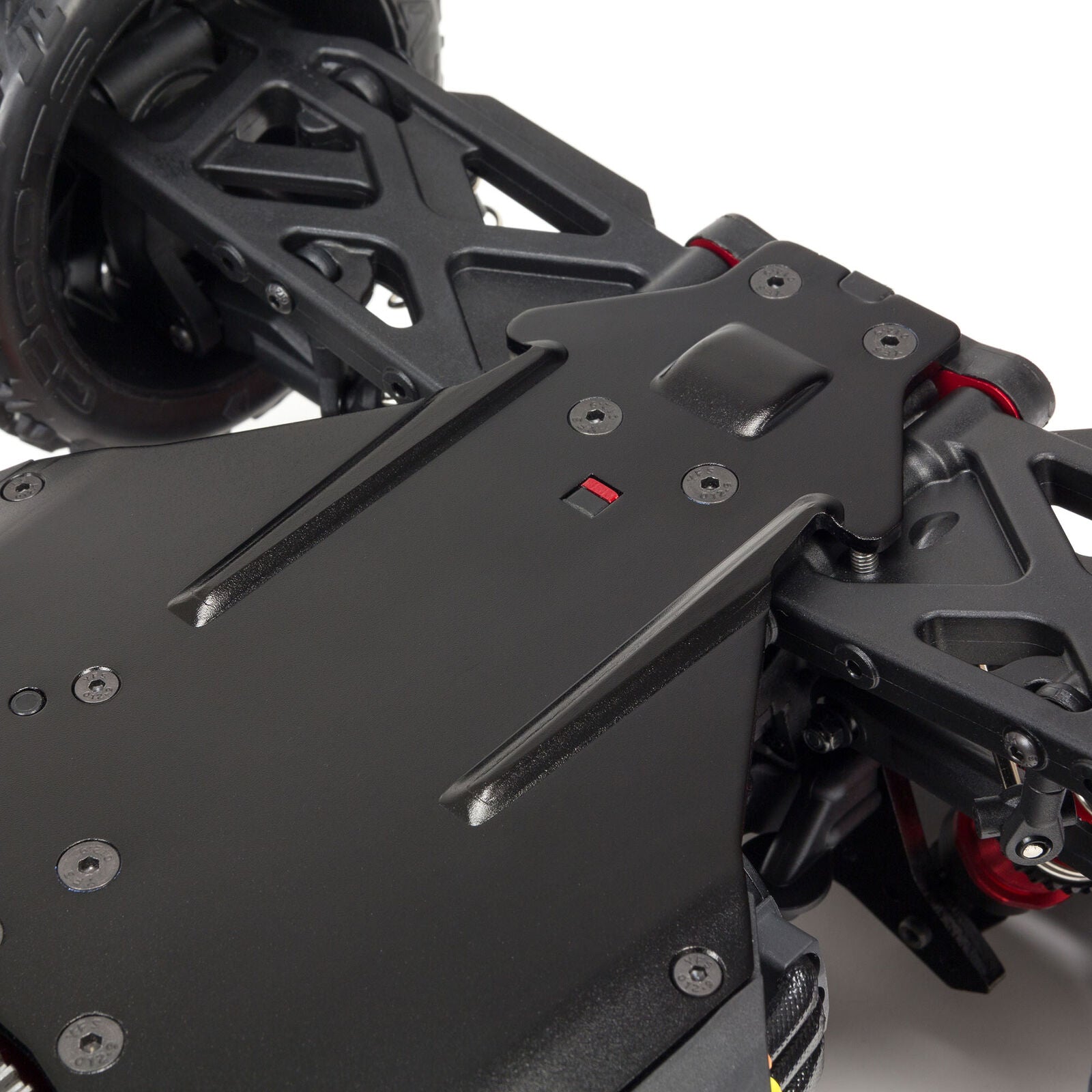

For the durability needed to support intense brushless performance ARRMA uses a strengthened anodised aluminium chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All metal diff outdrives and gearbox internals plus durable steel driveshafts all contribute to a reliable heavy duty drivetrain that holds up to extreme bashing. A never loose aluminium steering servo saver and never pop ball ends supply more precision reliability and confidence.

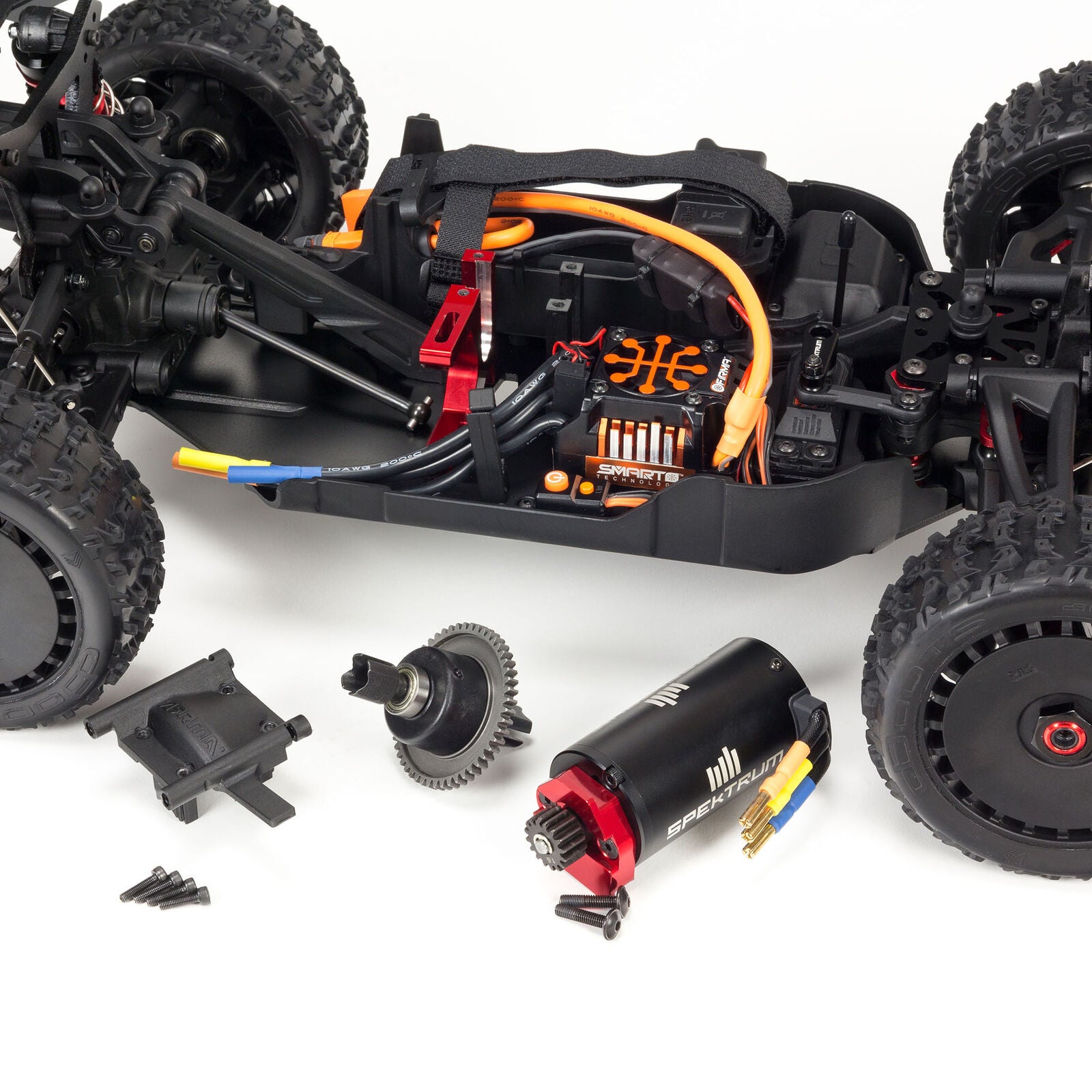

ARRMA holds your maintenance downtime to the minimum with an efficient driver friendly design. A sliding mount gives you quick hassle free access to the motor. The centre diff is easy to reach and can be removed by taking out just four bolts.

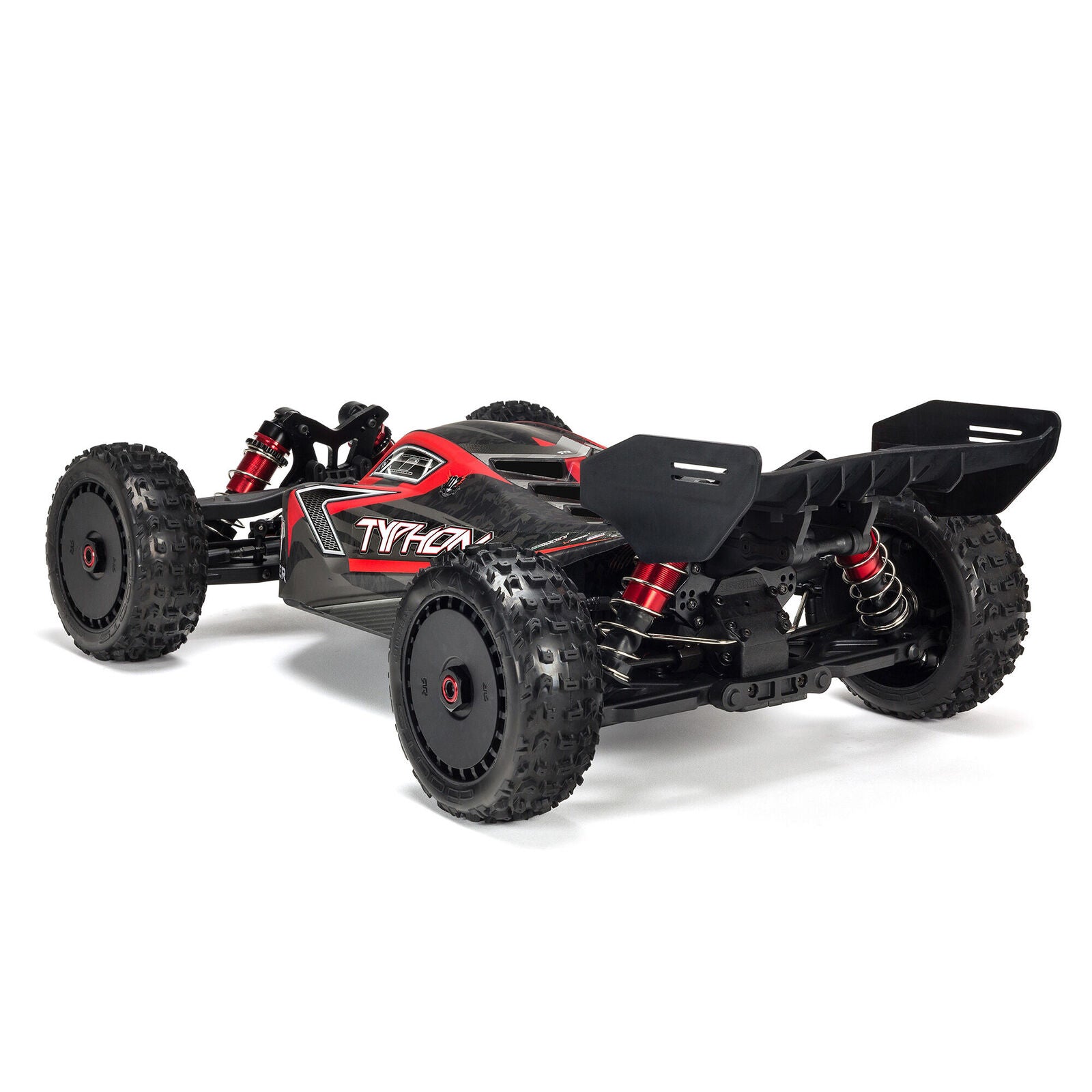

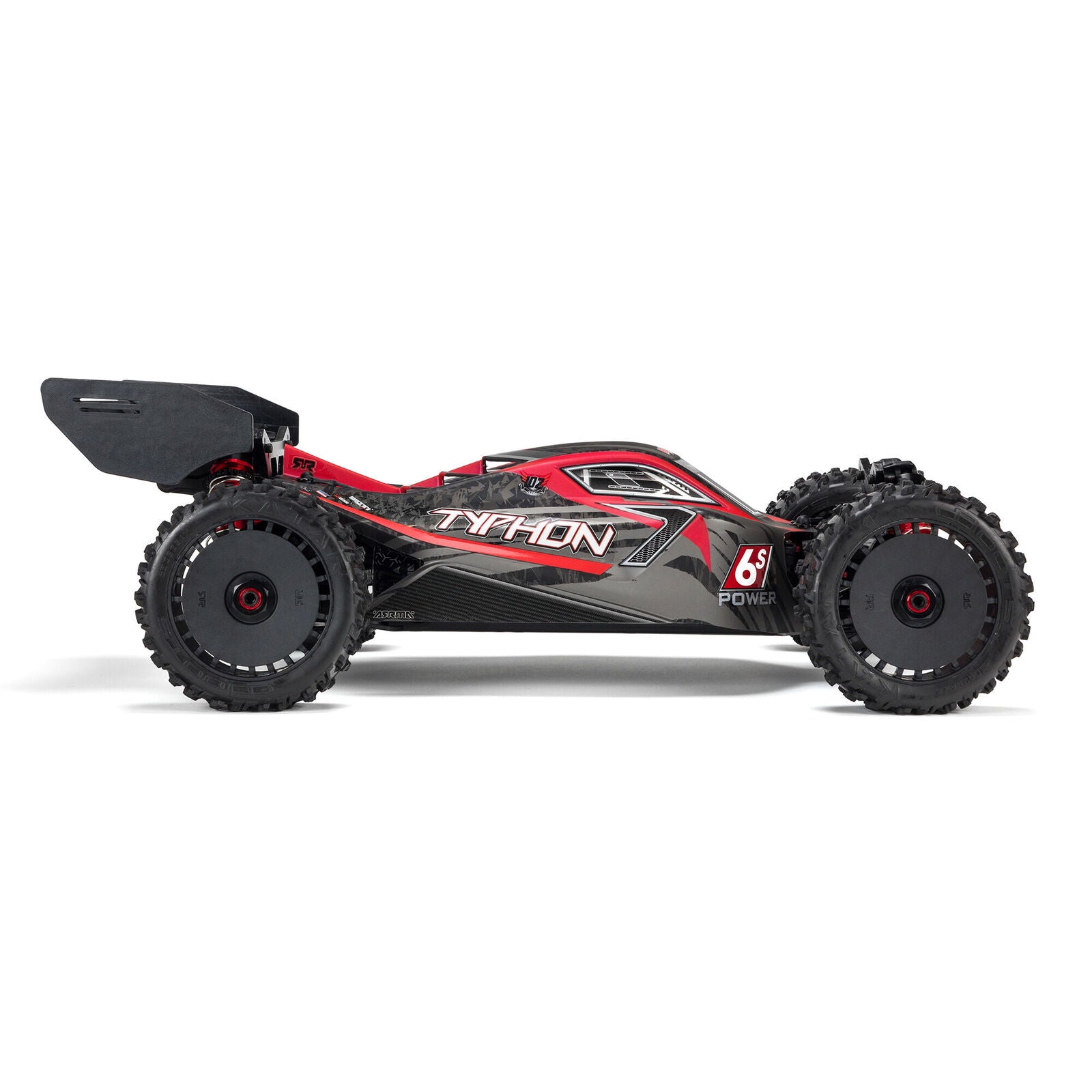

The low drag buggy wheels now with plus 1 mm hexes arrive outfitted with super aggressive multi surface dBoots KATAR tyres. A low drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks featuring a matte black and red paint scheme with forged composite detail.

Specifications

Approximate assembly time: No assembly required
Ball bearings: Full set
Battery: Sold separately
Body: Painted, decaled and trimmed
Brakes: User programmable
Charger: Sold separately
Chassis: 3 mm 6061-T6 aluminium
Completion level: Ready-to-run
Connector type: IC5
Differential: Three, gear type
Drive type: Forward/brake/reverse
Drivetrain: 4WD
Final drive ratio: 10.31
Front shock spring rate: 75.5 gf/mm
Front track: 310 mm
Gear pitch: 1.0 MOD
Internal gear ratio: 3.3
LiPo compatibility: 4S, 6S
Max battery dimensions: 6S soft pack only
Motor size: 4074
Motor type: Brushless
Pinion: 16T
Power system: 6S
Power type: Electric
Product height: 190 mm
Product length: 510 mm
Product weight: 3.42 kg
Product width: 310 mm
Radio: Included
Rear shock spring rate: 56.6 gf/mm
Rear track: 310 mm
Scale: 1/8
Servos: Included
Shock type: Aluminium body, oil-filled, adjustable
Speed control: Included
Spur gear: 50T
Suspension: Independent
Technology: Smart, dual protocol RX (DSMR/SLT)
Tyre tread: dBoots KATAR B
Tyre type: Multi-surface
Top speed: 110+ km/h
Vehicle size: Standard
Vehicle type: Buggy
Water-resistant: Yes
Wheel hex size: 17 mm
Wheel type: 1/8 scale buggy
Wheel width: 44 mm
Wheelbase: 328 mm
