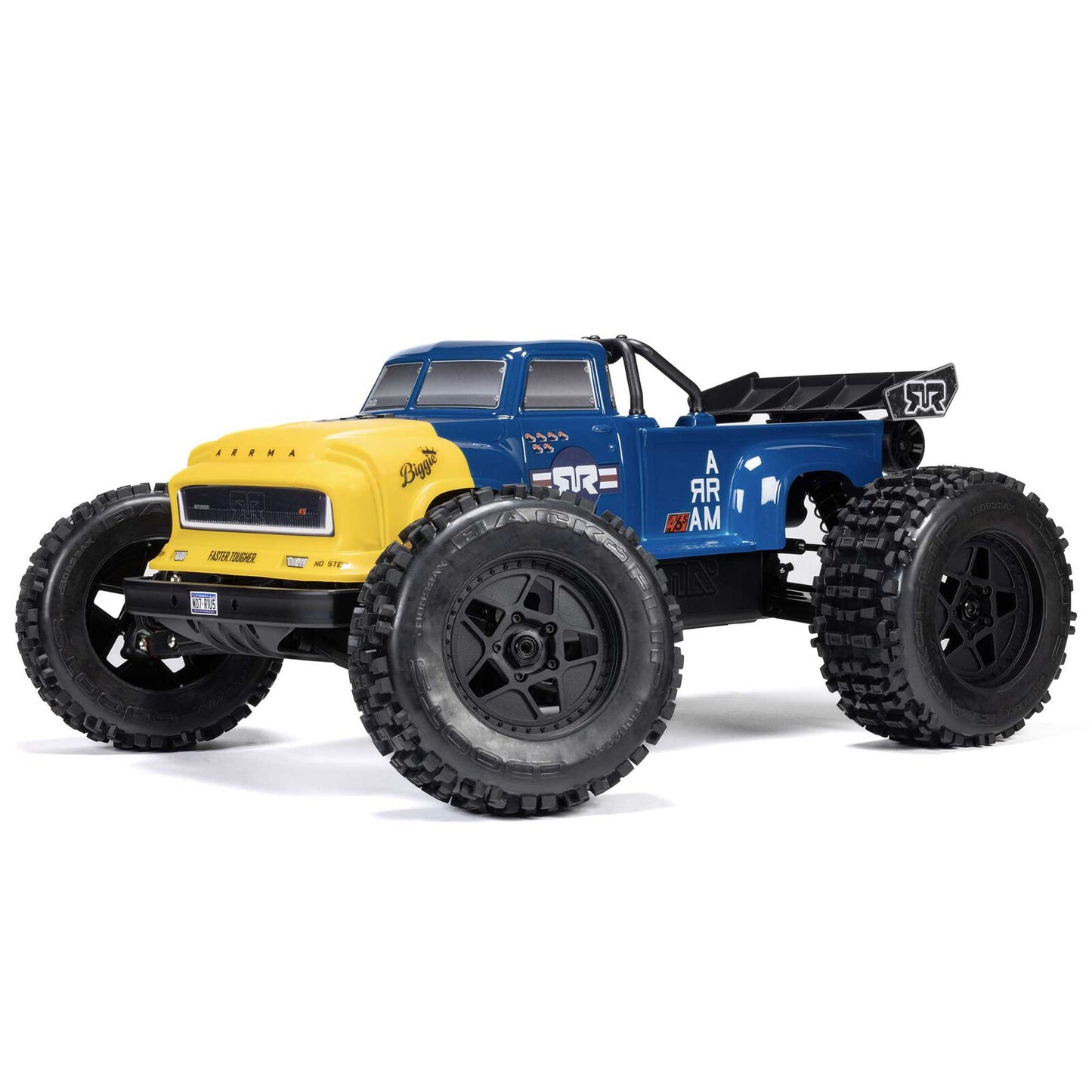

ARRMA 1/8 NOTORIOUS 6S 4X4 RTR Brushless Stunt Truck

Parts & accessories

This next evolution of the ready-to-run, 1/8 scale NOTORIOUS 6S BLX 4X4 stunt truck has more punch and durability for even wilder stunts. Not sure you’re ready for extreme 6S power? It’s plenty fun and manageable on 4S - and ready to advance when you are.

IN THE BOX

• (1) NOTORIOUS 6S BLX 4X4 1/8 Scale Stunt Truck RTR

• (1) Spektrum Firma 150A Smart V2 Brushless 6S ESC with updated B5.12 firmware and IC5 connectors

• (1) Spektrum Firma 4074 2050Kv Brushless Motor

• (1) Spektrum SLT3 2.4GHz Transmitter

• (1) Spektrum SR315 DSMR 3-Channel Dual Protocol Sport Receiver

• (1) Spektrum S665 20kg Waterproof Metal-Geared Digital Servo

• (1) 25T Spline Aluminum Servo Horn

• (4) AA Transmitter Batteries

• (1) Molded Hand Tools

• (1) Instruction Manual

NEEDED TO COMPLETE

• (2) x 2S, (2) x 3S, (1) x 4S or (1) x 6S Hardcase LiPo with EC5 or IC5 connector

• (1) Compatible LiPo Charger

• Minimum Battery Specs: 5000mAh 50C

DOWNLOADS

Instruction Manual
ARRMA NOTORIOUS 6S V6 4X4 RTR - Manual - Multilingual

FEATURES

• EXB (Extreme Bash) black-anodized 7075 T6 aluminum chassis plate

• EXB (Extreme Bash) heavy-duty 29mm differentials

• EXB (Extreme Bash) front bumper and stainless steel skid plate

• EXB (Extreme Bash) tough wing mount

• Adjustable 16mm oil-filled shocks

• Popular 1950s body style with iconic WWII fighter plane livery

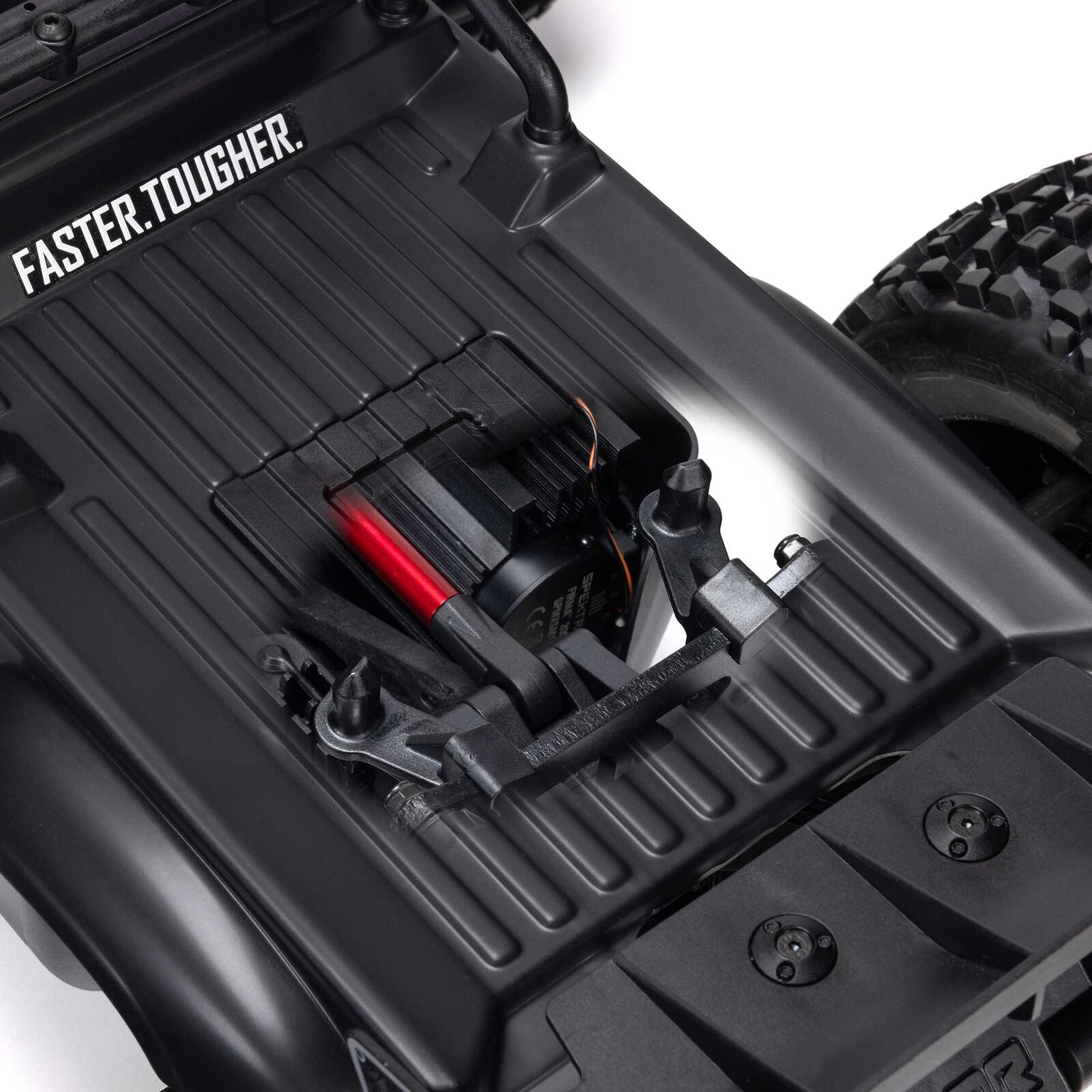

• Quick-release clipless body retention system

• Two-piece tower-to-tower brace for clean looks and easy maintenance

• Inner body tower with increased durability

• Black-anodized aluminum front and rear shock towers

• Composite side guards for protection from dirt and debris

• Super-tough stunt truck wheels

• Multi-terrain dBoots Backflip tires

• Stealth monochrome electronics

• Spektrum Firma 150A 6S Smart V2 brushless ESC with updated firmware

• Spektrum Firma 4074 2050Kv brushless motor and 35mm motor cooling fan

• Spektrum S665 high-torque waterproof metal-geared digital servo

• 25T Spline aluminum servo horn

• Spektrum SLT3 3-channel 2.4GHz transmitter

• Spektrum SR315 dual protocol 3-channel receiver

• Ready to run — only battery and charger required

• Molded hand tools included

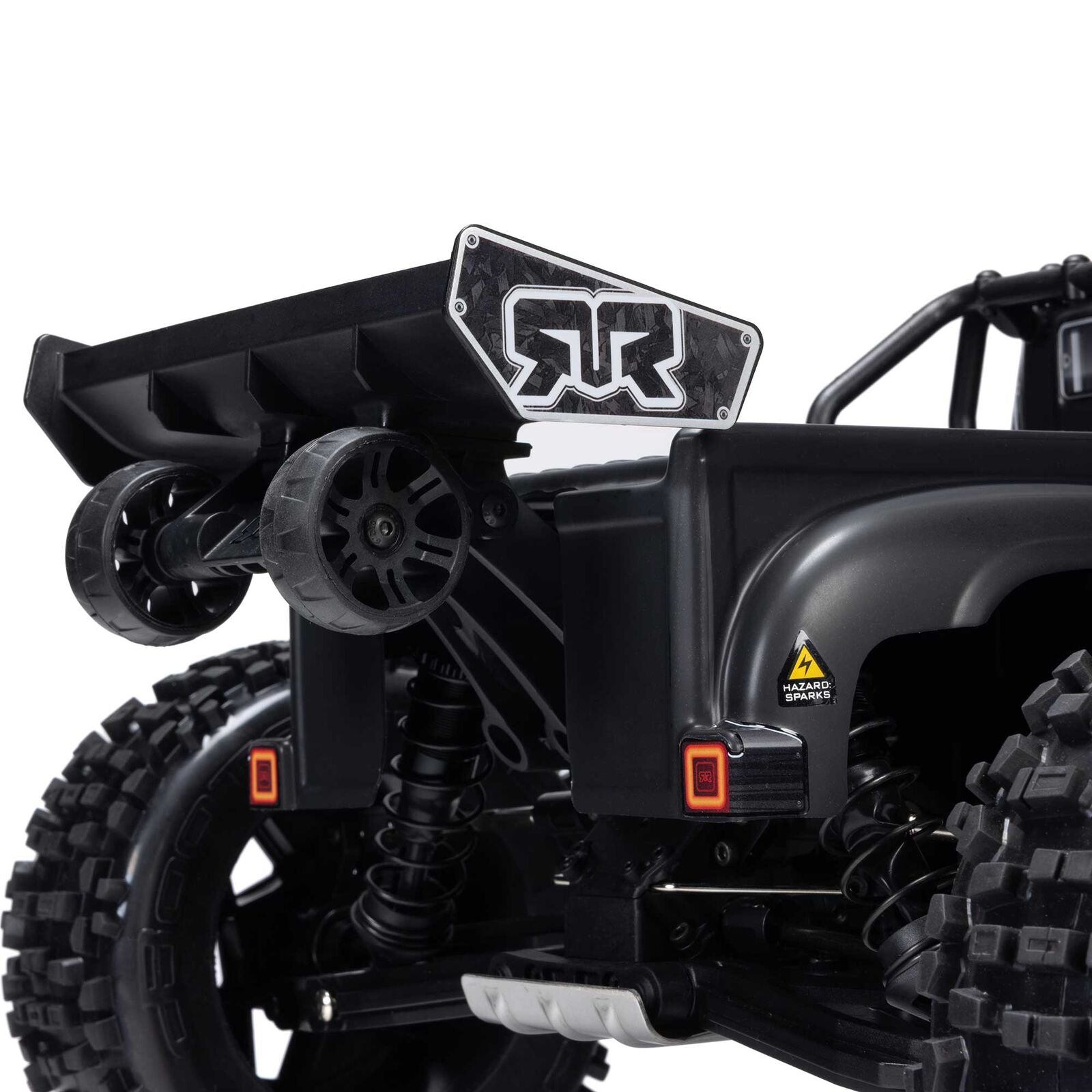

• Built-in wheelie bar

• 2-Year limited warranty (see website for details)

EXB (EXTREME BASH) UPGRADES

Numerous components of the NOTORIOUS 6S BLX 4X4 been upgraded with EXB (Extreme Bash) toughness, including the chassis plate, skid plate, differentials, front bumper, and wing mount. Even more than before, this truck is ready for outrageous stunts and hard-hitting 6S brushless power

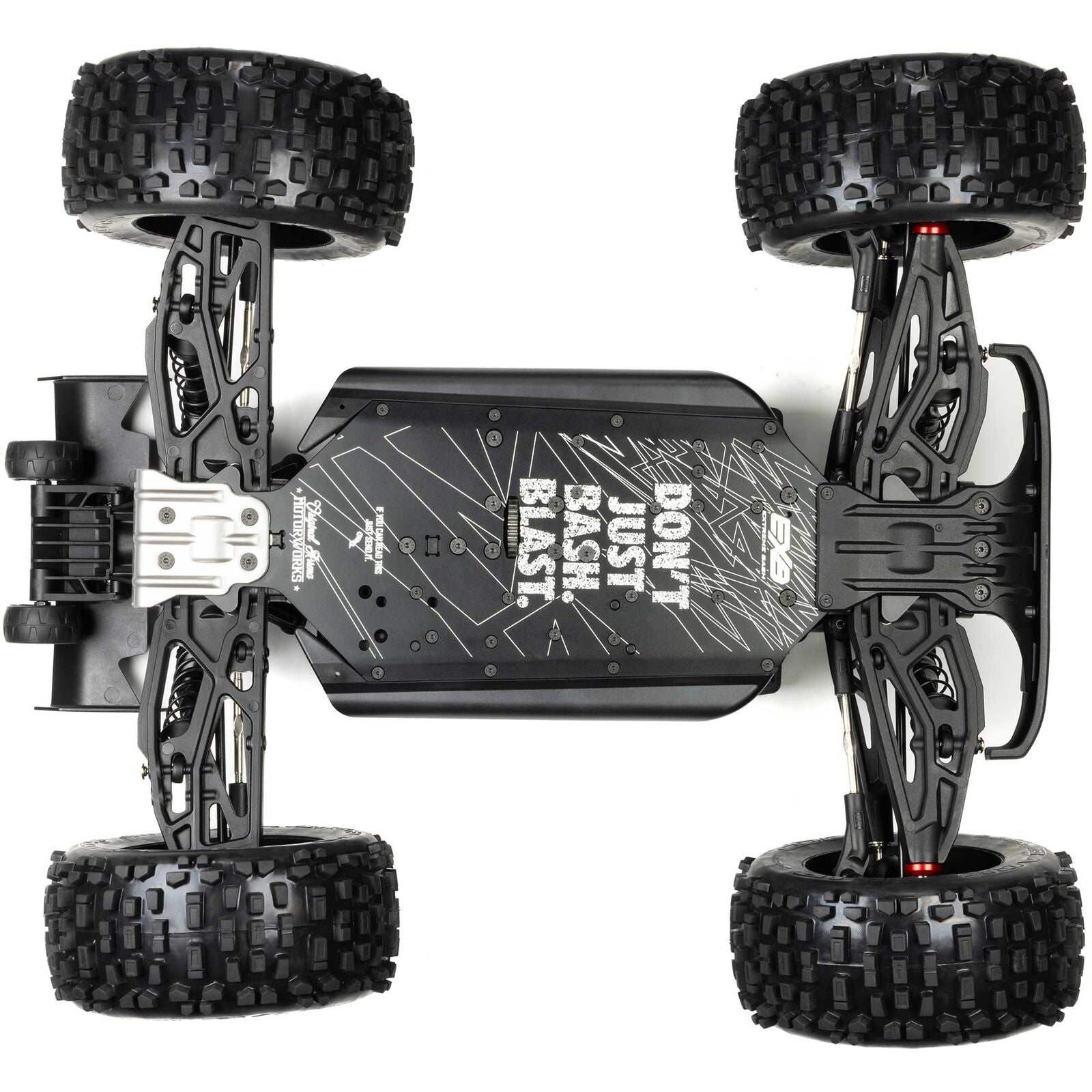

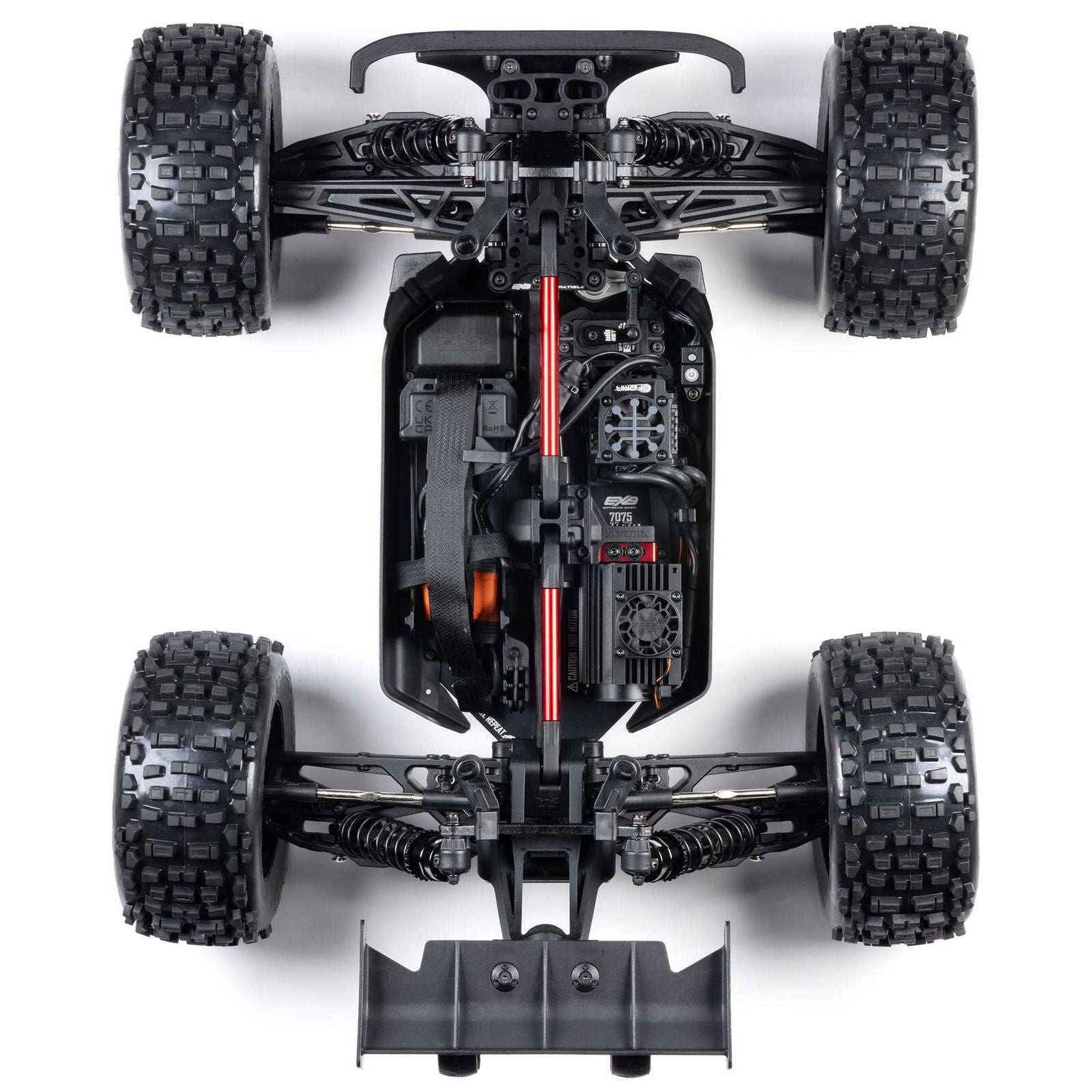

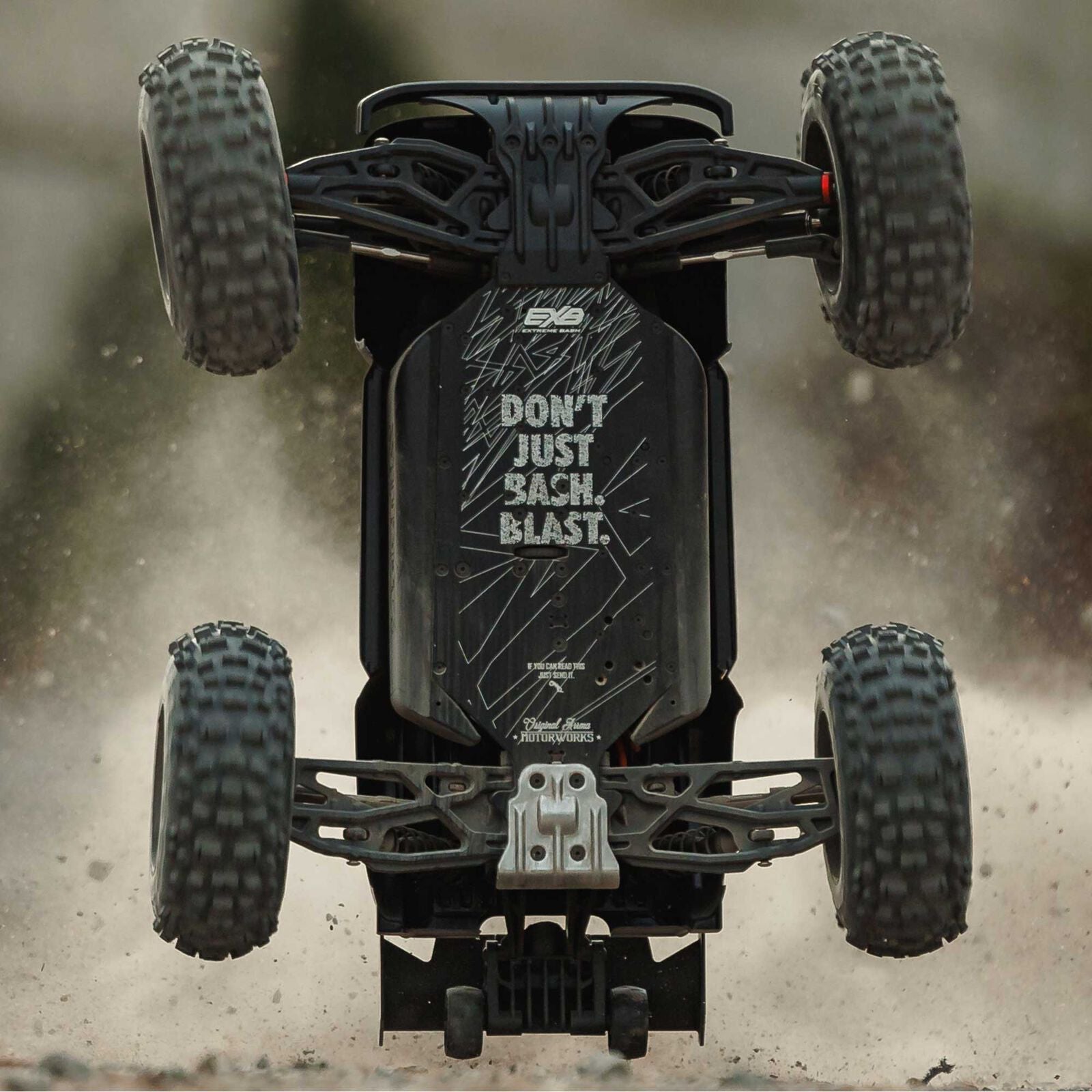

EXB (EXTREME BASH) CHASSIS PLATE

Now equipped with an EXB (Extreme Bash) 7075 T6 aluminum chassis plate - plus a larger EXB front bumper, skid plate, and new side guards - the NOTORIOUS 6S BLX 4X4 can take all kinds of punishment and come back for more. It’s the ultimate truck for jaw-dropping stunts!

SPEKTRUM 2.4GHz SLT3 TRANSMITTER

The high-quality Spektrum SLT3 3-channel transmitter is perfectly equipped for all drivers. Whether you’re using 4S or 6S power, it can help you learn control skills safely by limiting the stunt truck’s maximum available speed to 50% or 75% until you’re ready to unleash it all. Four AA batteries are included.

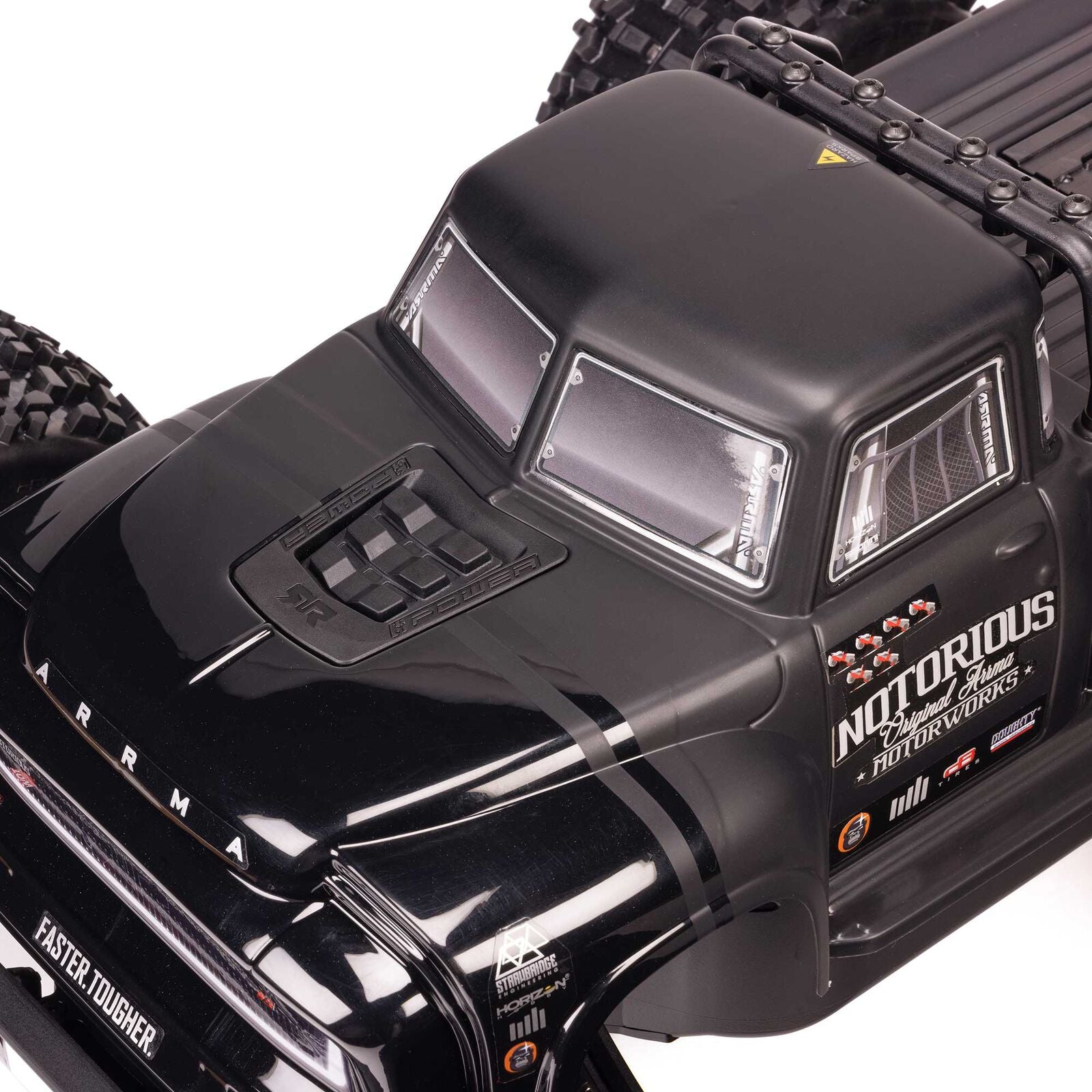

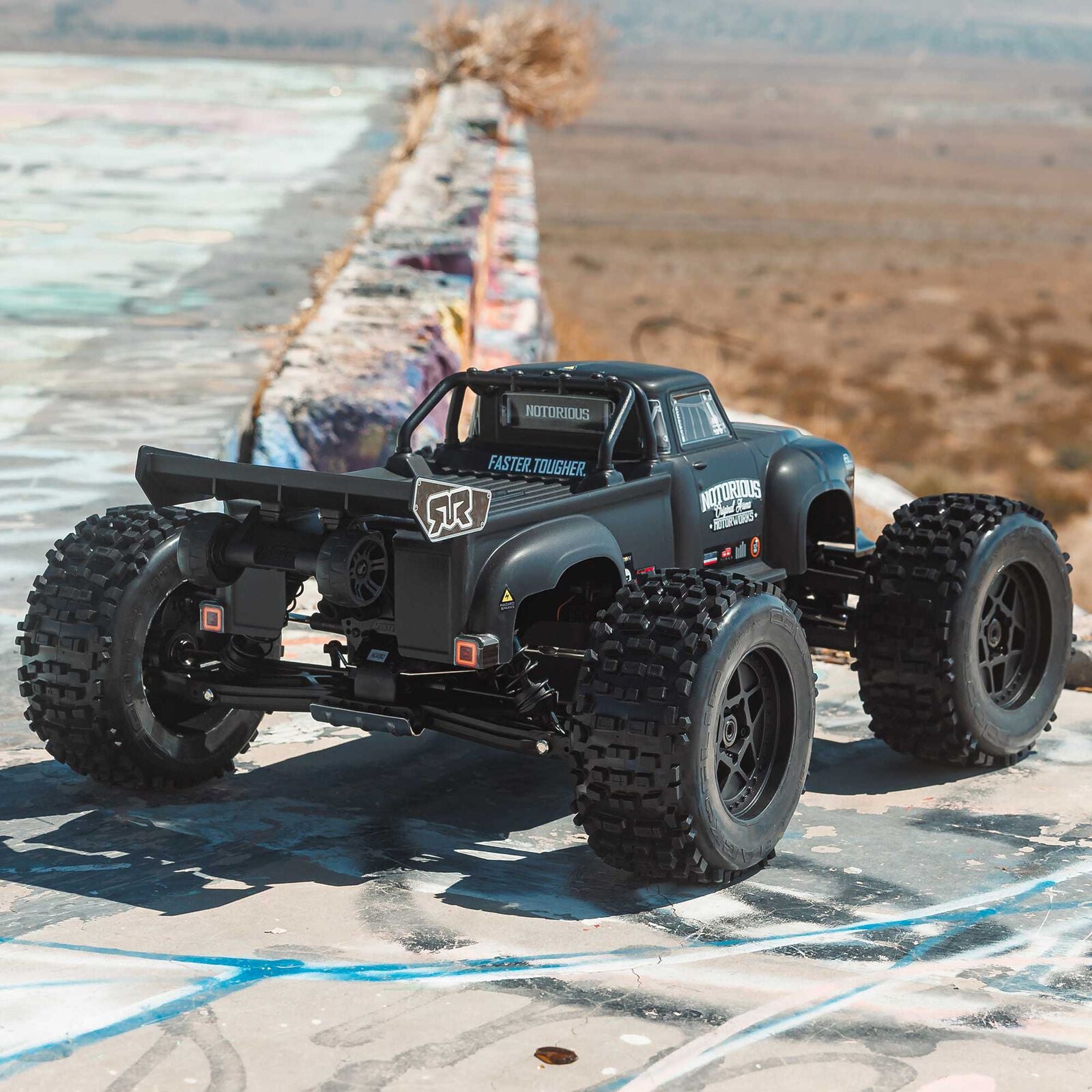

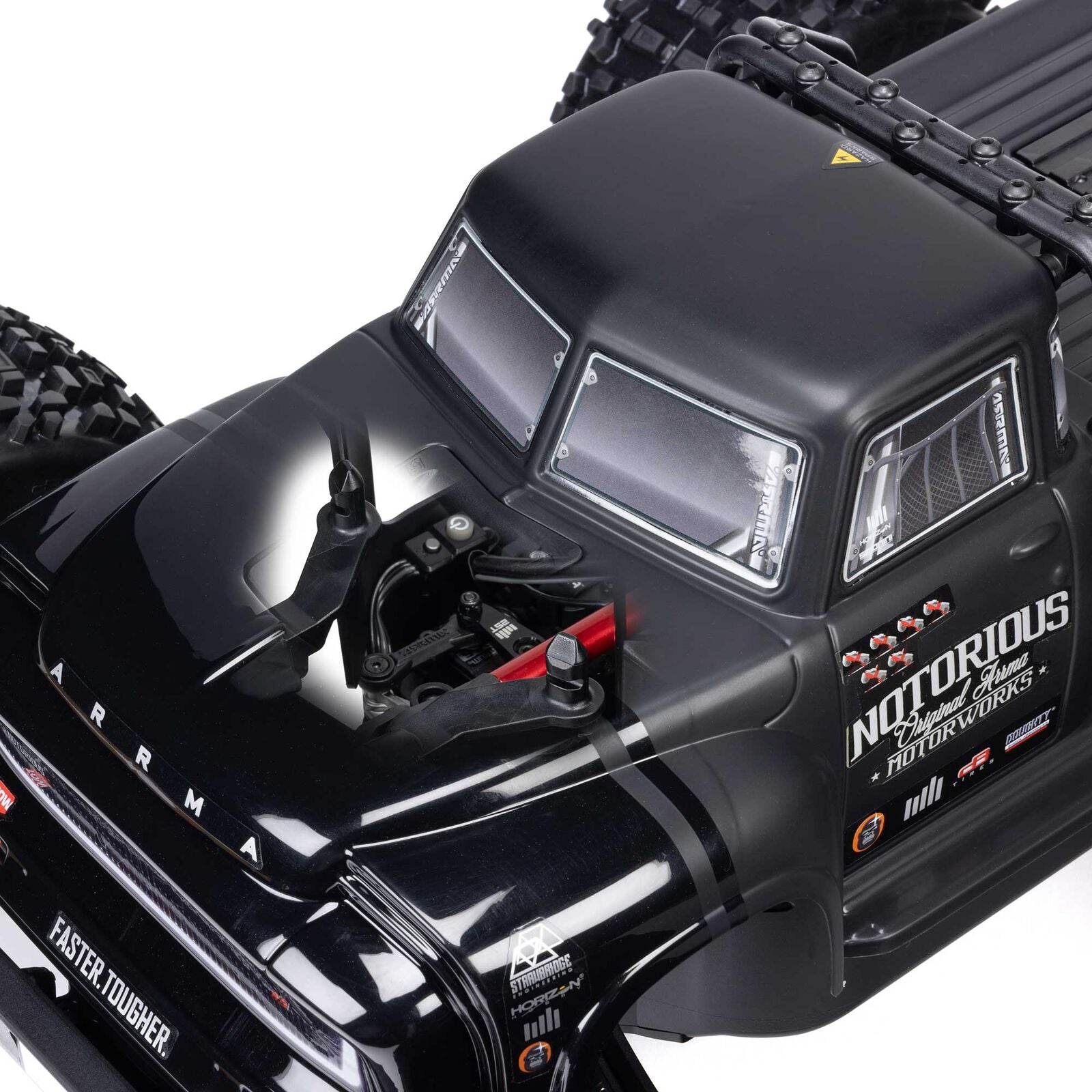

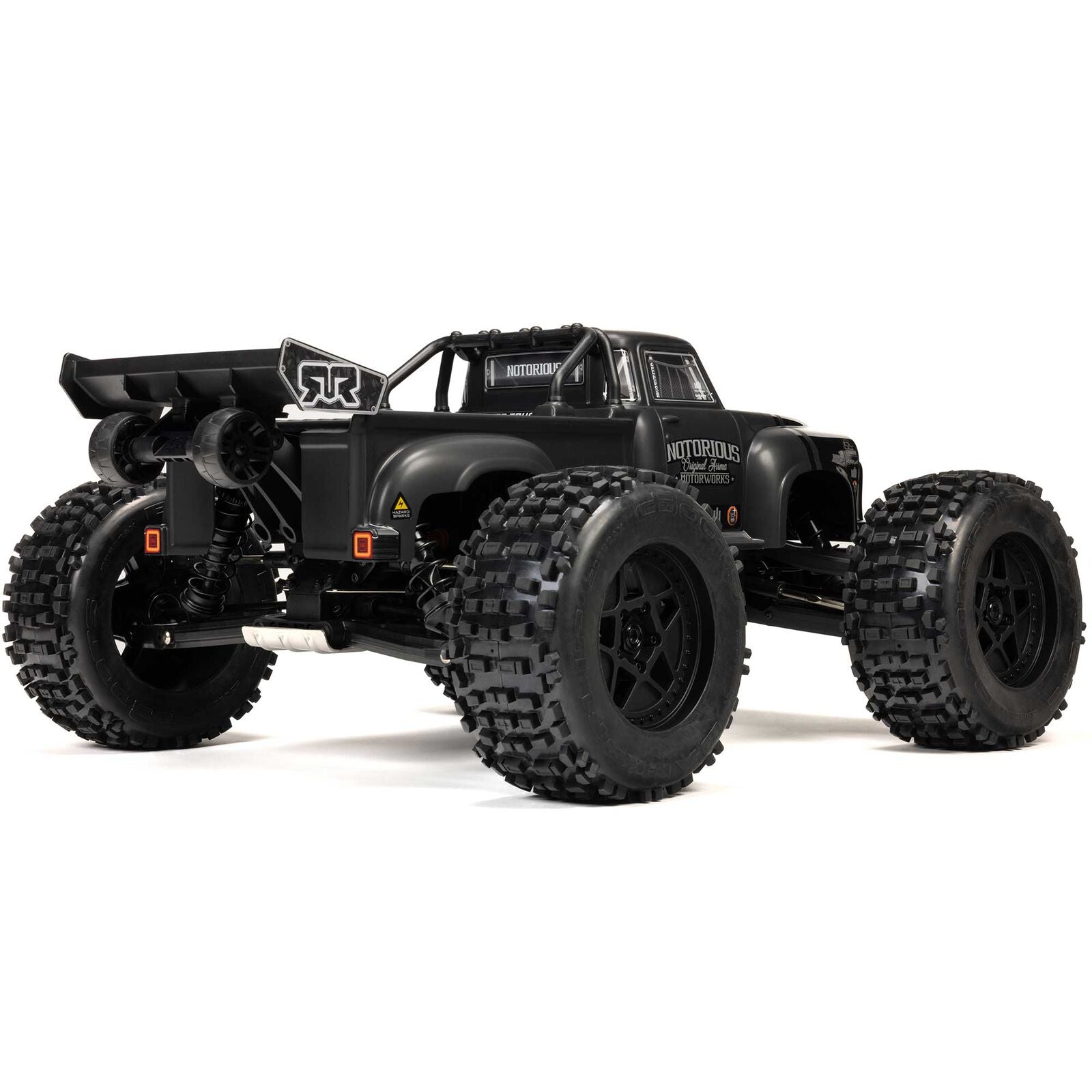

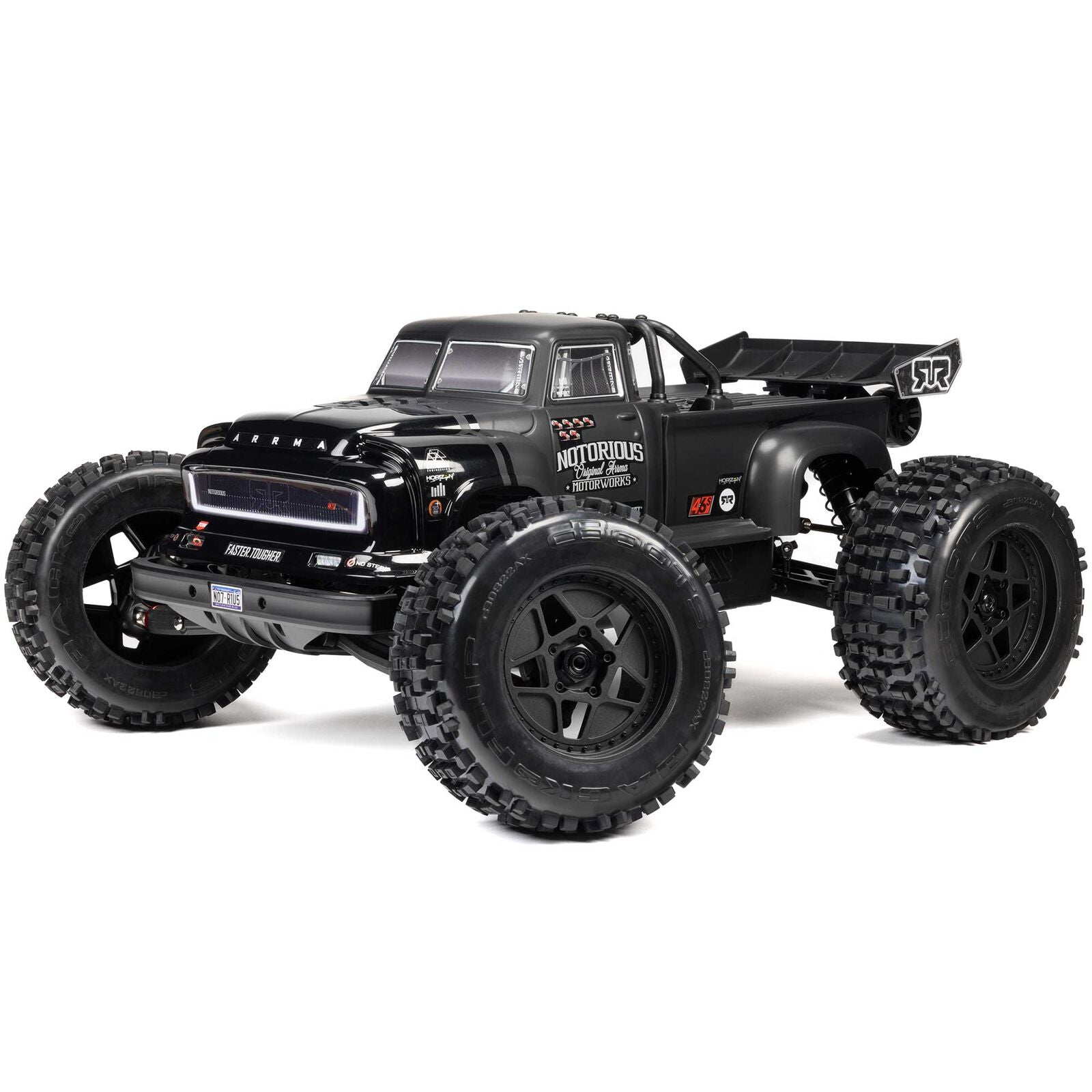

RETRO STYLE TRUCK BODY

The 1950s style truck body comes factory-finished with an attention-grabbing livery inspired by WWII fighter planes. Its quick-release, clipless body retention system doubles as protection against body punch through. ARRMA has upgraded the wing mount with EXB (Extreme Bash) durability to resist breakage.

SPEKTRUM WATERPROOF ELECTRONICS

Enjoy added reliability and punch from the factory-installed Spektrum electronics. The Firma 150A Smart V2 ESC has all new firmware for even more power, and the high-torque S665 digital steering servo adds the reliability of steel gears. Both are waterproof for worry-free bashing in any conditions. (For details on waterproof standards, refer to the NOTORIOUS 6S BLX 4X4 stunt truck instruction manual.)

UPGRADED TRANSMISSION

The NOTORIOUS 6S BLX 4X4 transmission has been upgraded with an EXB (Extreme Bash) 29mm limited slip center differential provide a reliable, heavy-duty drivetrain that holds up to extreme stunts and high-speed bashing.

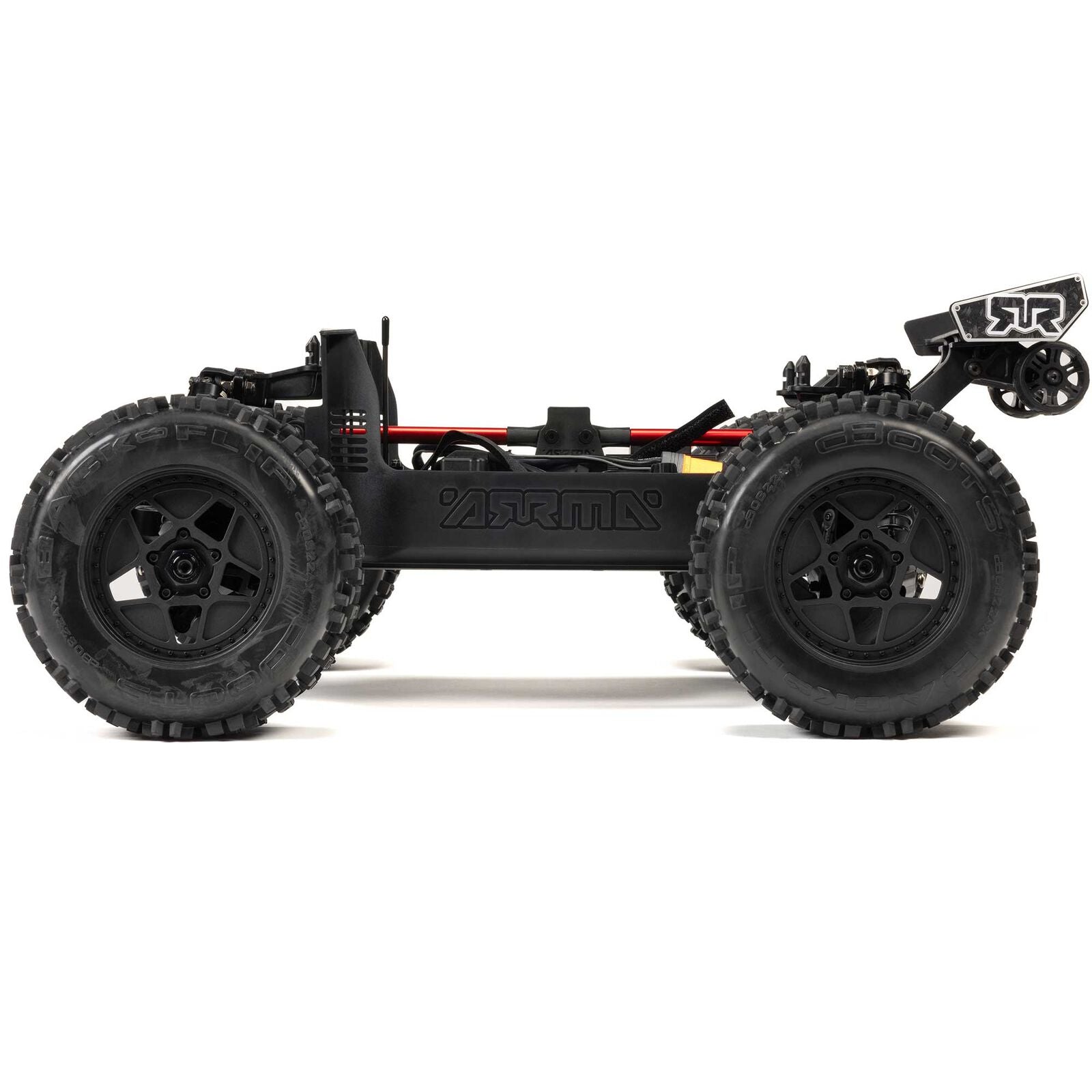

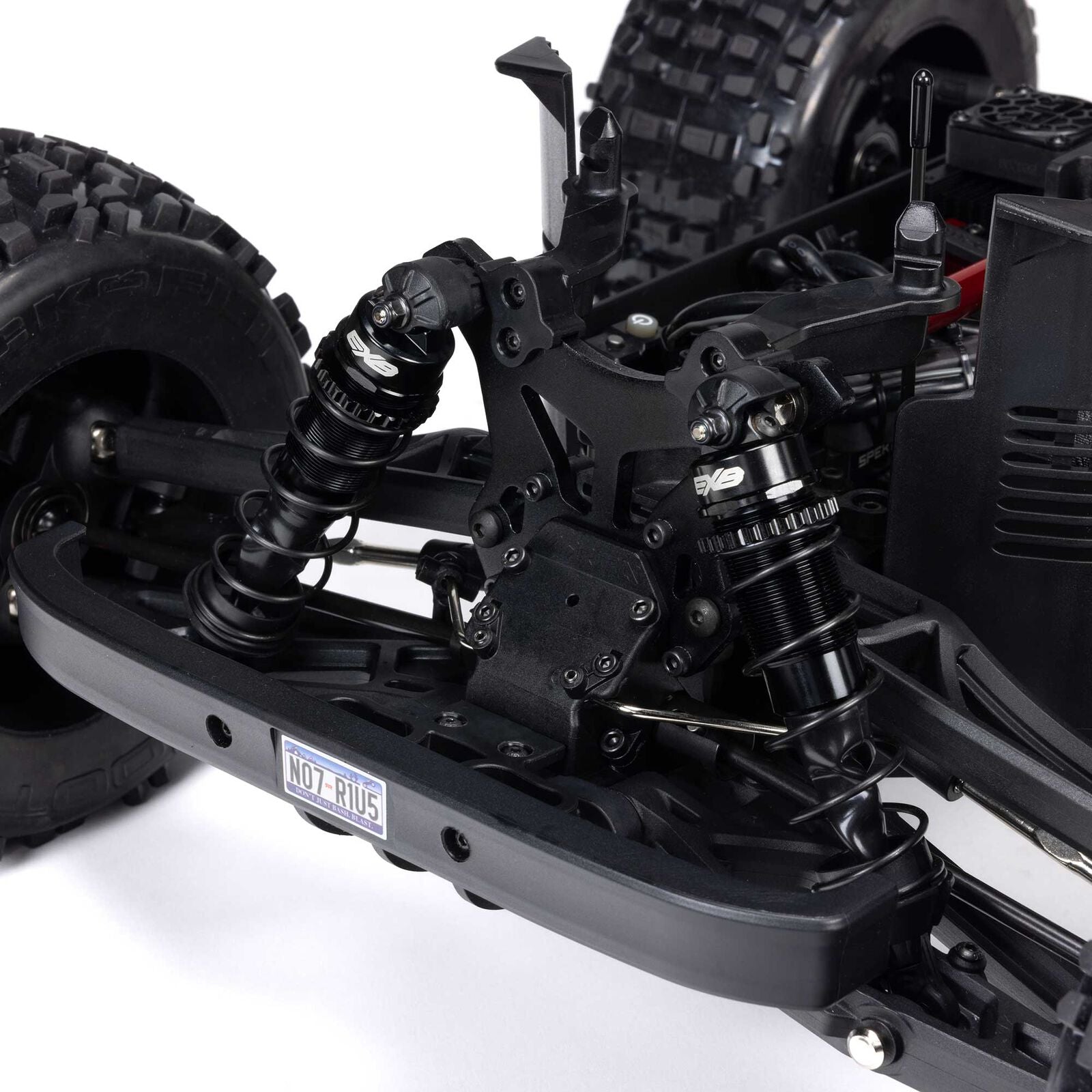

ADJUSTABLE SUSPENSION

With an all-terrain independent suspension and adjustable 16mm oil-filled shocks on aluminum towers to soak up bumps, the NOTORIOUS 6S BLX 4X4 blasts over dirt, asphalt, and grass. If your bashing takes you over uneven surfaces, you can adjust the ride height to increase ground clearance.

dBOOTS BACKFLIP TIRES

The NOTORIOUS 6S BLX 4X4’s tough stunt truck wheels come outfitted with multi-terrain dBoots Backflip tires. They provide all the grip you’ll need to flip, wheelie, and spin, while the high-downforce wing helps keep the truck grounded.

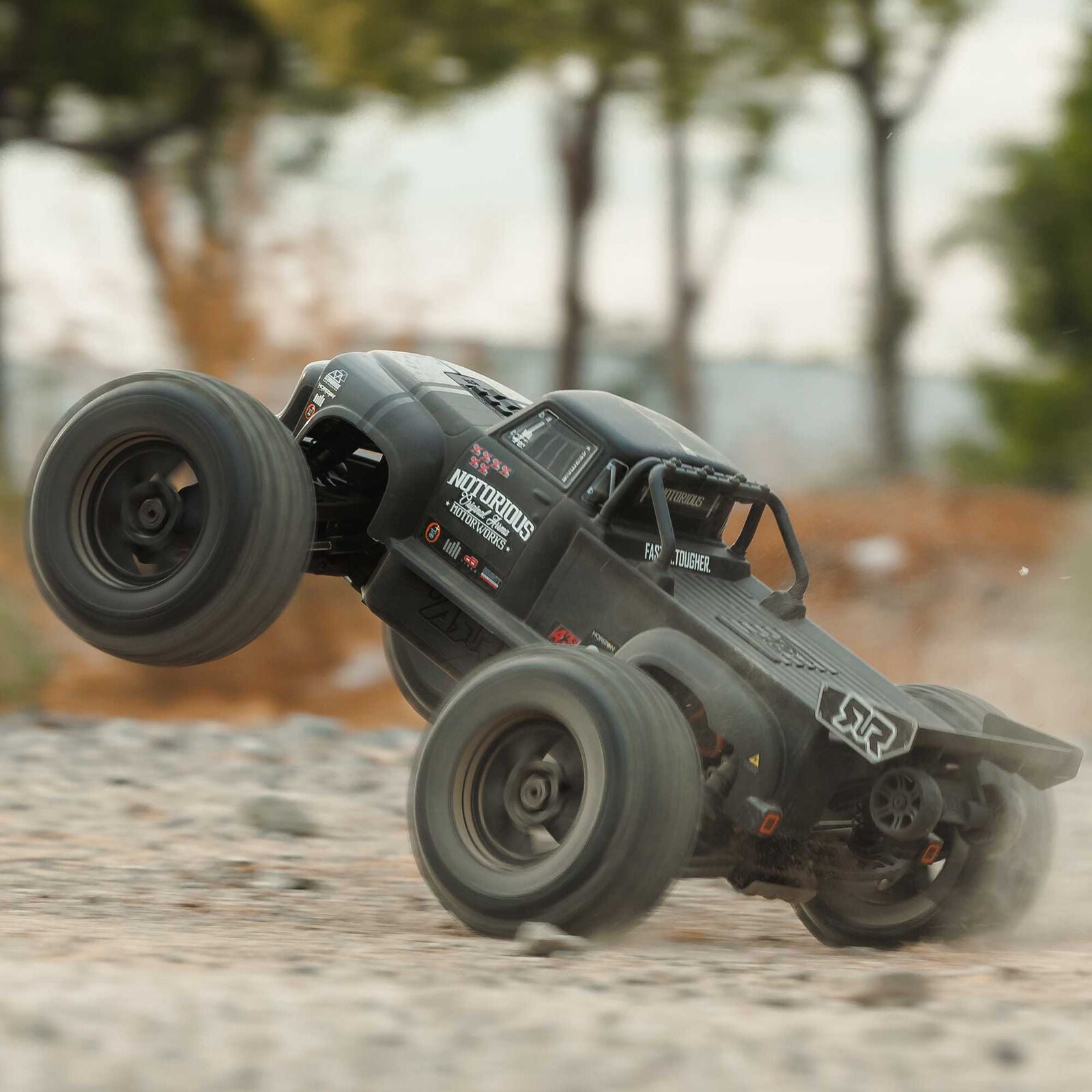

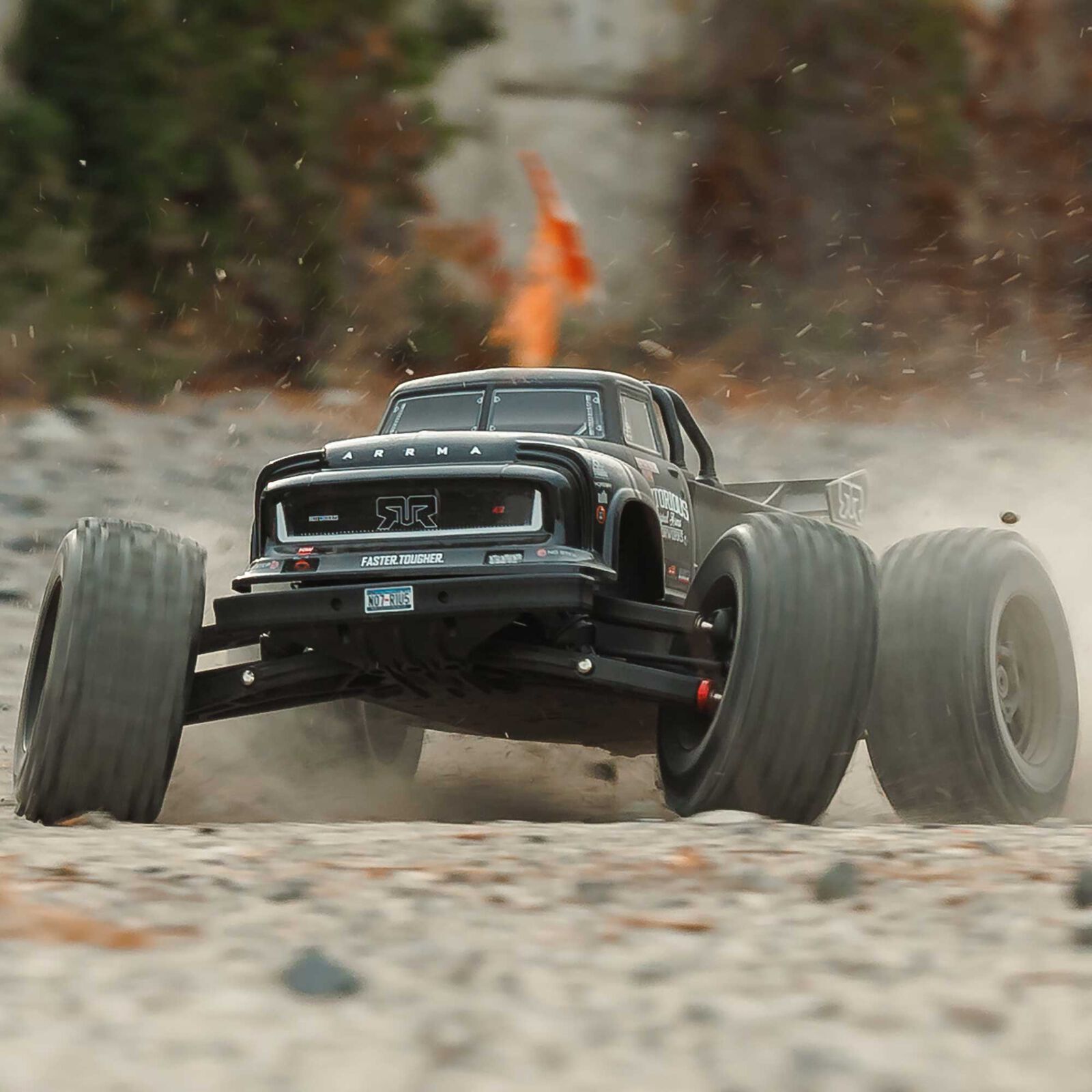

With its retro 1950s body style and super-tough design, the 1/8 scale NOTORIOUS 6S BLX 4X4 has been the favorite ARRMA truck for unleashing big stunts with one-of-a-kind style. This basher does it all - from long, tall wheelies and tight, fast donuts to standing and aerial backflips and more. The NOTORIOUS 6S BLX 4X4 takes any punishment you can dish out and comes back wanting more.

Now ARRMA has amped up its durability and punch with key upgrades so you can take your tricks to daring new extremes. The chassis plate, differentials, front bumper, skid plate, and even the wing mount have all been beefed up with EXB (Extreme Bash) toughness. New side guards, a two-piece tower-to-tower brace, and inner body tower all contribute to more strength, easier maintenance, and a cleaner look. The famously retro NOTORIOUS body now has an attention-grabbing livery inspired by WWII fighter planes, plus a convenient, quick-release, clipless body retention system.

The power behind the NOTORIOUS 6S BLX 4X4’s jaw-dropping speed and stunt capabilities comes from a potent, 6S-capable Spektrum brushless system featuring a Firma 2050Kv brushless motor and Firma 150A Smart V2 ESC with new, more powerful firmware. A high-torque, steel gear Spektrum S665 servo adds strong, reliable steering. Thanks to these waterproof electronics, bashing is a "go" even through mud and snow.

With a 6S LiPo battery installed, the NOTORIOUS 6S BLX 4X4 is ready to blast through the most extreme stunts you can imagine. If that sounds a bit intimidating for your current bashing experience, never fear. Plug in a 4S pack for now — you can have plenty of hard-hitting, high speed fun safely inside of your comfort zone. When you’re ready for more, install a 6S LiPo and crank up the thrills past eleven!

The Spektrum SLT3 transmitter will help pave your way to 6S power with its confidence-boosting throttle limiting feature, which automatically limits top speed to a level you prefer until you’re ready for it all. You determine how fast your NOTORIOUS 6S BLX 4X4 can go based on where you set the transmitter’s throttle limiter switch. Set it to 50% or 75% and you’ll never worry about going faster than you can safely handle. You’ll make the move up 6S brushless speeds in complete control.

The ARRMA NOTORIOUS 6S BLX 4X4 is right at home blasting on asphalt, dirt, gravel, or short grass. Add some ramps or build a few dirt mounds for launching it into the air. Dream up crazy tricks and daredevil stunts, and pull them off with retro style. Anything goes with the NOTORIOUS 6S BLX 4X4 - and all that’s required is a 4S or 6S battery and compatible charger.

SPECIFICATIONS

Approximate Assembly Time: No assembly required
Battery: Sold Separately
Body: Painted, trimmed and decaled
Brakes: Integral with ESC
Charger: Sold Separately
Chassis: 7075 T6 aluminum
Completion Level: Ready-To-Run
Connector Type: EC5, IC5
Differential: Front center and rear geared differentials
Drive Type: Forward/Brake/Reverse
LiPo Compatibility: 4S, 6S
Max Battery Dimensions: 6.22 x 1.89 x 2.76 in (158 x 48 x 70mm)
Motor Type: Brushless
Power System: 6S
Power Type: Electric
Product Height: 9.69" (246 mm)
Product Length: 21.26" (540 mm)
Product Weight: 12.96 lb (5.88kg)
Product Width: 18.03" (458 mm)
Radio: Included
Receiver: Included
Scale: 1/8
Servos: Included
Shock Type: Aluminum body oil-filled adjustable
Speed Control: Included
Suspension: Independent
Technology: DSMR Protocol
Tire Tread: dBoots BACKFLIP
Tire Type: Multi-terrrain
Top Speed: 65+ mph (104+ kph)
Vehicle Size: Standard
Vehicle Type: Stunt Truck
Water-Resistant: Yes
Wheel Hex Size: 17mm
Wheel Width: 3.0" (77mm)
Wheelbase: 12.96" (321 mm)
