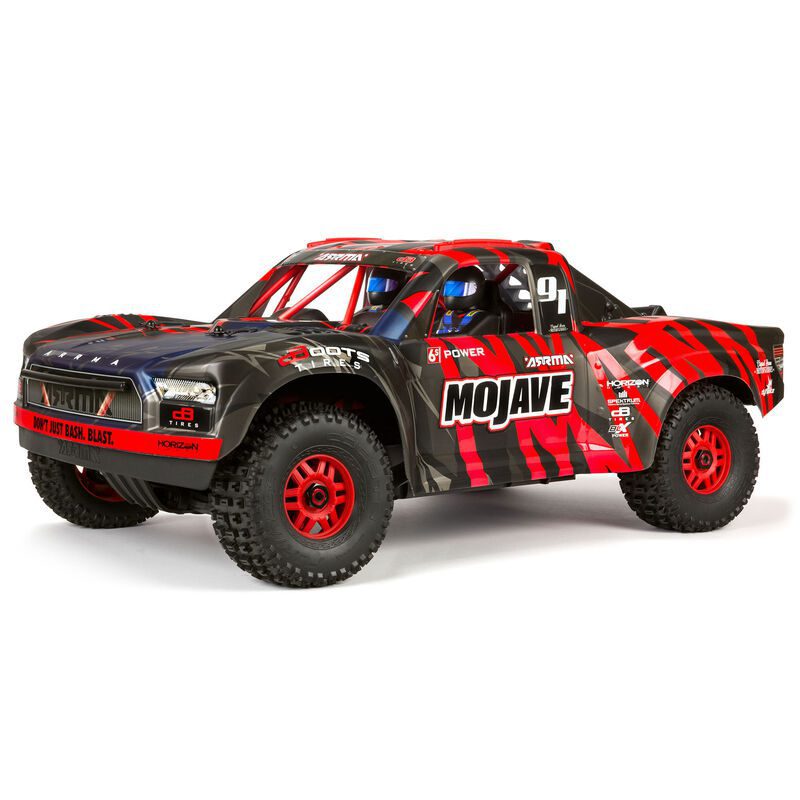

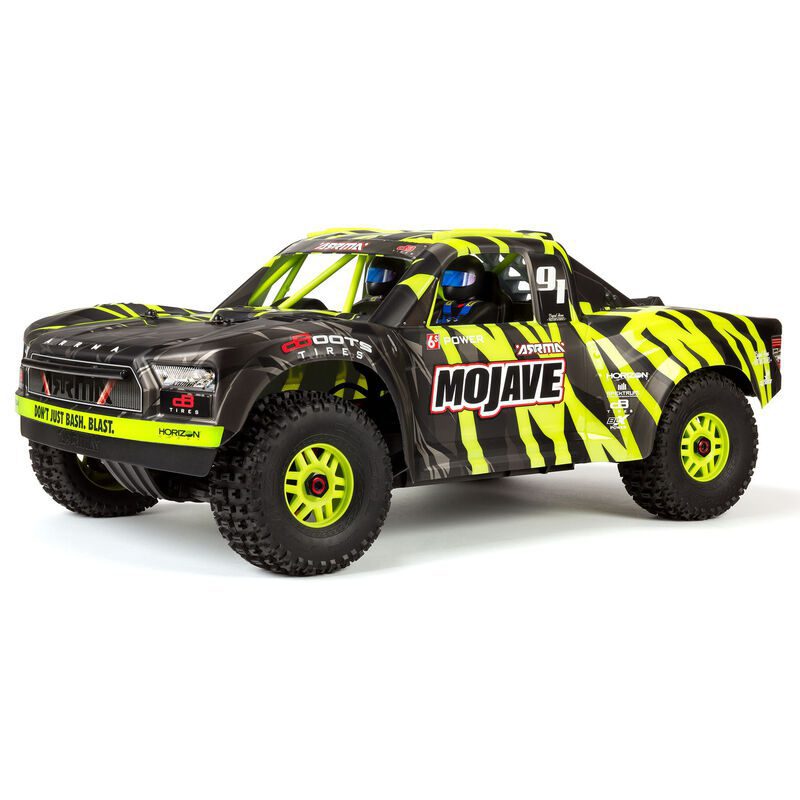

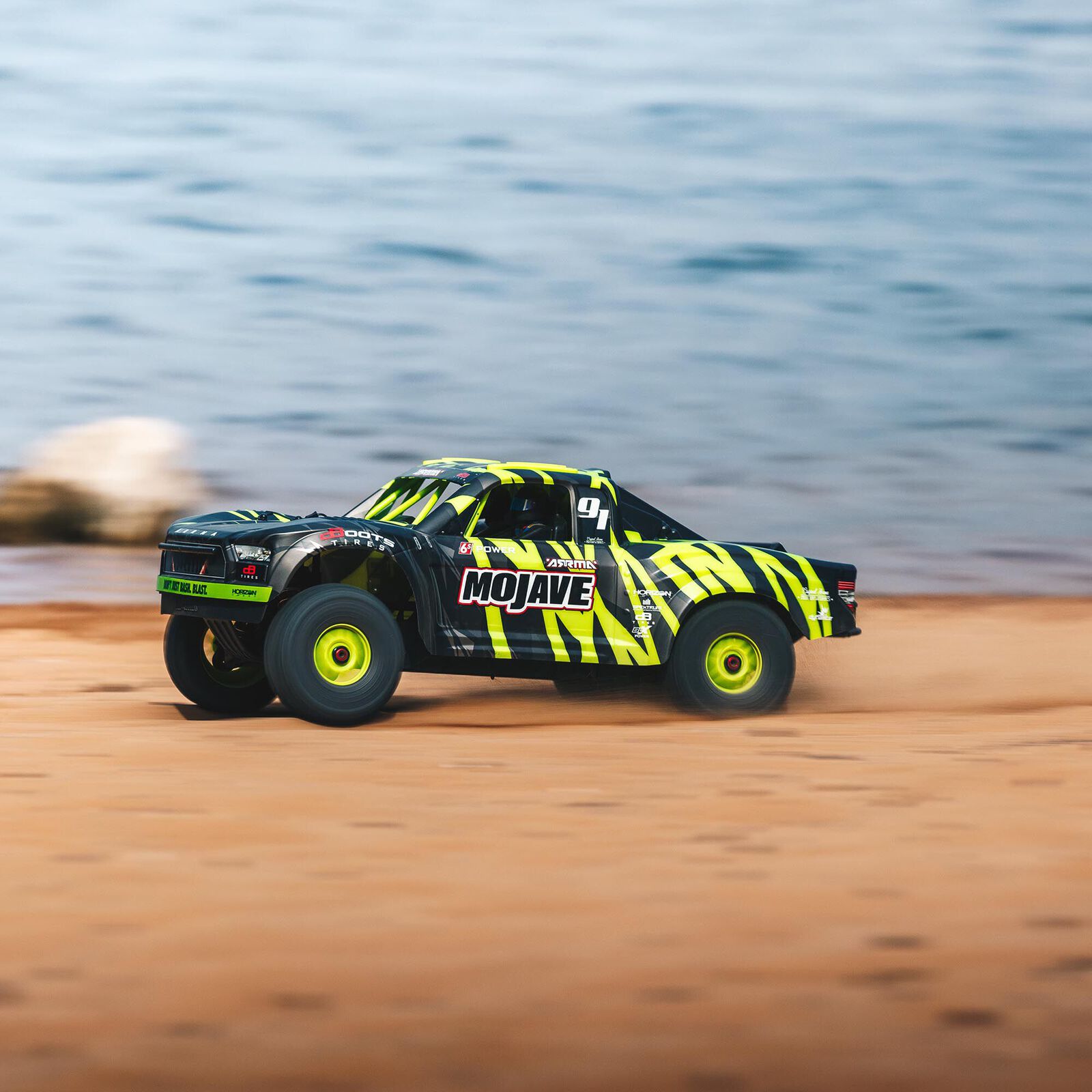

ARRMA 1/7 MOJAVE 6S 4X4 RTR Brushless Desert Truck

The 1/7 scale ARRMA MOJAVE 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum SLT3 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.

In the Box

(1) ARRMA MOJAVE 6S BLX 1/7 Desert Truck RTR
(1) Spektrum Firma 150A Smart 4S/6S ESC (installed)
(1) Spektrum Firma 4074 2050Kv brushless motor with ARRMA heatsink (installed)
(1) Spektrum S652 metal-geared digital servo (installed)
(1) Spektrum SR315 3-channel dual protocol receiver (installed)
(1) Spektrum SLT3 2.4GHz 3-channel radio
(1) 1/7 MOJAVE 6S V2 4WD BLX manual

Needed to Complete

(2) 2S or (2) 3S LiPo batteries with EC5 or IC5 connector
(1) Compatible battery charger
(4) AA batteries for transmitter

Features

Ready-to-run
Spektrum SLT3 2.4GHz 3-channel radio
Spektrum SR315 dual protocol 3-channel receiver
Spektrum S652 digital servo
Spektrum Firma 150A Smart ESC
Spektrum Firma 4074 2050Kv brushless motor

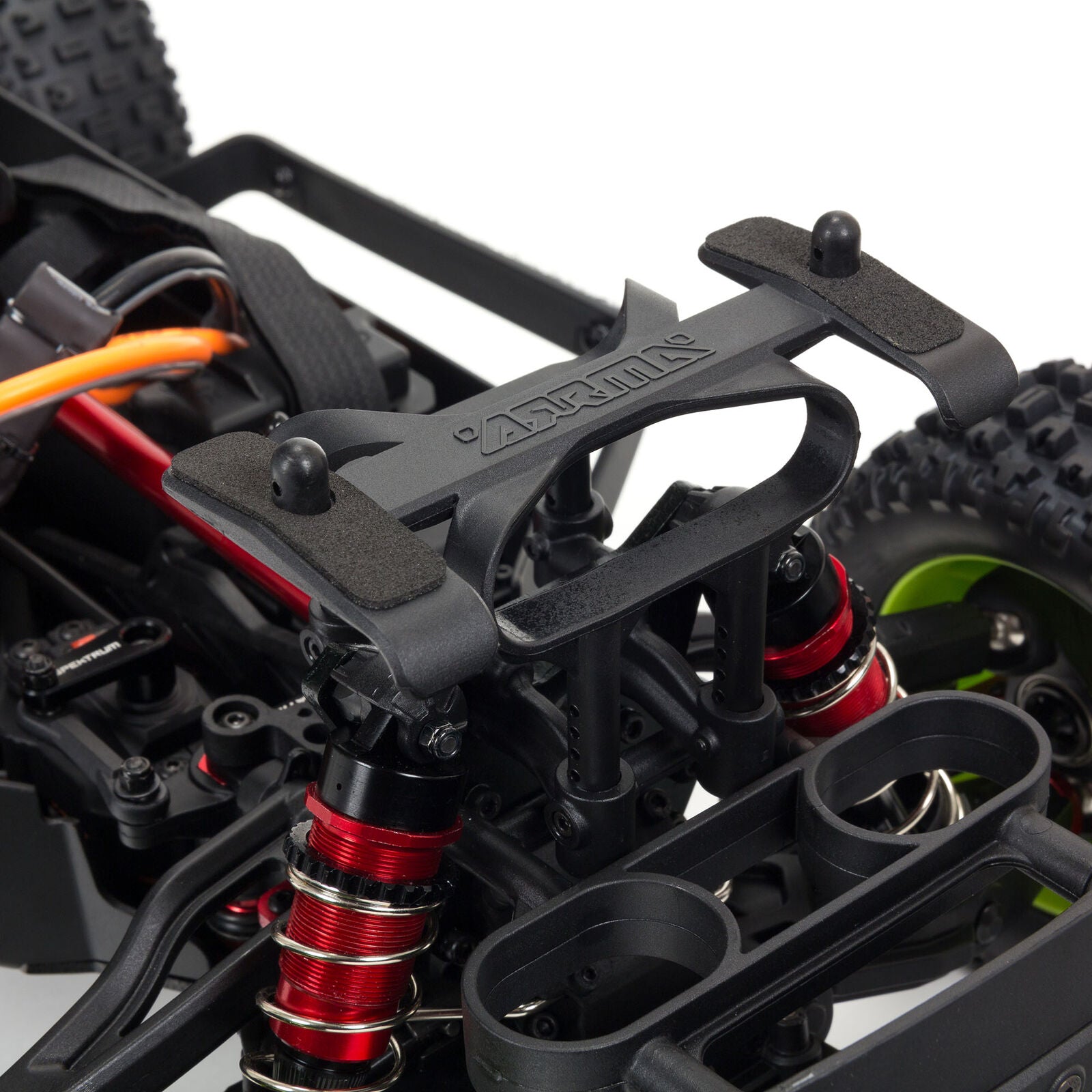

EXB compatible front brace
Stronger rear brace mount
Large-volume waterproof* receiver box
+1 mm wheel hexes
Stronger body mounts

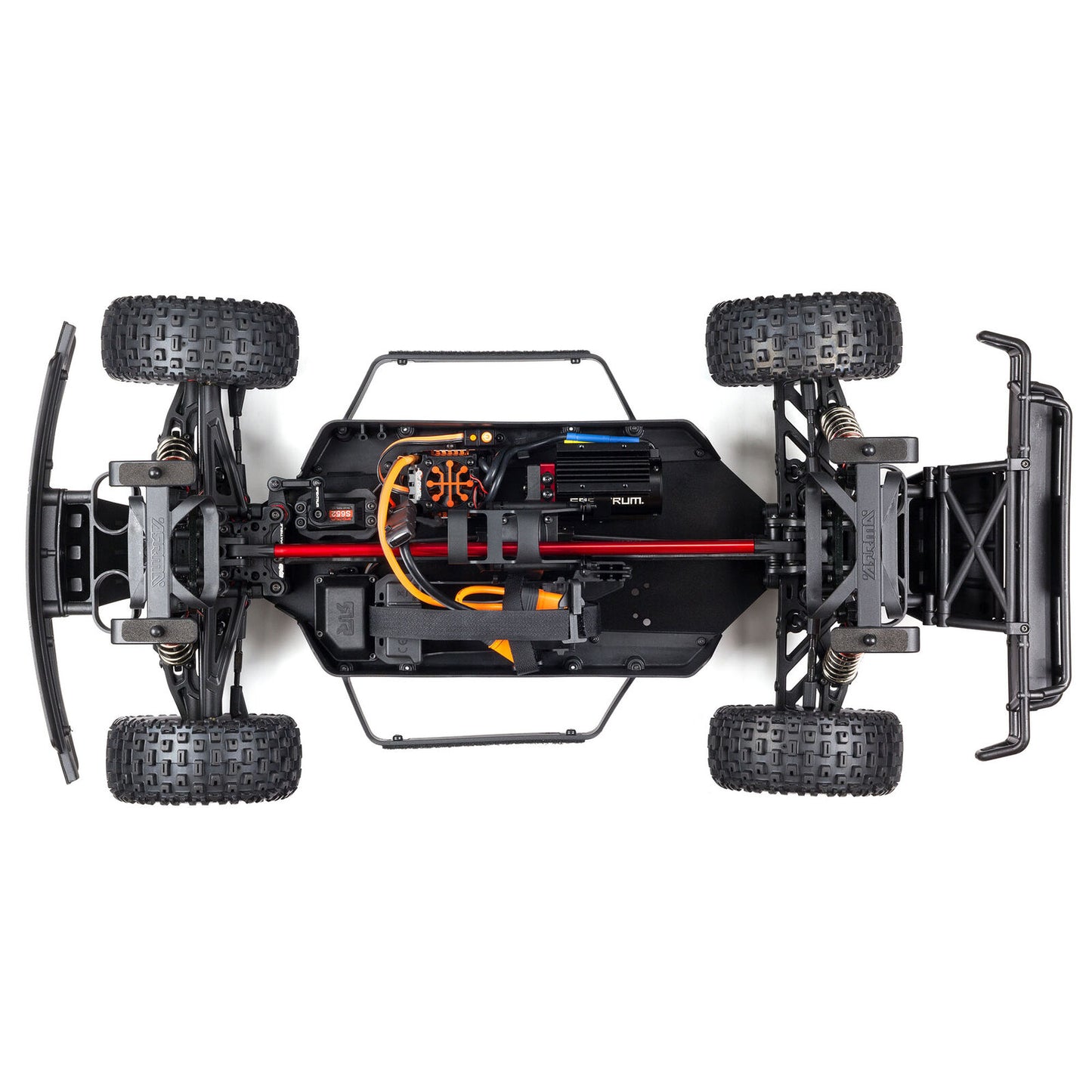

Anodised aluminium chassis
Strong composite chassis side pods
Centre brace for maximum durability
Centre roll hoop interfaces with body roll cage for enhanced body durability
Nerf bars for body and side impact support

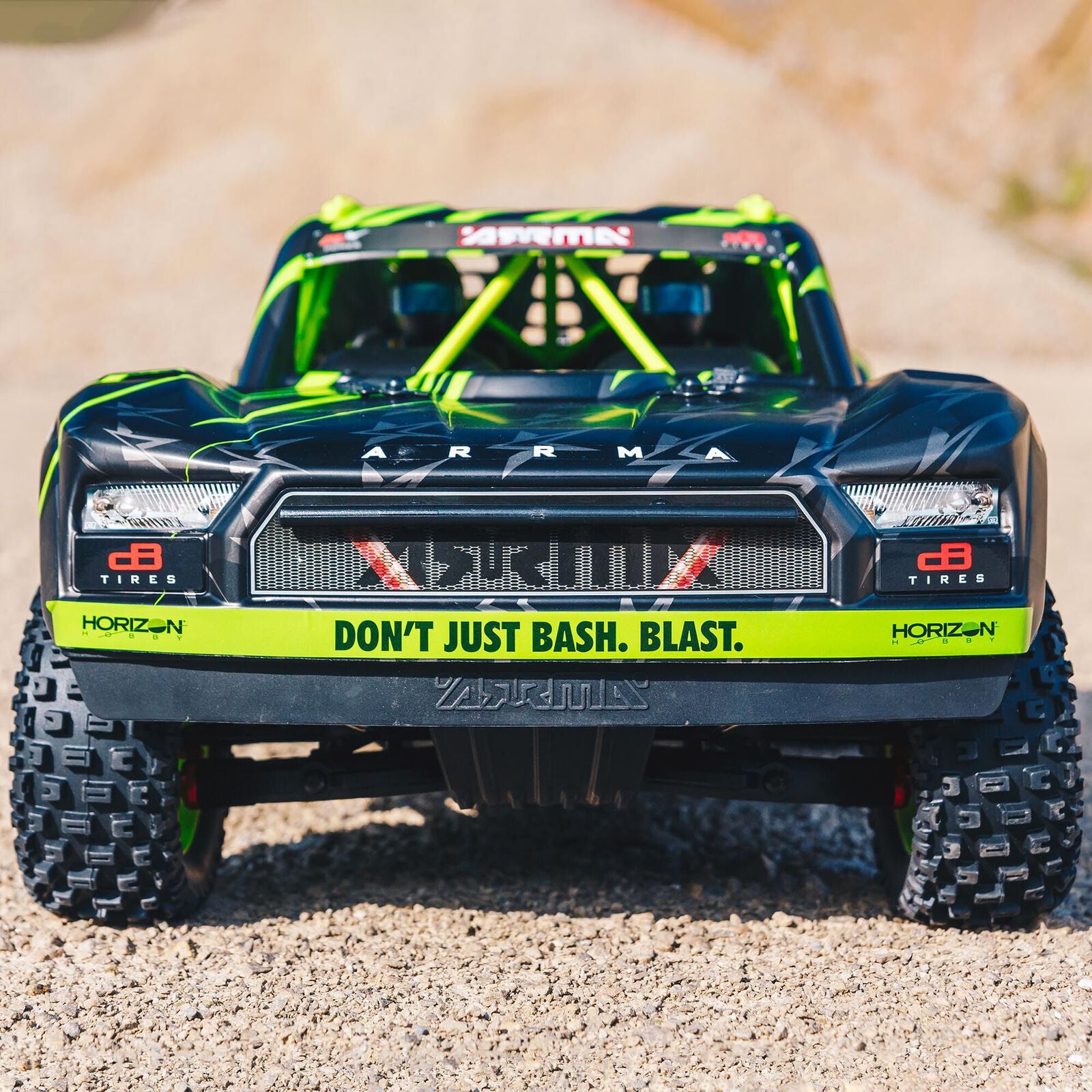

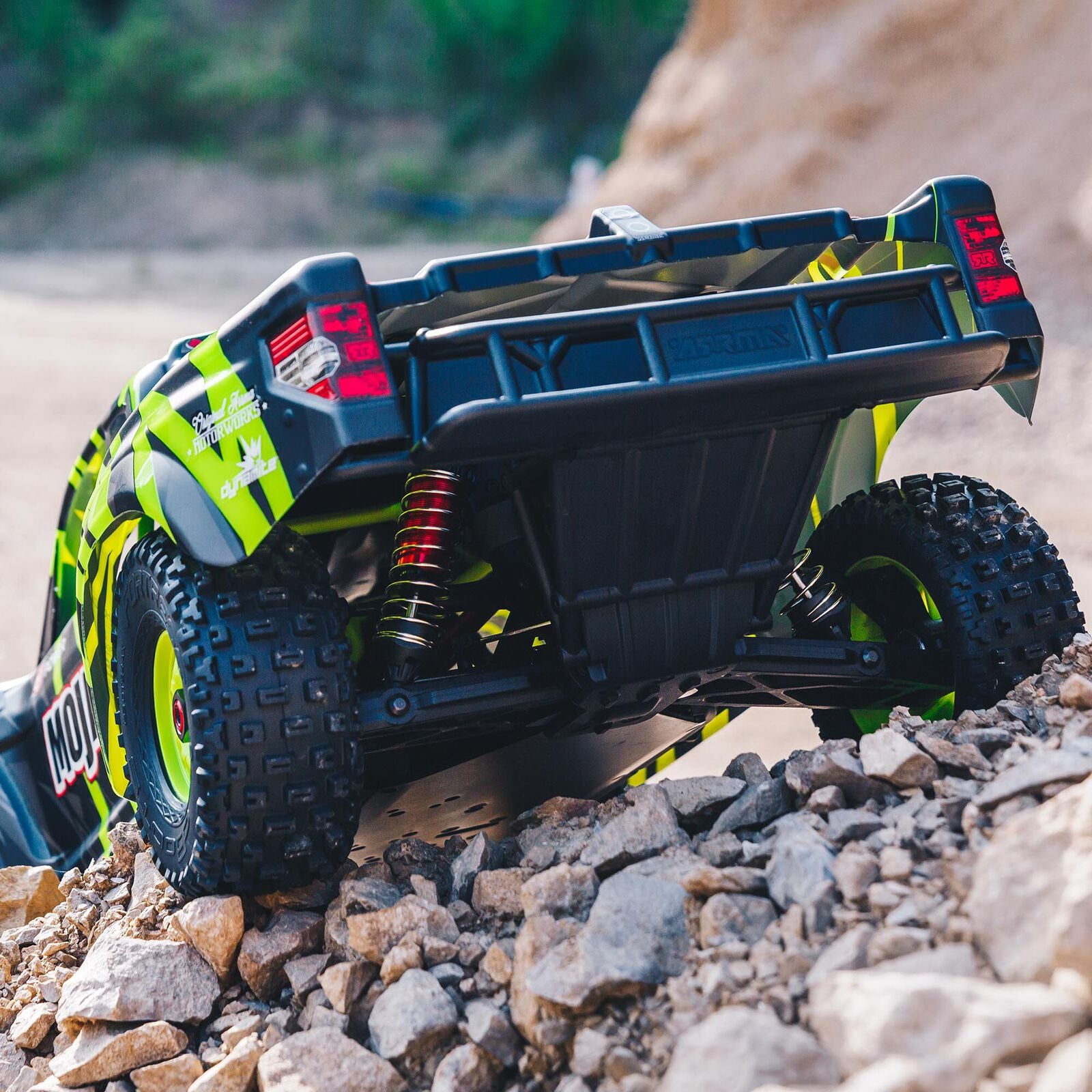

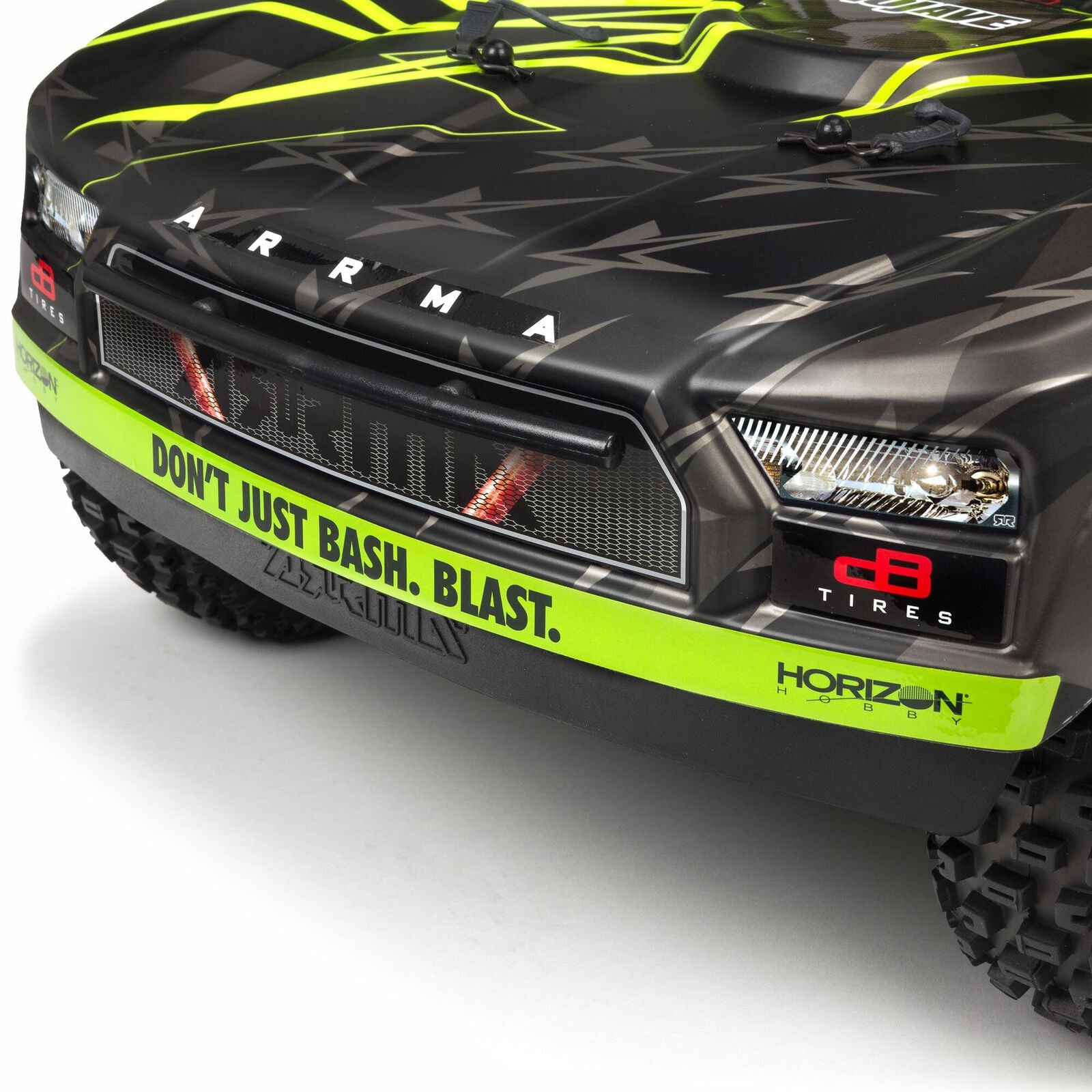

Realistic front and rear bumper protection
Independent suspension for superior handling
Flexible front bumper valance

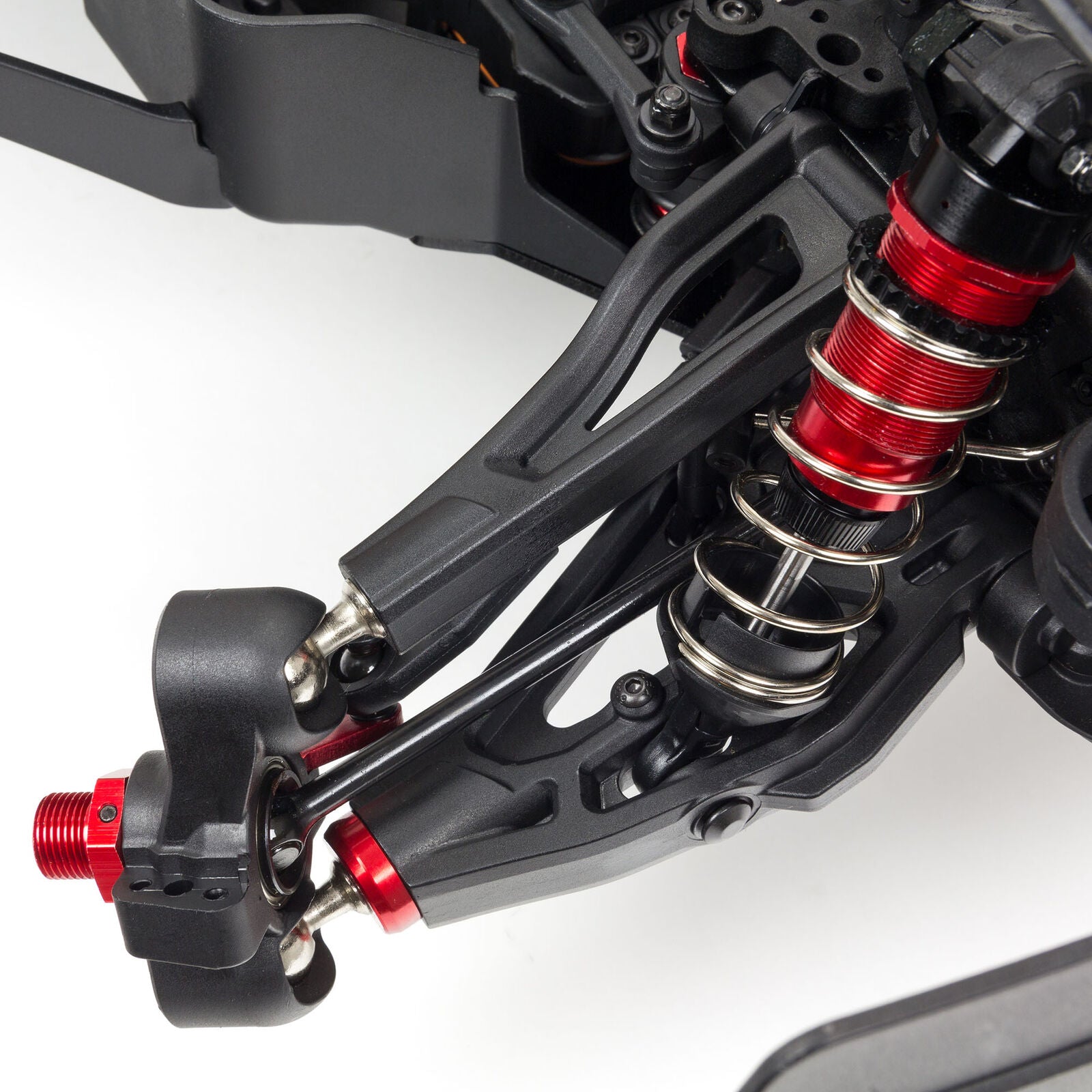

Heavy-duty suspension arms with red-anodised aluminium strengthening cap

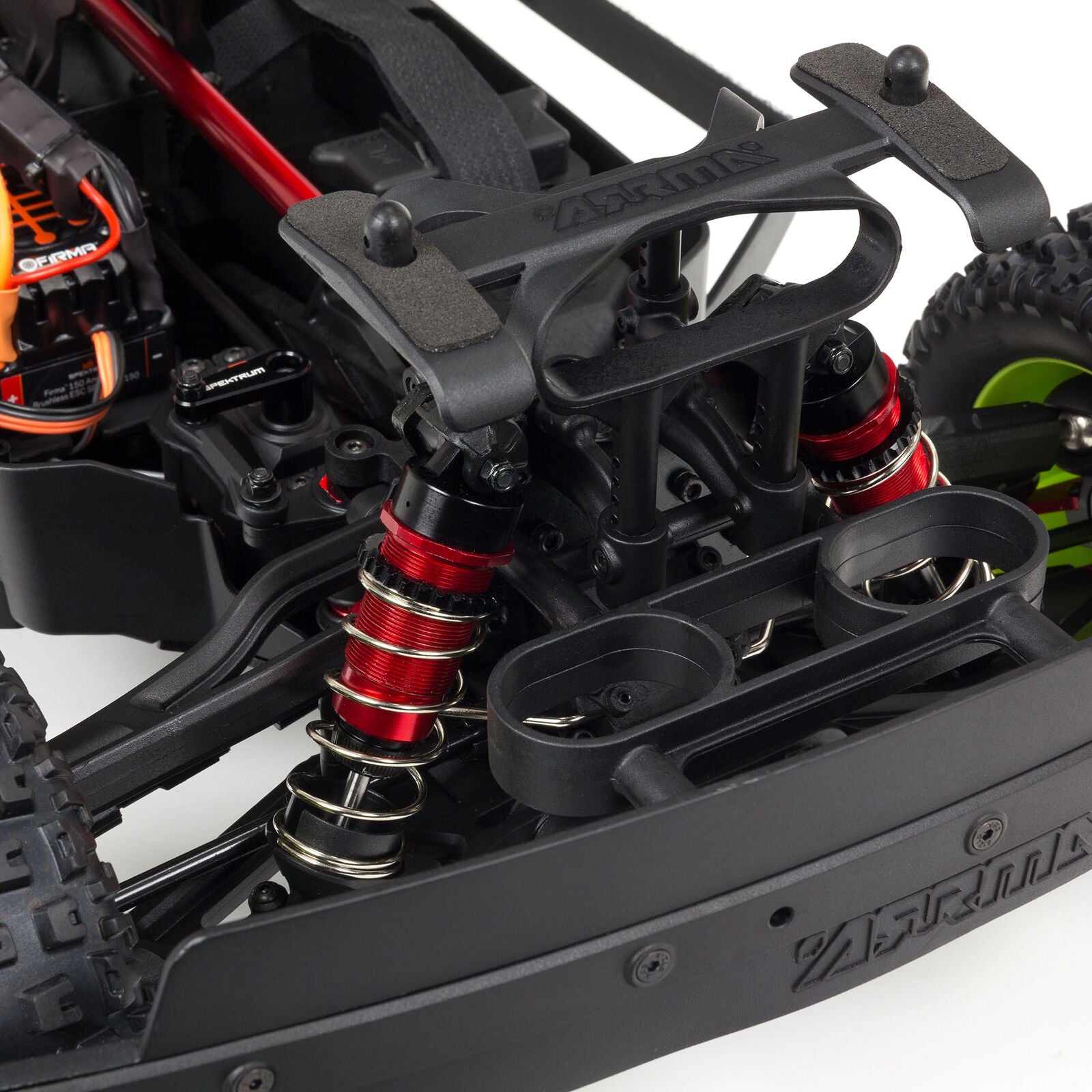

Oil-filled adjustable shocks
Black-anodised aluminium front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals

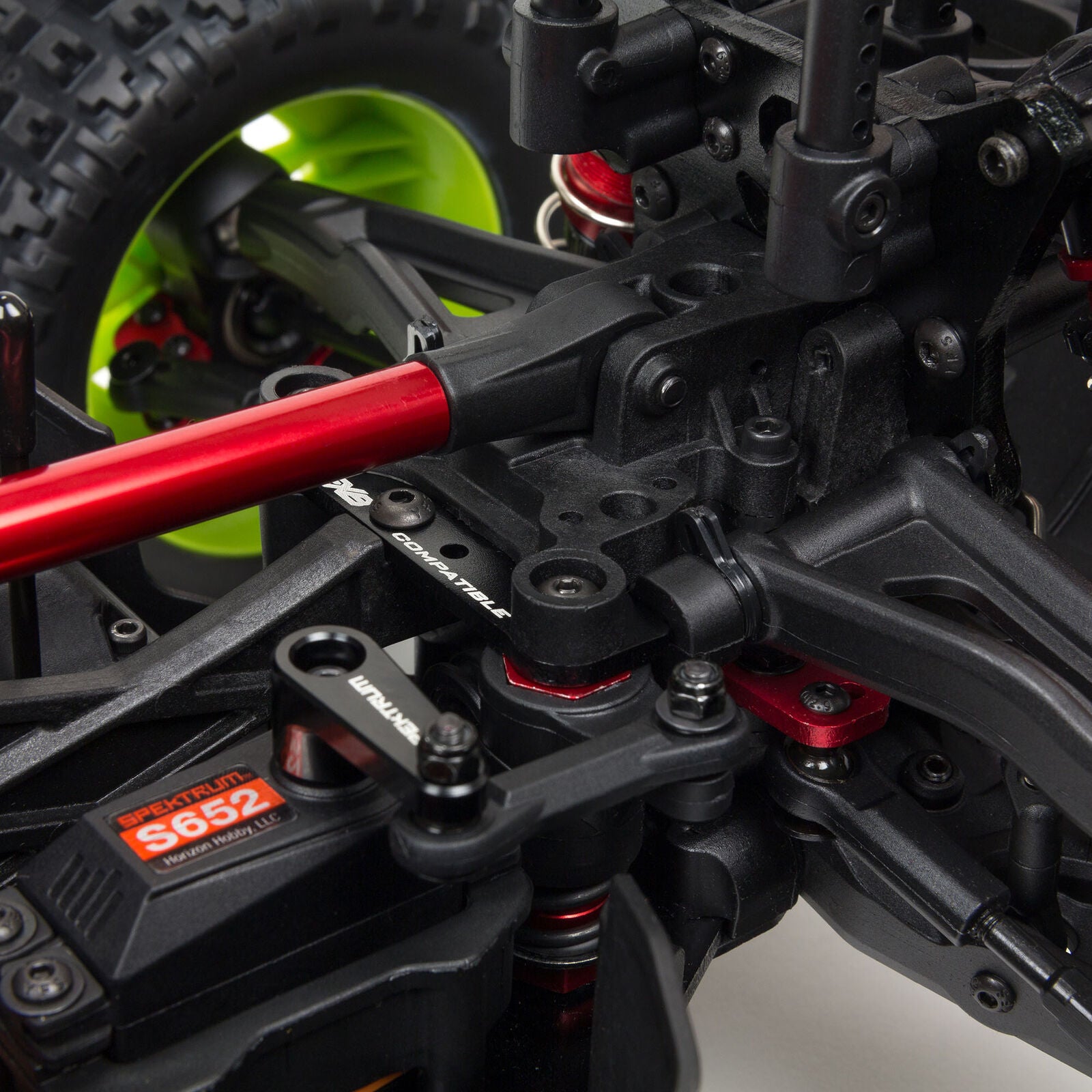

Never-loose red aluminium servo saver
Never-pop ball ends
5-bolt centre diff removal

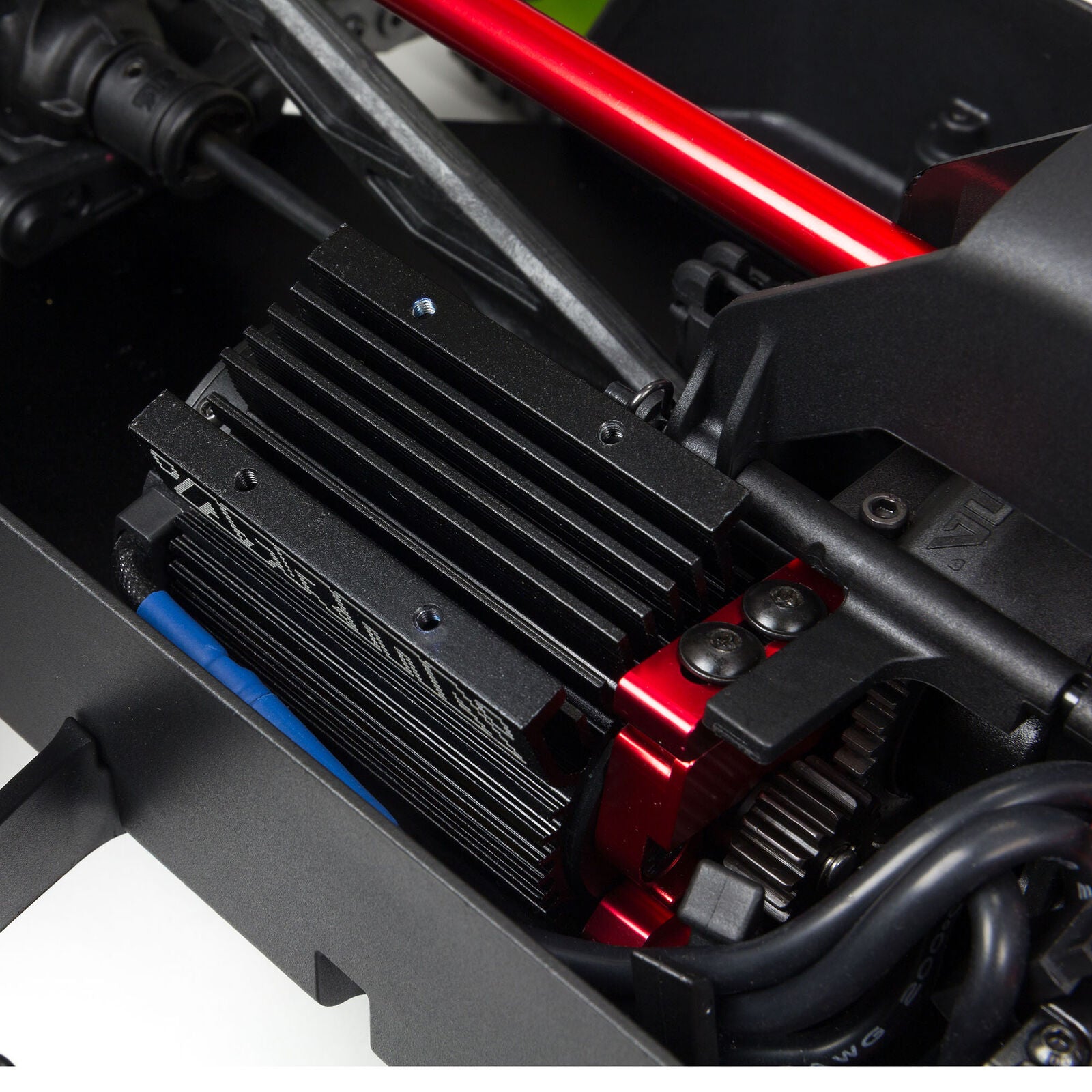

Easy-access sliding motor mount for quick motor removal

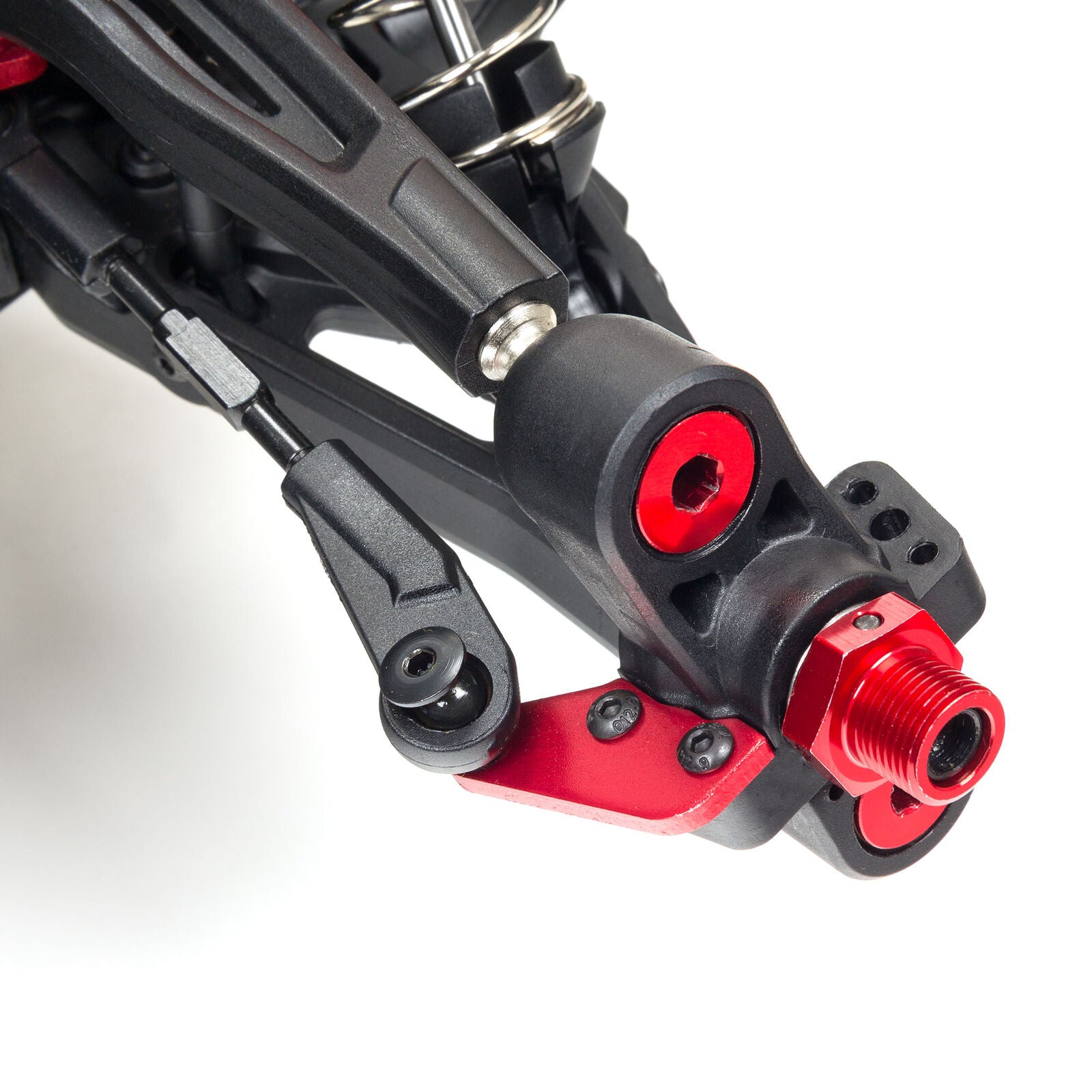

Super-durable wheel hubs for increased strength
Colour-coordinated multi split-spoke wheels
Multi-terrain dBoots FORTRESS tyres

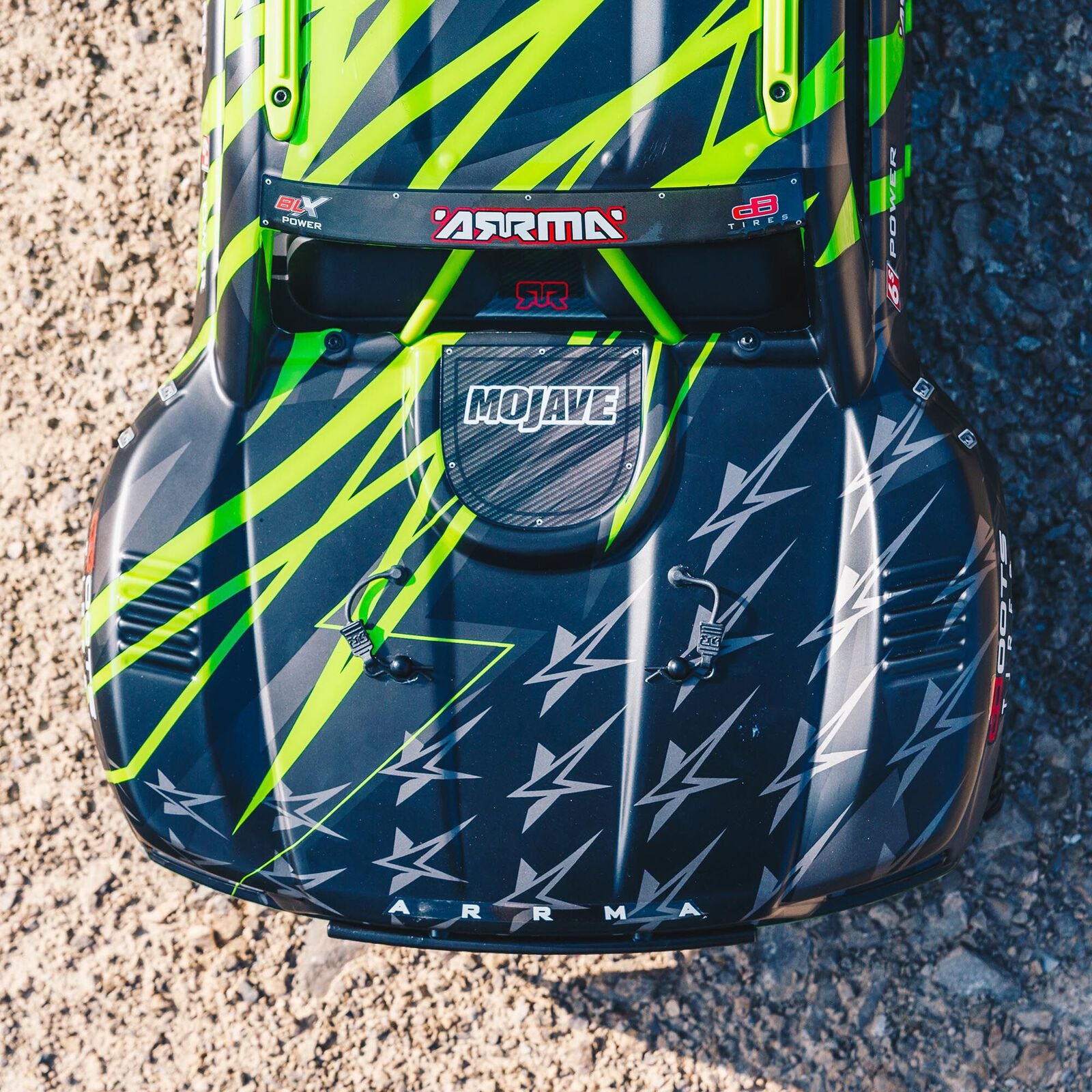

Multi-finish matte and gloss body

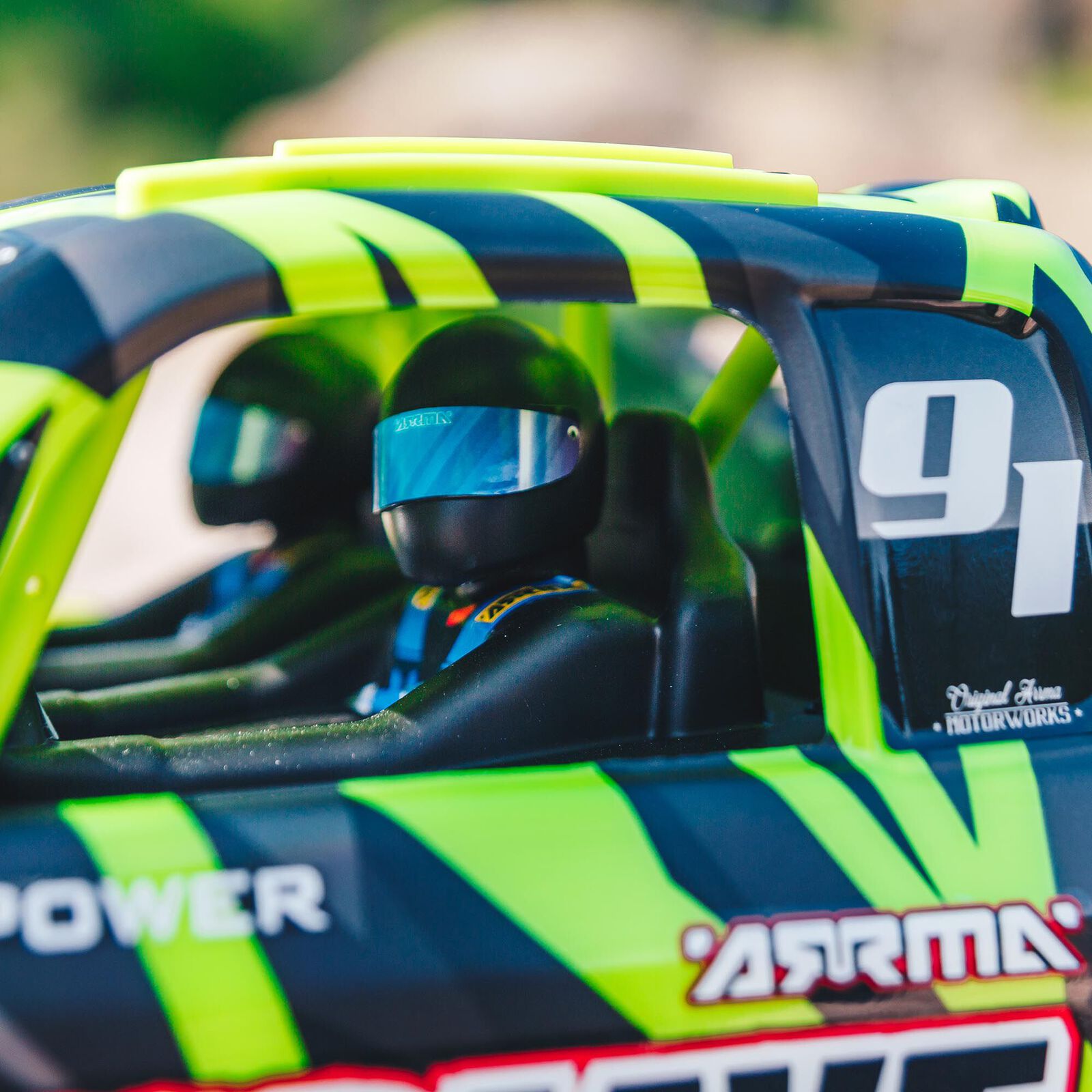

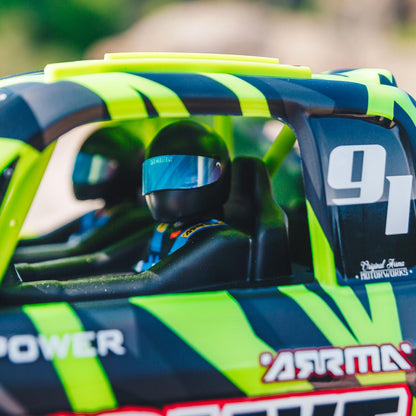

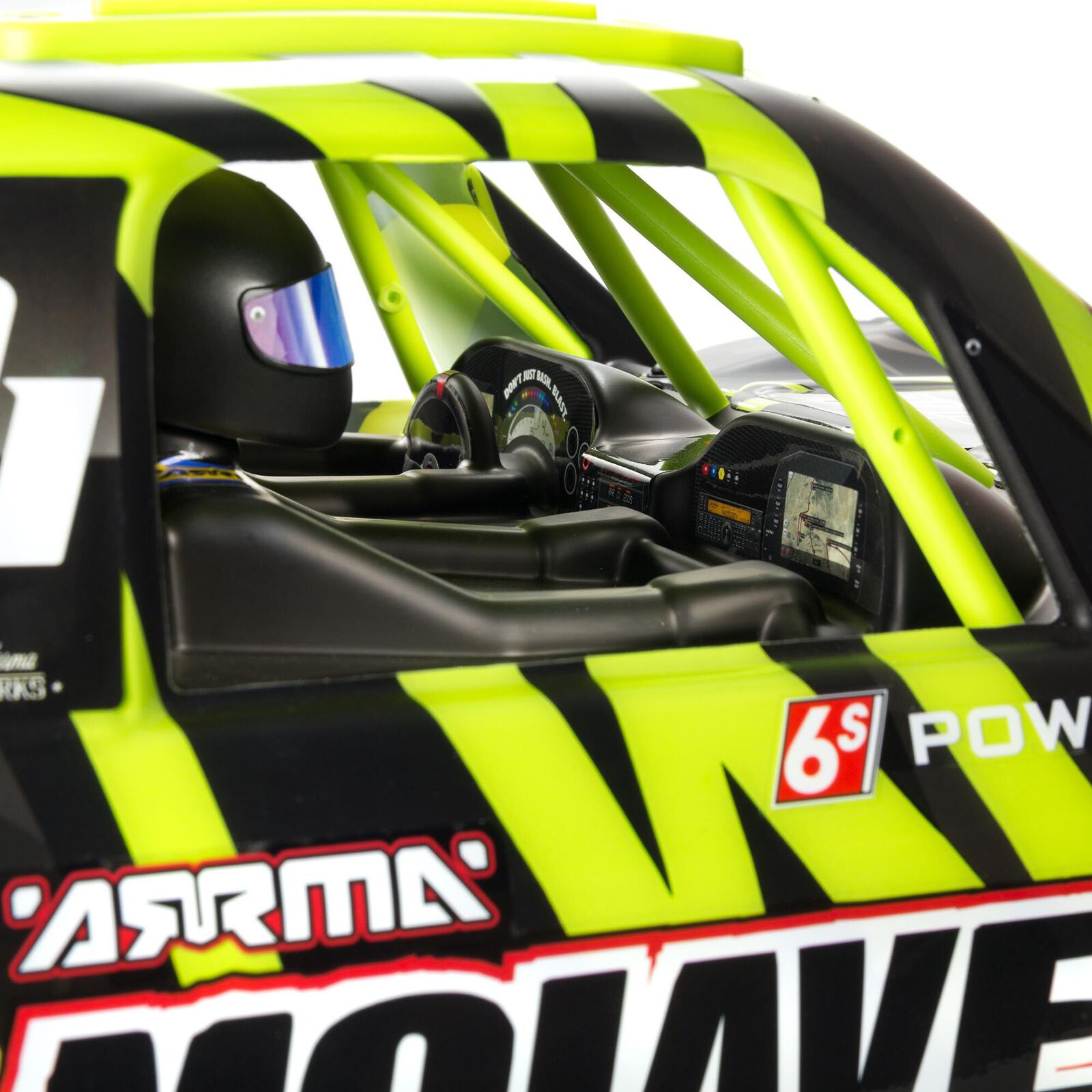

Realistic cockpit detail
Ultra-detailed decals
Colour-coordinated protective roll cage and roof rails
IC5 connectors (EC5 compatible)
2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual

Overview

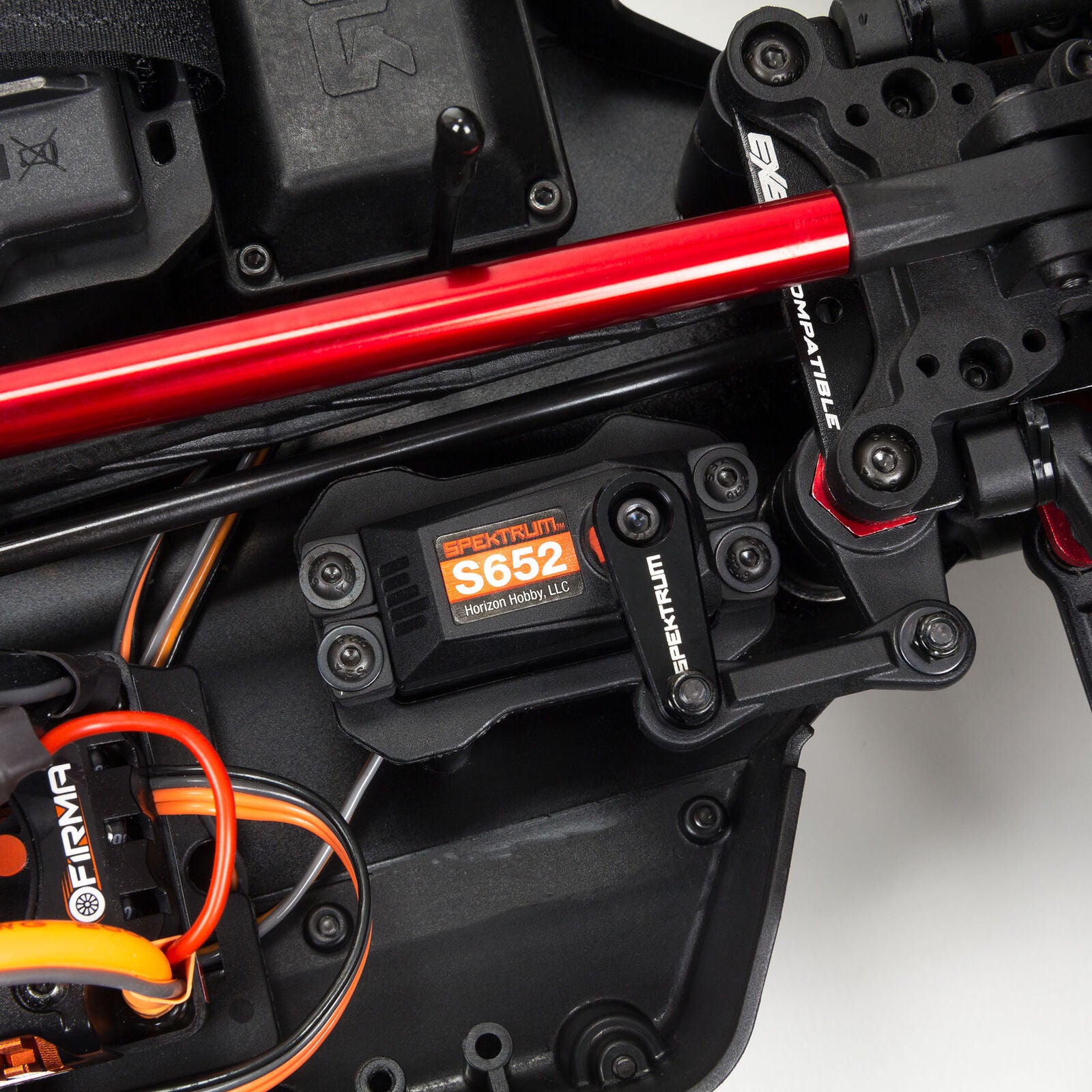

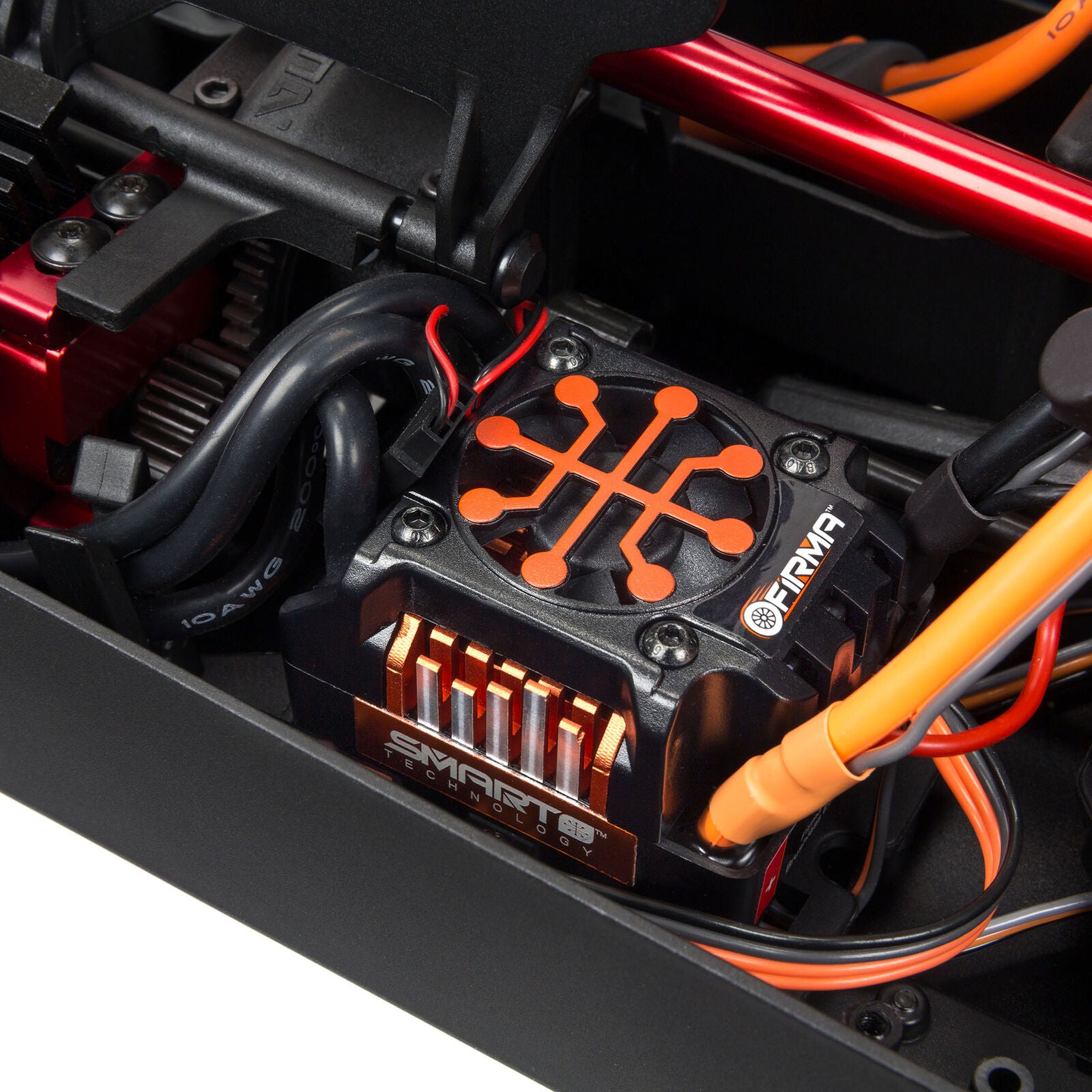

ARRMA engineers have updated the MOJAVE 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminium and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA also includes a new, steel gear Spektrum S652 digital servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

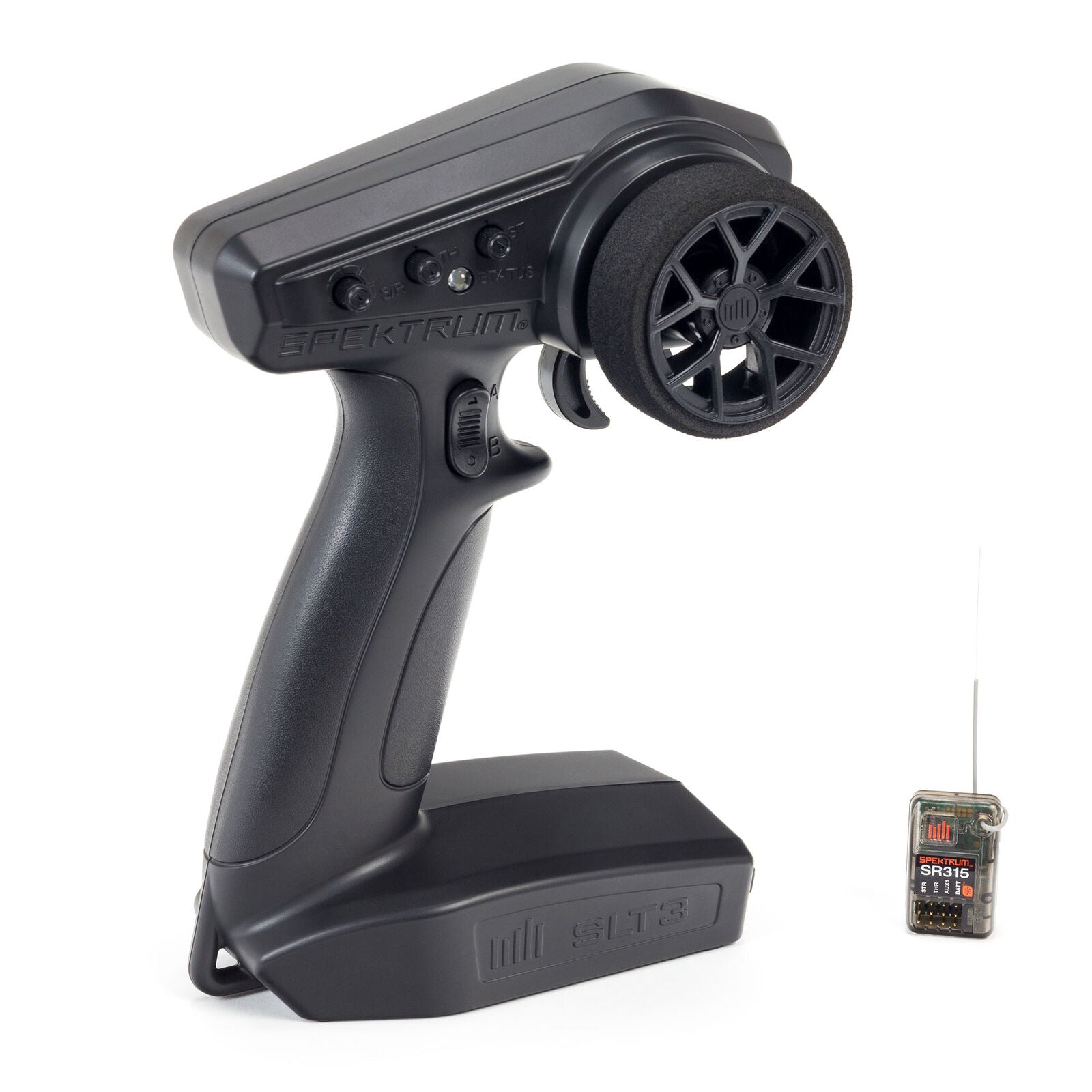

The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3 is compatible with Tactic SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR protocols, you can easily upgrade to a Spektrum DSMR transmitter later — then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

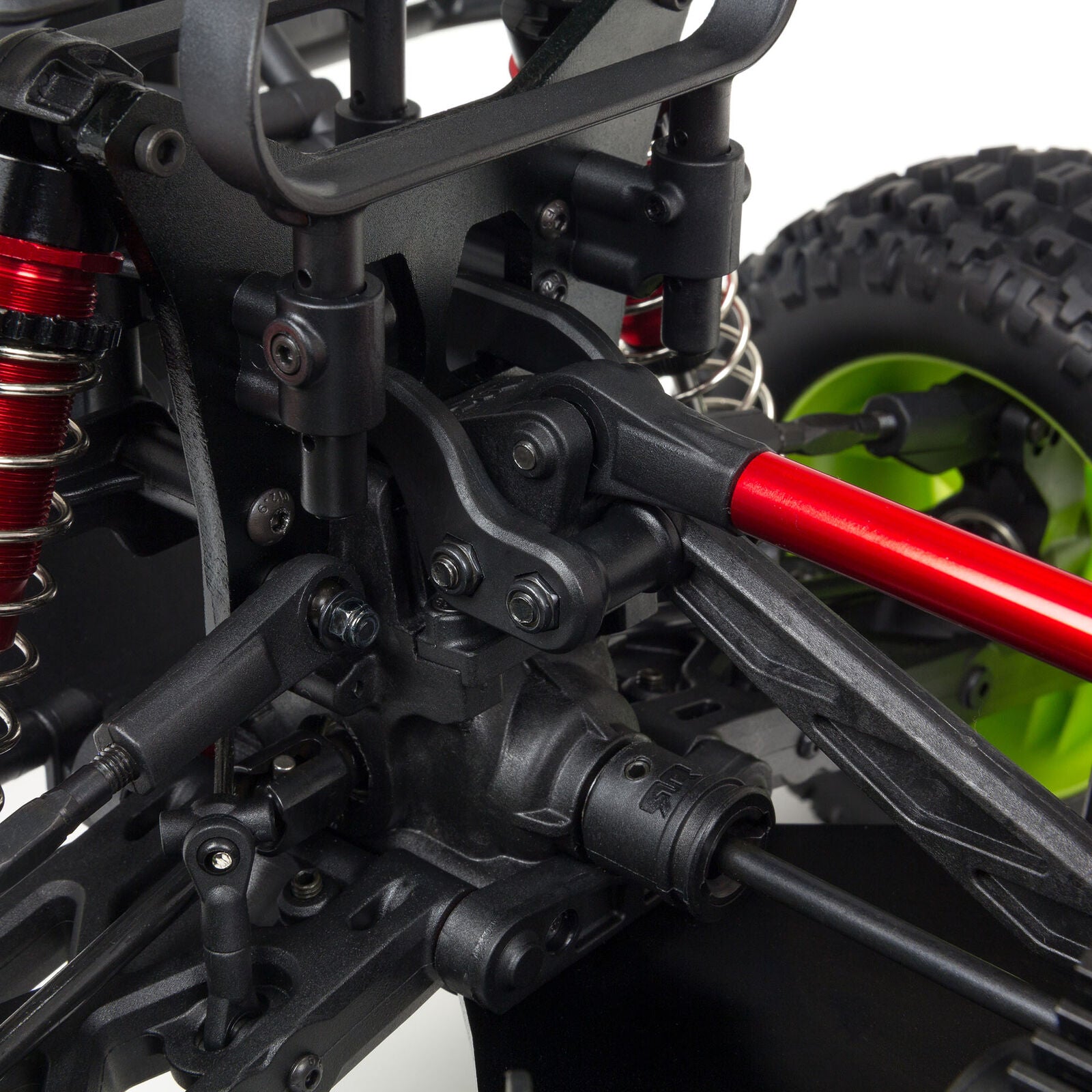

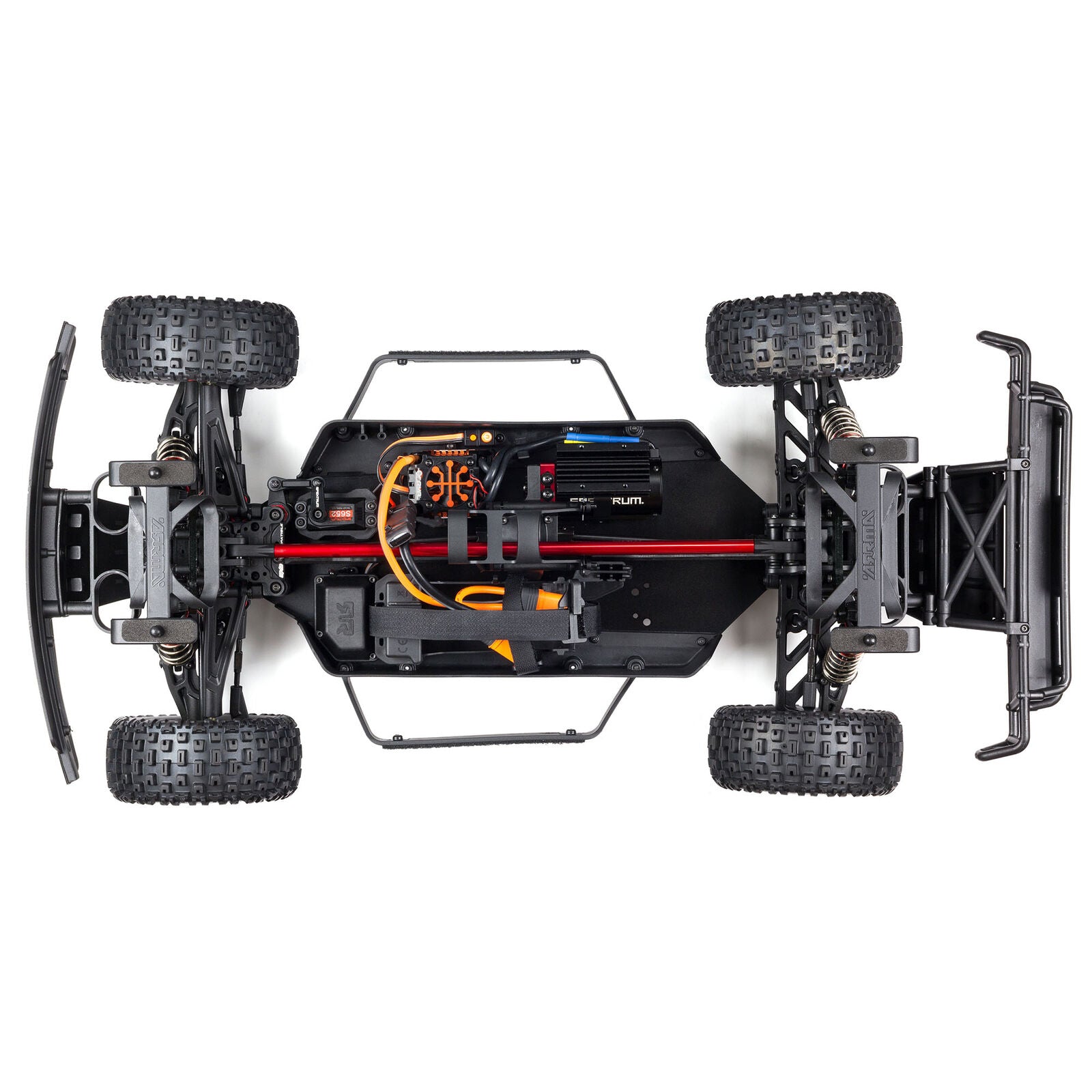

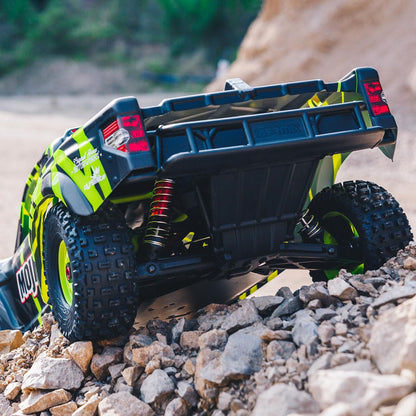

With the rugged construction of the MOJAVE 6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodised aluminium chassis is reinforced with front, rear and centre braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.

The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ mph speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the centre diff for maintenance by taking out just five bolts.

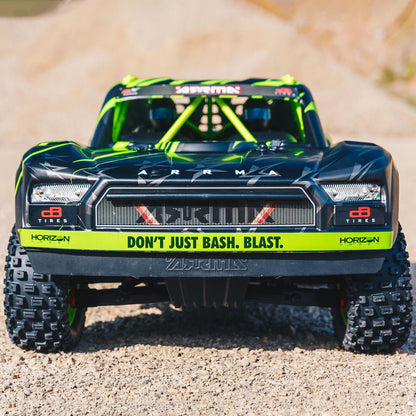

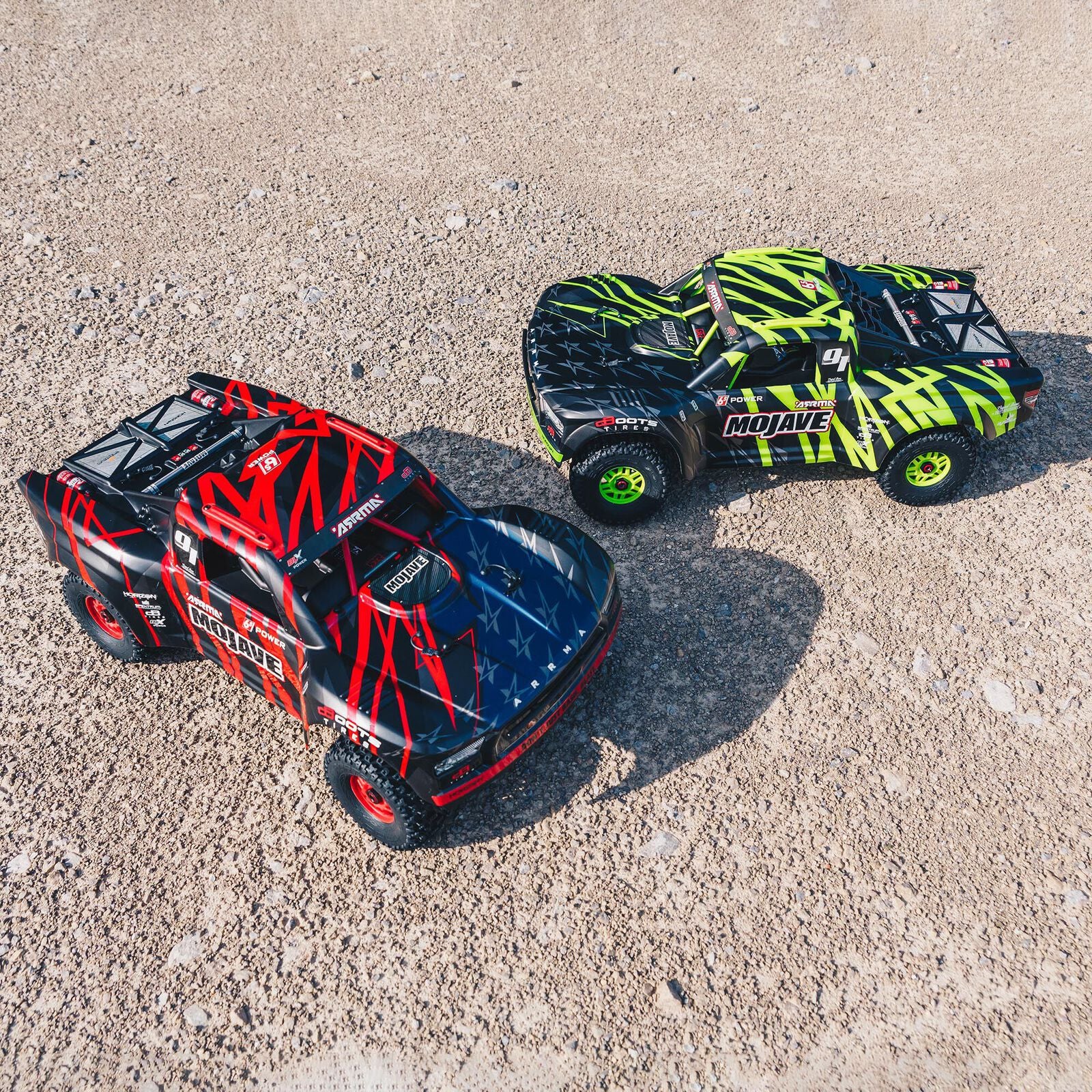

Multi-terrain dBoots FORTRESS tyres on multi split-spoke wheels give your MOJAVE 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decalled desert truck body, colour-coordinated roll cage and roof rails, and even a detailed cockpit.

Specifications

Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Battery: Sold separately
Body: Painted, decaled and trimmed
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold separately
Chassis: 3 mm 6061-T6 aluminium
Completion Level: Ready-to-Run
Connector Type: IC5, EC5
Differential: 3-gear
Drive Type: Forward/Brake/Reverse
Drivetrain: 4WD
Final Drive Ratio: 13.44
Front Shock Spring Rate: 3.2 f-lb/in
Front Track: 355 mm
Gear Pitch: 1.0 MOD
Internal Gear Ratio: 4.3
LiPo Compatibility: 6S, 4S
Motor Size: FIRMA 4074 2050Kv brushless motor
Motor Type: Brushless
Pinion: 16T
Power System: 6S
Power Type: Electric
Product Height: 269 mm
Product Length: 715 mm
Product Weight: 5400 g
Product Width: 355 mm
Radio: Included
Rear Shock Spring Rate: 7.7 f-lb/in
Rear Track: 355 mm
Receiver: Included
Scale: 1/7
Servos: Included
Shock Type: Aluminium body, oil-filled adjustable
Speed Control: Included
Spur Gear: 50T
Steering Type: 2WS
Suspension: Independent
Technology: Smart, dual-protocol RX (DSMR/SLT)
Tyre Tread: dBoots FORTRESS
Tyre Type: Multi-surface
Top Speed: 97+ km/h
Vehicle Size: Large
Vehicle Type: Short course truck
Water-Resistant: Yes
Wheel Hex Size: 17 mm
Wheel Type: 1/7 SC, 17 mm hex, multi split-spoke
Wheel Width: 42 mm
