ARRMA 1/7 LIMITLESS 6S 4X4 Roller Brushless Street Speed

Optimised for 8S power, this evolution of the ARRMA LIMITLESS 1/7 scale Speed Bash Roller lets you go even faster than ever before. Now you can own the RC supercar that famously beat a championship Formula One machine by covering 402 metres in just 8.6 seconds.

In the Box

(1) ARRMA LIMITLESS 1/7 scale all-road Speed Bash Roller
(1) Customisable clear body and nose cone
(1) Decal sheet
(1) Window mask sheet
(1) 1/7 LIMITLESS V2 Speed Bash Roller manual

Needed to Complete

(1) 2+ channel transmitter and receiver
(1) Metal-geared high-torque steering servo (23T spline, standard size)
(1) Electronic speed control (8S recommended)
(1) Motor (50 series – maximum dimensions 110 mm length x 50 mm diameter, 25 mm screw pitch)
(2) 4S LiPo batteries
(1) Compatible LiPo battery charger
(1) Mod 1 pinion gear (to suit chosen motor)

Features

Easy-access sliding motor mount accepts larger diameter motors
3 mm chassis plate repositions the motor mount to also accept longer motors
39T Mod 1.0 spool with long rear outdrive combines with a shorter rear centre driveshaft to reduce drivetrain vibration
Easy-access electronics module accepts larger ESCs and includes a waterproof receiver box
Safe-D input cups are included on the front and rear gearboxes
GP5 gears feature a lower ratio to reduce centreline drivetrain speed and vibration
Wider rear track increases stability
Stiffer front springs and sway bar improve high-speed handling

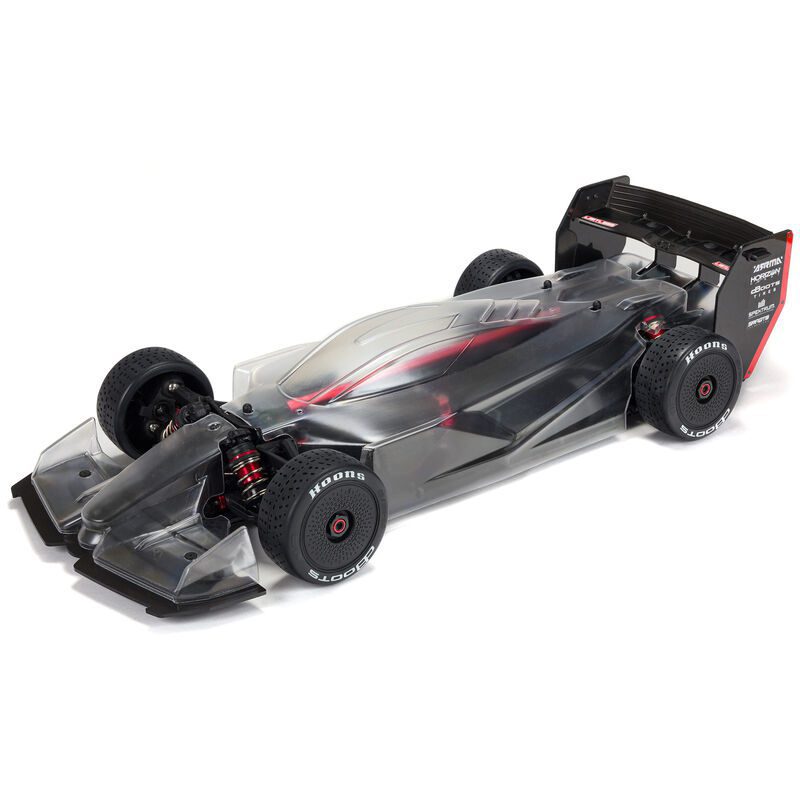

The first ARRMA “Rattle Can Roller” includes a clear, low-drag body for your own custom paint scheme — window masks and decals are included
Tunable aerodynamics with trim lines on the front and rear wings to adjust downforce and drag
Includes dBoots Hoons all-road tyres on speed dish wheels
Two large battery straps with additional perpendicular hook-and-loop straps provide secure battery retention

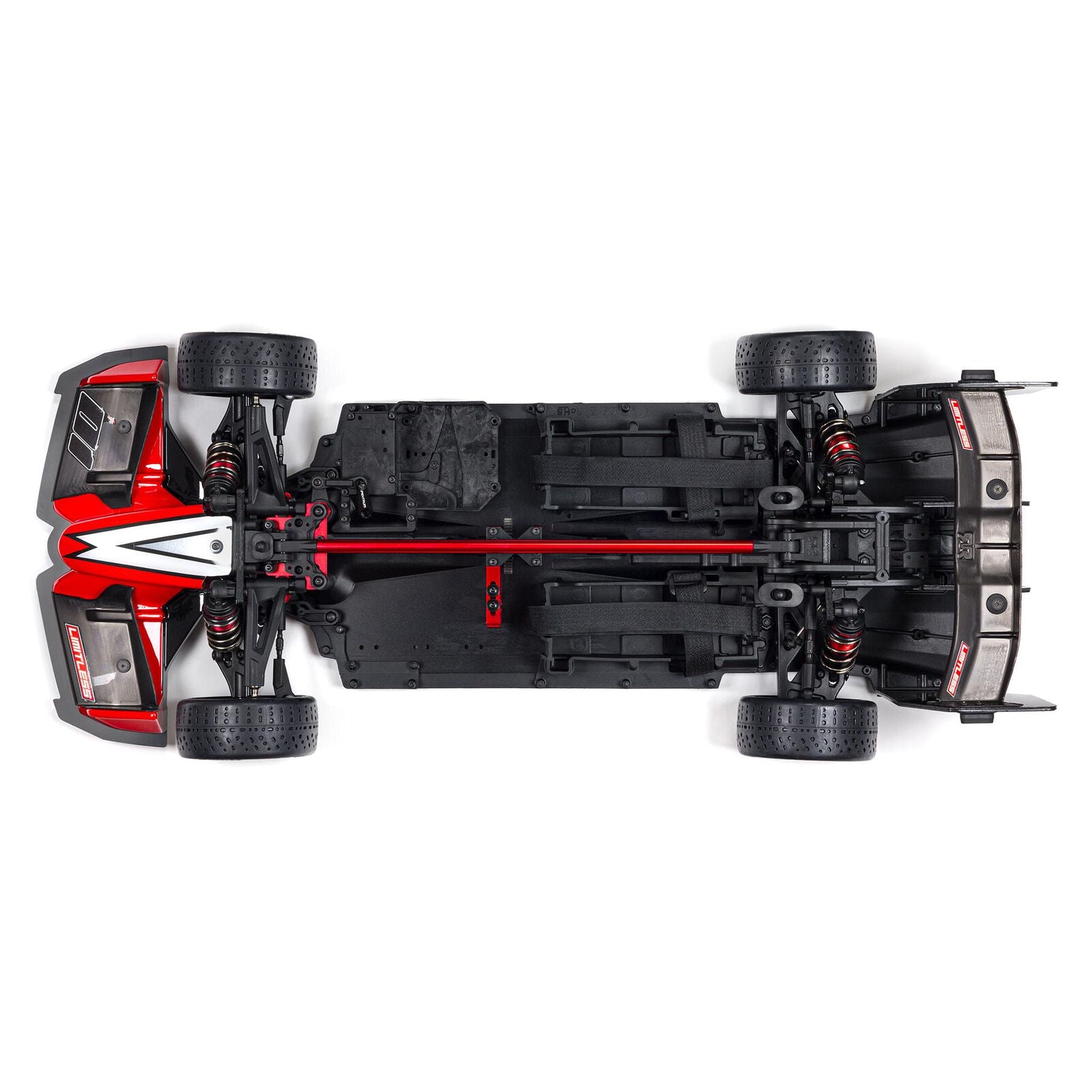

Front-to-rear chassis brace increases longitudinal chassis stiffness
Heavy-duty servo saver
Durable steel driveshafts
Big bore aluminium shocks
Black anodised front and rear shock towers
Independent double wishbone suspension front and rear

Overview

Taking over from the original LIMITLESS 1/7 scale All-Road Speed Bash Roller, this latest evolution has been designed to go faster than ever before. ARRMA engineers have refined the already proven LIMITLESS platform to accept larger motors and higher-capacity ESCs — simply add your choice of electronics to create an RC supercar. Sitting at the very top of the ARRMA Speed Bash range, the LIMITLESS 1/7 scale All-Road Speed Bash Roller is the new benchmark for extreme speed running.

In a head-to-head challenge against the championship-winning Red Bull Racing RB7 Formula One car, the LIMITLESS proved its credentials by coming out on top. Reaching speeds of up to approximately 240 km/h, it covered 402 metres in just 8.6 seconds.

Because the LIMITLESS 1/7 scale All-Road Speed Bash Roller allows you to choose your own electronics package, you can tailor the power system to suit your needs as your speed-running skills develop. ARRMA has optimised this rolling chassis with drivetrain and motor mount components specifically designed for extreme 8S high-speed performance.

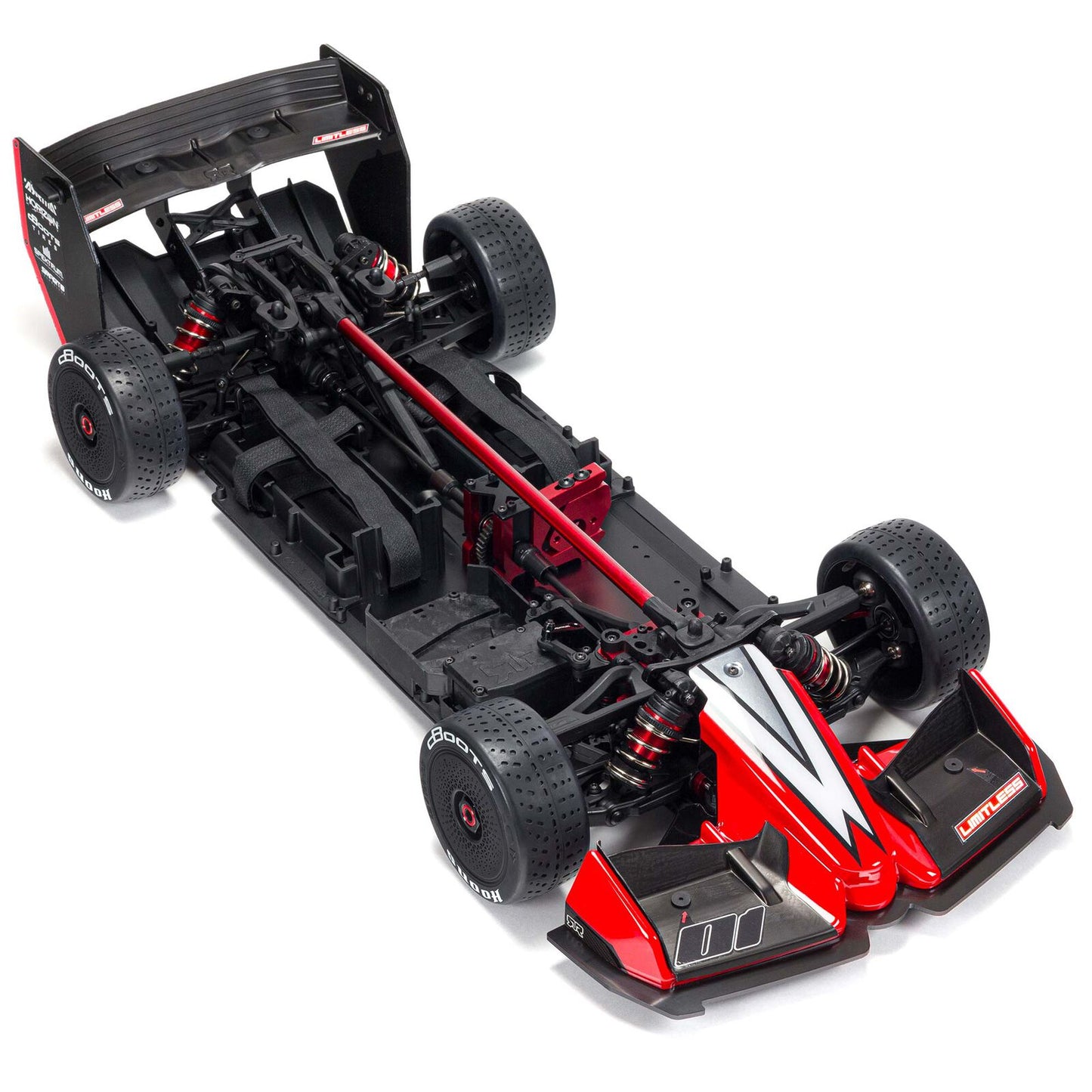

Key upgrades include a 3 mm anodised aluminium chassis plate that repositions the motor mount to accept longer motors. The easy-access sliding motor mount can accommodate larger diameter motors with an optional motor mounting plate, while the electronics module accepts larger ESCs and includes a waterproof receiver box.

Further improvements enhance stability and control at very high speeds. A 39T Mod 1.0 spool with a long rear outdrive is paired with a shorter rear centre driveshaft to equalise driveshaft lengths and reduce drivetrain vibration. Lower-ratio GP5 gears further reduce centreline drivetrain speed and vibration. A wider rear track increases stability, while stiffer front springs and a sway bar improve high-speed handling.

Carried over from the original LIMITLESS design are big bore oil-filled shocks mounted on black anodised front and rear shock towers. These keep the dBoots Hoons all-road tyres firmly planted, delivering maximum traction on tarmac, light off-road surfaces, loose gravel, short grass, dirt, and oval tracks.

In addition to being the fastest ARRMA Speed Bash vehicle, the LIMITLESS is also the first ARRMA “Rattle Can Roller.” The low-drag body comes unpainted, ready for you to create your own custom finish. Window masks and decals are included, while trim lines on the front and rear wings make it easy to fine-tune downforce and drag.

The ultimate RC speed machine experience starts here. Install your preferred electronics, paint the body in your signature colours, and build your own high-speed RC supercar with the ARRMA LIMITLESS 1/7 scale All-Road Speed Bash Roller.

Specifications

Approximate assembly time: 1–3 hours
Ball bearings: Rubber-shielded bearings
Battery: Sold separately
Body: LIMITLESS, supplied clear and trimmed, decal sheet included
Brakes: Integral with ESC (ESC sold separately)
Charger: Sold separately
Chassis: 3 mm plate, 6061-T6 aluminium
Completion level: Roller
Differential: Two oil-filled metal gear diffs
Drivetrain: 4WD
Front track: 310 mm
Gear pitch: 1.0 MOD
Ground clearance: 15 mm
Inner tyre / outer wheel diameter: 83 mm
Internal gear ratio: 2.8:1
LiPo compatibility: 4S, 6S, 8S
Power type: Electric
Product height: 165 mm
Product length: 730 mm
Product weight: 3.9 kg
Product width: 312 mm
Radio: Sold separately
Rear track: 312 mm
Receiver: Sold separately
Scale: 1/7
Servos: Sold separately
Shock type: Aluminium oil-filled shocks, 77 mm front, 87 mm rear
Speed control: Sold separately
Spur gear: 39T
Suspension: Independent
Tyre compound: White
Tyre tread: Hoons
Top speed: 175+ km/h
Vehicle size: Large
Vehicle type: Super car
Wheel hex size: 17 mm
Wheel width: 43 mm
Wheelbase: 406 mm
