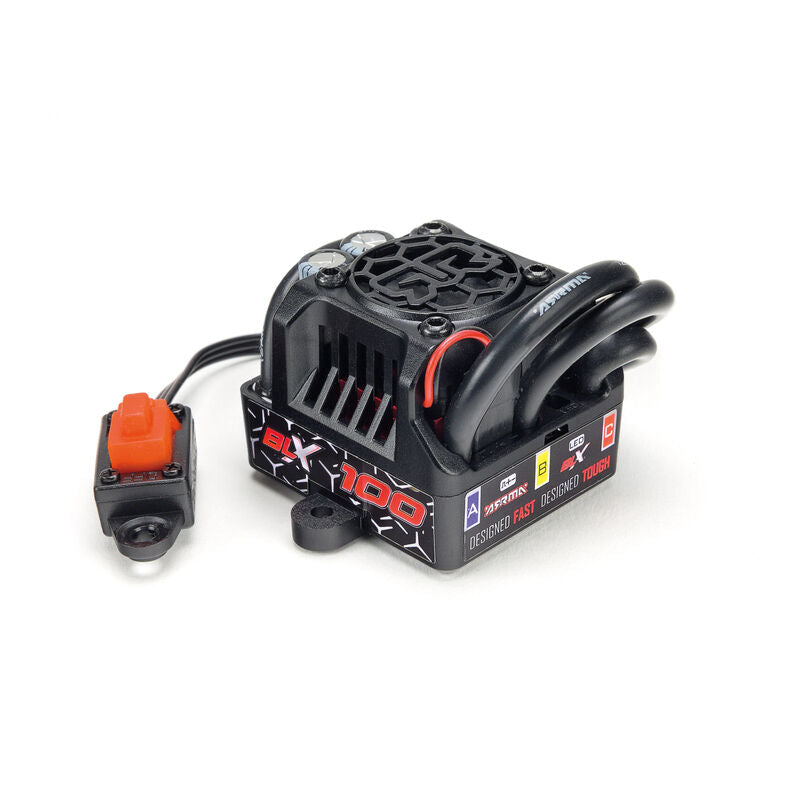

BLX100 Brushless 10th 3S ESC 4x4

The Arrma BLX100 Brushless ESC (model ARAM0160) delivers reliable, high-performance power for 1/10-scale 4x4 vehicles. Rated for 100 A continual flow and designed to handle 3S LiPo batteries, it offers a rugged, waterproof construction with smart heat control and robust electrical protection.

Features

• Continuous current: 100 A—optimized for high-demand driving
• Waterproof build with built-in cooling fan to manage temperature during intense use
• EC5 battery connector plus 12 AWG heavy-gauge wiring ensure secure, low-resistance power delivery
• Multi-mode throttle profiles: forward, brake, and reverse
• Comprehensive protection: over-voltage limit (12.6 V), LiPo low-voltage cutoff (3.4 V per cell), and thermal auto-shutdown (125 °C threshold)

What’s Included

• Arrma BLX100 Brushless ESC (model ARAM0160)

What You’ll Need

• Brushless motor compatible with your vehicle's drivetrain
• 2–3 S LiPo battery or 4–9 cell NiMH/NiCd pack

Specifications

• Battery Types: 2 S–3 S LiPo (7.4–11.1 V) or 4–9 cells NiMH/NiCd (<12.6 V)
• BEC Output: 6 V / 4 A
• ESC Dimensions (L × W × H): 43 mm × 54.5 mm × 34 mm
• Weight: ~120 g
• Connector Type: EC5 (battery), 4 mm bullet (motor)
