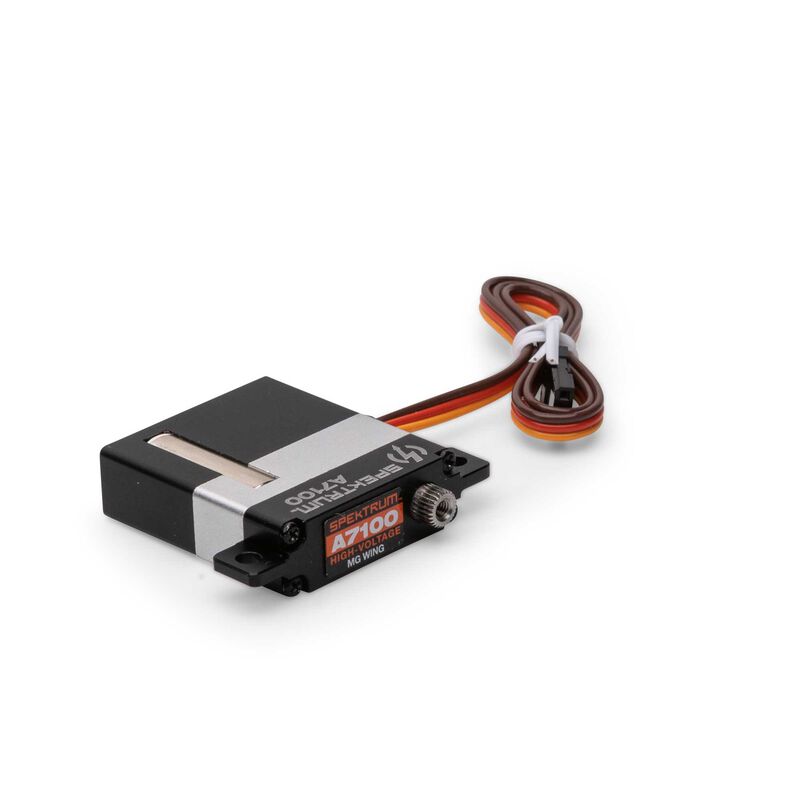

A7100 MT/MS Metal Gear HV Wing Servo
A7100 MT/MS Metal Gear HV Wing Servo
SKU:SPMSA7100
Share
Spektrum A7100 is a digital high-voltage wing servo for thin-wing aircraft and sailplanes. It uses a coreless motor, all-metal gears, a single ball bearing and an aluminium case, with rated performance of 8.3 kg-cm (115 oz-in) torque and 0.078 sec/60° transit speed at 8.4 V.
Included
(1) A7100 Wing Servo
(1) Double-Sided Plastic Servo Arm
(1) 25.4 mm (1 in) Red Anodised Aluminium Servo Arm
Features
Digital high-voltage wing servo
Designed for thin-wing aircraft and sailplanes
Coreless motor
All-metal gear train
Single ball bearing
Aluminium case
Over-current protection
Temperature protection
Operating frequency of 200–333 Hz
Specifications
Size Category: Specialty
Application: Aircraft
Servo Type: Digital
Motor Type: Coreless
Gear Type: Metal
Gear Material: Metal
Bearings: Single ball bearing
Operating Voltage: 4.8–8.4 V
Torque: 6.9 kg-cm (96 oz-in) at 6.0 V
Torque: 7.2 kg-cm (100 oz-in) at 7.4 V
Torque: 8.3 kg-cm (115 oz-in) at 8.4 V
Speed: 0.091 sec/60° at 6.0 V
Speed: 0.086 sec/60° at 7.4 V
Speed: 0.078 sec/60° at 8.4 V
Operating Frequency: 200–333 Hz
Deadband: Less than 1 µs
Length: 29.97 mm (1.18 in)
Width: 9.9 mm (0.39 in)
Height: 35.05 mm (1.38 in)
Weight: 28 g (1.0 oz)
Connector Type: Z-Connector
