Spektrum
A6390 Analog Mid Torque Mid Speed Aircraft Servo
A6390 Analog Mid Torque Mid Speed Aircraft Servo
SKU:SPMSA6390
Share

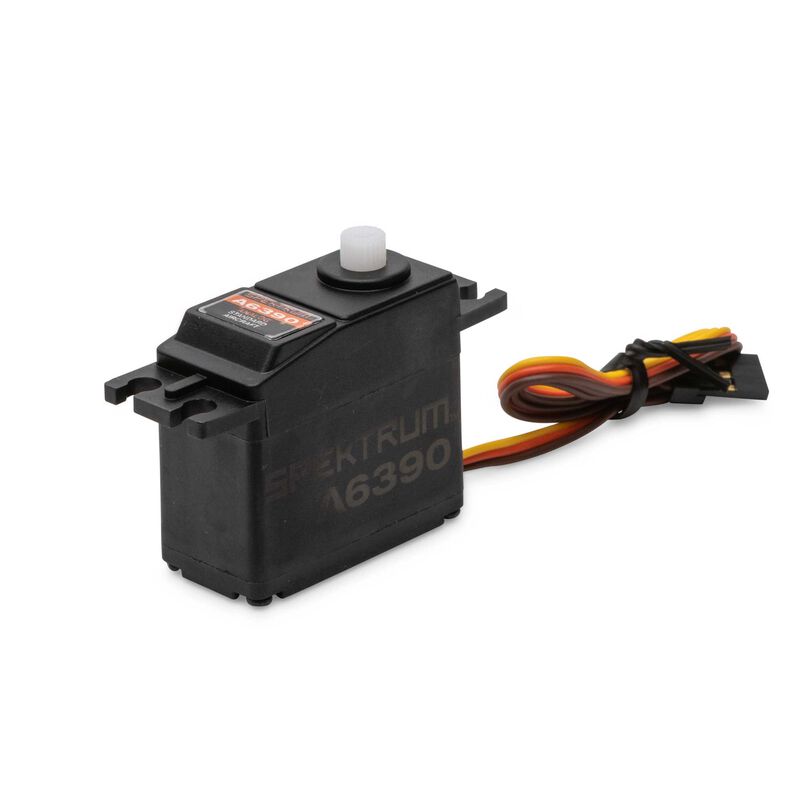

Spektrum A6390 is a standard-size analogue aircraft servo for trainer and sport models up to 60 size. It uses a coreless brushed motor, nylon gears, a single ball bearing and a 23-tooth output spline, with rated performance of 4.8 kg-cm (66.7 oz-in) torque and 0.14 sec/60° transit speed at 6.0 V.
Included
(1) A6390 Servo
(3) Heavy-Duty Plastic Servo Arms
Mounting Hardware
Features
Standard-size analogue aircraft servo
Coreless brushed motor
Nylon gear train
Single ball bearing
23-tooth output spline
Composite plastic case
Suitable for trainer and sport aircraft up to 60 size
120° rotation range
Non-programmable
Specifications
Size Category: Standard
Application: Aircraft
Servo Type: Analogue
Motor Type: Coreless brushed
Gear Type: Nylon
Bearings: Single ball bearing
Output Spline: 23T
Operating Voltage: 4.8–6.0 V
Torque: 3.5 kg-cm (48.6 oz-in) at 4.8 V
Torque: 4.8 kg-cm (66.7 oz-in) at 6.0 V
Speed: 0.17 sec/60° at 4.8 V
Speed: 0.14 sec/60° at 6.0 V
Deadband: 3 µs
Rotation Range: 120°
Length: 39 mm (1.52 in)
Width: 19 mm (0.74 in)
Height: 35 mm (1.36 in)
Weight: 37 g (1.3 oz)
Connector Type: Universal
Connector Wire Length: 305 mm (12 in)
Wire Gauge: 22 AWG
Programmable: No
Water-Resistant: No
