Spektrum

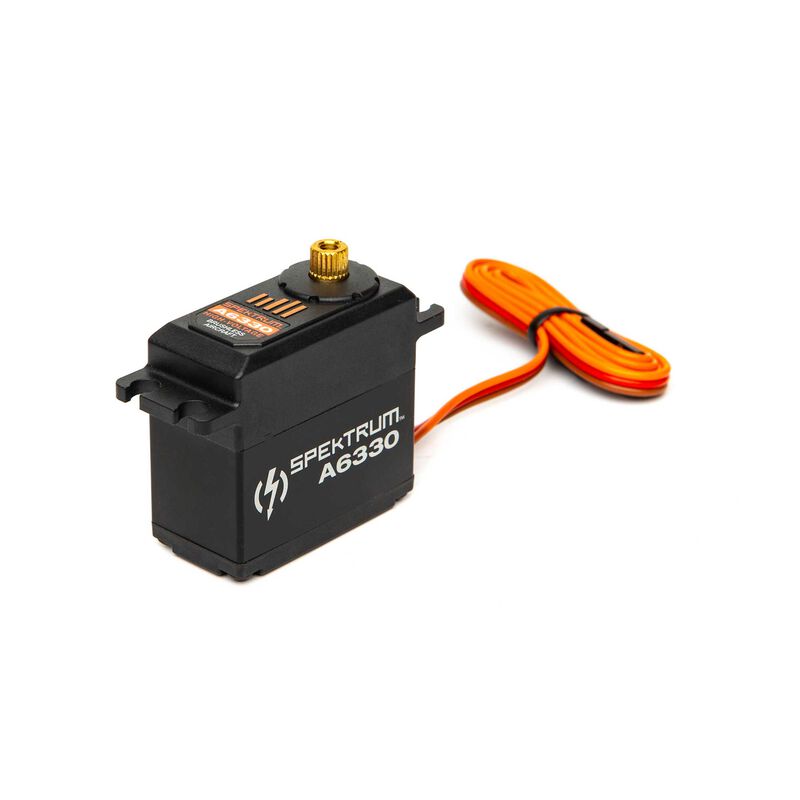

A6330 Digital HV Brushless High Torque Metal Gear Servo
A6330 Digital HV Brushless High Torque Metal Gear Servo
SKU:SPMSA6330
Share
Spektrum A6330 is a standard-size digital high-voltage aircraft servo. It uses a brushless motor, all-metal gears, dual ball bearings, a 23-tooth output spline and an aluminium centre case, with rated performance of 17.86 kg-cm (248 oz-in) torque and 0.10 sec/60° transit speed at 8.4 V.
Features
Digital high-voltage aircraft servo
Standard size
Brushless motor
All-metal gear train
Dual ball bearing-supported drivetrain
23-tooth output spline
Aluminium centre case
Soft-start function
Over-current protection
Temperature protection
Initialisation start tone
Integrated failsafe holds the last known position if signal is lost while power is maintained
50–400 Hz operating frequency
457 mm (18 in) servo lead
Specifications
Size Category: Standard
Application: Aircraft
Servo Type: Digital
Motor Type: Brushless
Gear Type: Metal
Bearings: Dual ball bearing
Output Spline: 23T
Operating Voltage: 6.0–8.4 V
Torque: 9.11 kg-cm (126.6 oz-in) at 6.0 V
Torque: 12.82 kg-cm (178 oz-in) at 7.4 V
Torque: 17.86 kg-cm (248 oz-in) at 8.4 V
Speed: 0.13 sec/60° at 6.0 V
Speed: 0.11 sec/60° at 7.4 V
Speed: 0.10 sec/60° at 8.4 V
Operating Frequency: 50–400 Hz
Rotation Range: 120°
Length: 40 mm (1.58 in)
Width: 20 mm (0.79 in)
Height: 40 mm (1.56 in)
Weight: 71 g (2.25 oz)
Connector Type: Universal
Wire Gauge: 22 AWG
Programmable: No
Overload Protection: Yes
Water-Resistant: No
