Spektrum
A170 HV High Torque High Speed Metal Gear Digital Mini Servo
A170 HV High Torque High Speed Metal Gear Digital Mini Servo
SKU:SPM-1096
Share

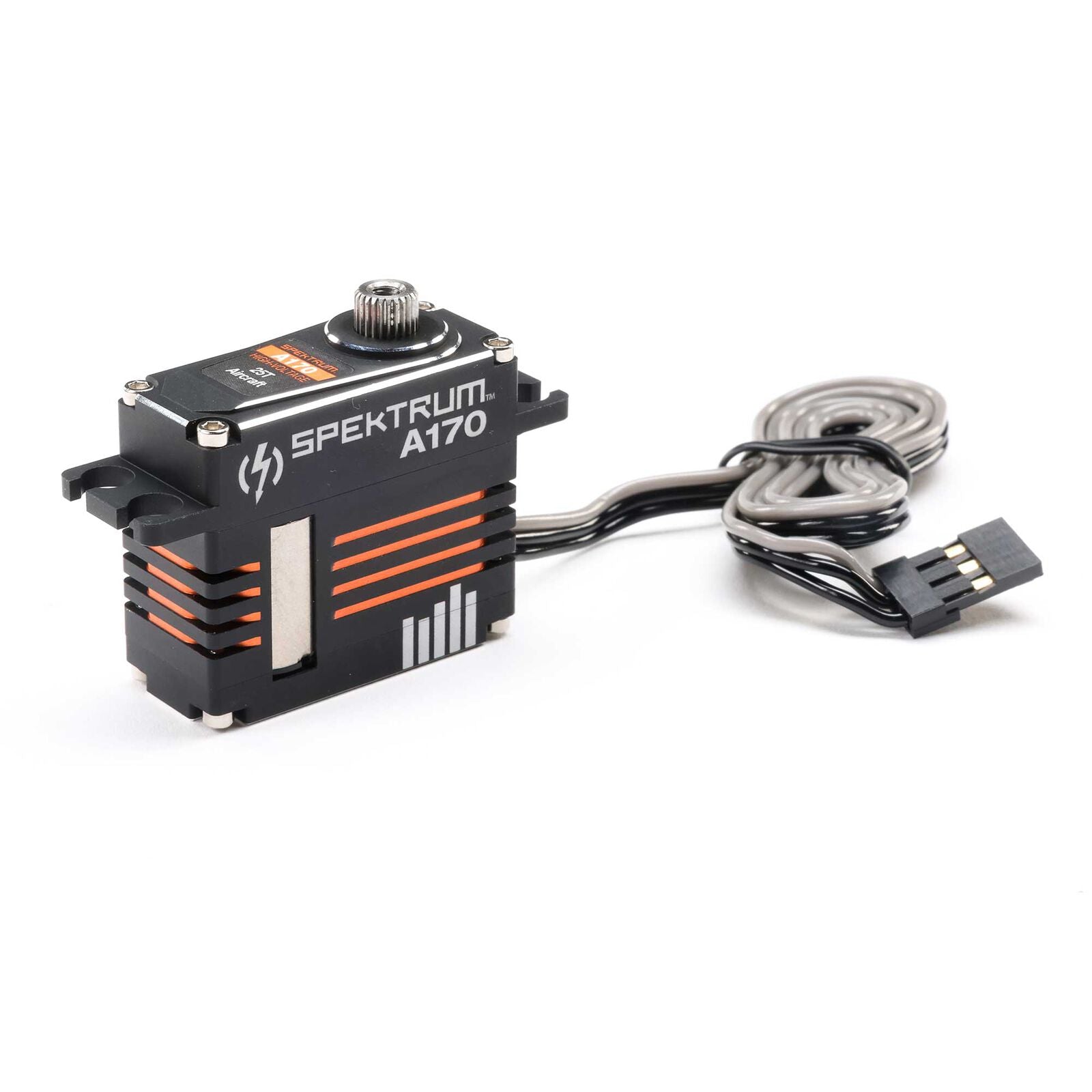

Spektrum A170 High-Voltage High-Torque High-Speed Metal-Geared Digital Mini Servo is a digital high-voltage mini aircraft servo for smaller sport-size and specialty aircraft applications. It uses a brushed coreless motor, metal gears, bearing support, an all-aluminium case and a 25-tooth output spline, with rated performance of 12.2 kg-cm (170 oz-in) torque and 0.08 sec/60° transit speed at 8.4 V.
Included
(1) A170 Mini Digital HV High Torque High-Speed Metal Gear Aircraft Servo
(1) Plastic servo arm set
(1) Mounting grommet, eyelet and hardware set
Features
Digital high-voltage mini aircraft servo
Designed for smaller sport-size and specialty aircraft applications
Brushed coreless motor
Metal gear train
Bearing-supported drivetrain
All-aluminium case for durability and heat dissipation
25-tooth output spline
Universal connector
4.8–8.4 V input voltage
Specifications
Application: Airplane
Servo Type: Digital
Servo Size Category: Mini
Motor Type: Brushed
Gear Type: Metal
Connector Type: Universal
Input Voltage: 4.8–8.4 V
Voltage: 6.0 V, 7.4 V, 8.4 V
Spline Count: 25-tooth
Programmable: No
Length: 35.6 mm (1.40 in)
Width: 15.0 mm (0.60 in)
Height: 30.8 mm (1.21 in)
Weight: 45 g (1.59 oz)
Torque: 7.92 kg-cm (110 oz-in) at 6.0 V, 10.8 kg-cm (150 oz-in) at 7.4 V, 12.2 kg-cm (170 oz-in) at 8.4 V
Maximum Servo Speed: 0.11 sec/60° at 6.0 V, 0.09 sec/60° at 7.4 V, 0.08 sec/60° at 8.4 V
