E-flite
40-Amp Pro Switch-Mode BEC Brushless ESC
40-Amp Pro Switch-Mode BEC Brushless ESC
SKU:EFLA1040B
Share

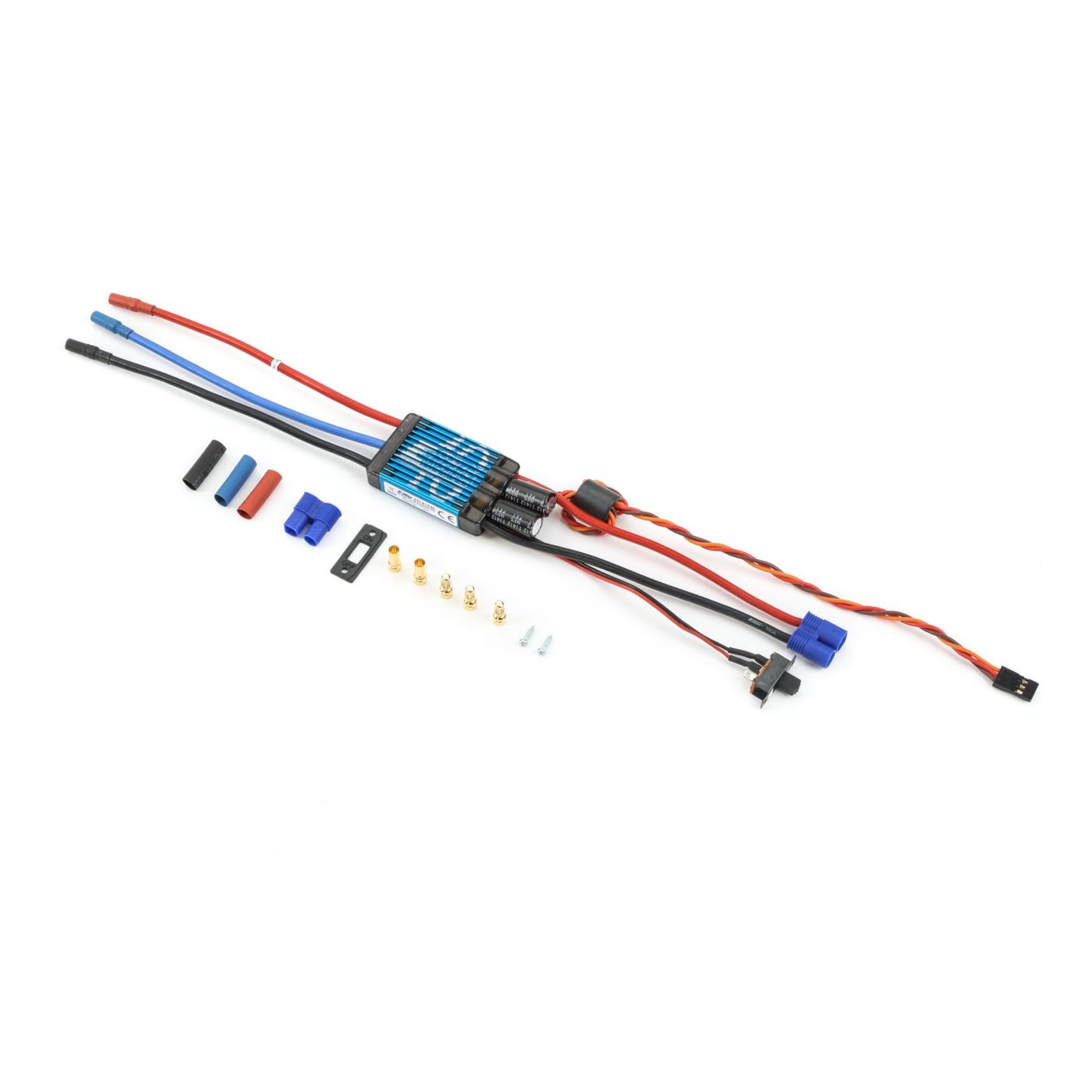

The E-flite 40 A Pro Switch-Mode BEC Brushless ESC (V2, model EFLA1040B) offers efficient and powerful speed control with an integrated switch-mode BEC—eliminating the need for a separate receiver battery. This compact unit is perfect for sport, scale, and trainer class aircraft that require reliable power and streamlined setup.
Features
- 40 A continuous current (requires proper airflow); 55 A burst (15 s)
- 5 V, 5 A switch-mode BEC—supports up to 7 analog or 6 digital servos
- Operates on 3–6S LiPo or 9–18 cell NiMH/NiCd batteries
- Finned heatsink design for efficient cooling
- Programmable features: braking, low-voltage cutoff, throttle range, soft start, timing, and failsafe
- Safe power-arm mode to prevent accidental motor activation
- Prewired with EC3 battery input and 3.5 mm bullet motor leads
What’s Included
- E-flite 40 A Pro Switch-Mode BEC ESC (V2) with EC3 connector
Needed to Complete
- Compatible brushless motor
- Appropriate battery setup (3–6S LiPo or similar)
- Programming tool or throttle stick for ESC configuration
Specifications
- Continuous Current: 40 A
- Burst Current: 55 A (15 s)
- Input Voltage: 11–22 V (3–6S LiPo, 9–18 NiMH/NiCd cells)
- BEC Output: 5 V, 5 A
- Weight: ~62 g
- Dimensions: 68 × 33 × 13 mm (L × W × H)
- Wire Gauge: 13 AWG
