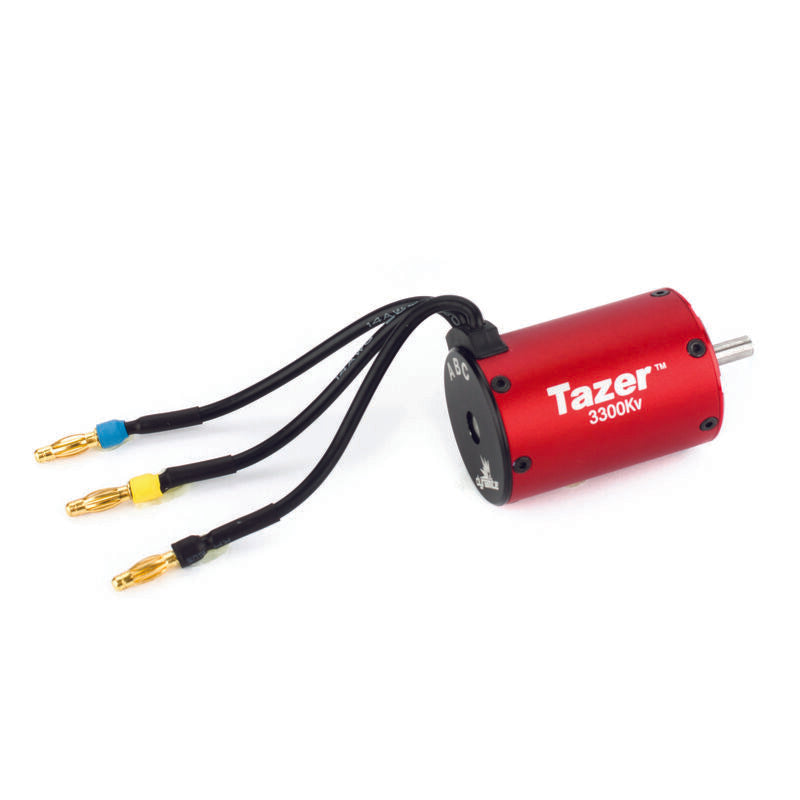

Tazer 1/10 4-Pole Brushless Motor 3300Kv

The Dynamite Tazer 4-Pole Sensorless Brushless Motor (3 300 Kv, model DYN4942) is a high-performance upgrade for 1/10-scale on- and off-road RC vehicles. Its 4-pole design delivers smoother throttle response, enhanced torque, and excellent efficiency—perfect for racers and bashers alike.

Features

• 3 300 Kv rating—combines strong acceleration with high top speed
• 4-pole sensorless construction—minimal cogging and improved throttle feel
• Direct-fit mount for 540/550 standard motor setups
• Pre-wired with bullet connectors for quick installation
• Built with ball bearings and a hardened steel shaft for long service life

Included

• Dynamite Tazer 4-Pole Brushless Motor (3 300 Kv, model DYN4942)

What You’ll Need

• Sensorless-compatible ESC (brushless speed controller)
• 2–3 S LiPo or 4–7-cell NiMH battery pack
• Proper gearing based on vehicle type and application

Specifications

• Type: 1/10 scale, sensorless brushless motor (4-pole)
• Kv Rating: 3 300 Kv
• Shaft Diameter: 3.175 mm (1/8")
• Voltage Compatibility: 4.5–12.6 V (2–3 S LiPo, 4–7 cell NiMH/NiCd)
• Current Draw: ~4.1 A @ 7.2 V
• Power Output: ~220 W
• Efficiency: ~90%
• Size (without fins): Ø 35.8 mm × Length 52 mm
• Weight: ~198 g
• RPM/V: ~3 300
