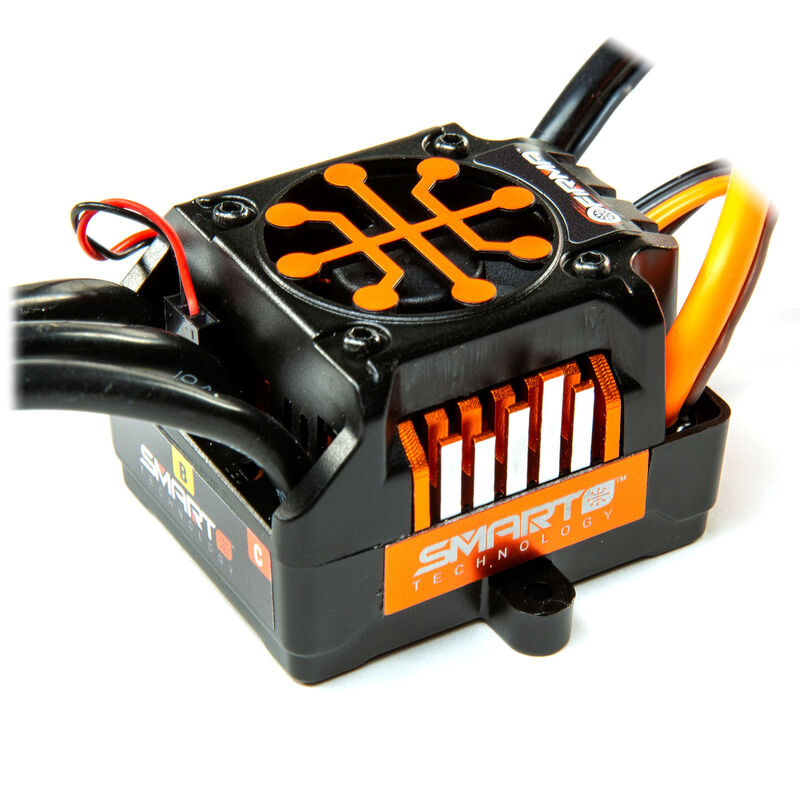

Firma 150A Brushless Smart ESC 3S-6S Dual IC5

The Firma 150A Smart ESC from Spektrum is the perfect upgrade for 1/8-scale surface vehicles requiring serious power and Smart telemetry. It combines durability, performance, and ease of use into one compact waterproof package.

Features

• Smart technology provides real-time telemetry including voltage, current, temperature, and motor RPM
• Compatible with SRXL2 receivers and Spektrum transmitters
• Fully waterproof for all-weather operation
• Aluminium heat sink and cooling fan for efficient thermal management
• Selectable BEC output – 6V or 7.4V @ 5A
• Multiple programming options – button, Smart ESC Programming Box, or SmartLink app
• Includes dual IC5 battery input connectors and 4mm bullet motor outputs

What’s in the box

• Spektrum Firma 150A Smart ESC (with IC5 connectors)
• Spektrum Smart decal sheet
• Instruction manual

Needed to complete

• Spektrum surface receiver
• Spektrum-compatible transmitter
• 3S–6S LiPo battery with IC5 or EC5 connector
• Brushless motor

Specifications

• Type: Smart sensorless brushless ESC
• Input voltage: 3–6S LiPo
• Max continuous current: 150A
• Connectors: Dual IC5 input, 4mm bullet motor output
• Programmable: Yes
• Waterproof: Yes (IP67 rated)
• Dimensions: 58 × 47.5 × 38.5 mm
• Weight: 238 g
• BEC output: 6V or 7.4V @ 5A
• Telemetry: Compatible with SRXL2 receivers and Smart transmitters
