Dynamite 15-Turn Brushed Motor

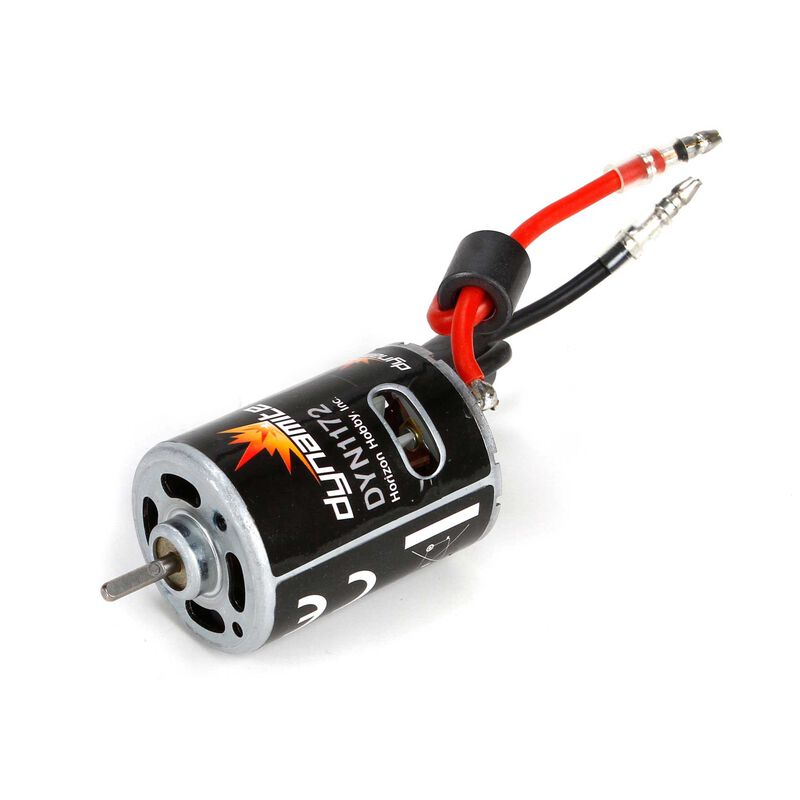

The Dynamite 540-size brushed motor (15 turn, model DYN1172) is a seamless upgrade or reliable replacement for various applications in hobby-level RC cars and trucks. Its sealed, inrunner design and low-maintenance build offer dependable performance in a compact package.

Features

• 540-size brushed motor with 15-winding turns—balanced power and smooth performance
• Bushing-supported, sealed inrunner—minimal maintenance required
• Standard 3.5 mm bullet connector for easy installation
• No adjustable timing—simplifies tuning and operation

Included

• 540 brushed motor (15T, model DYN1172)

What You’ll Need

• RC vehicle compatible with 540-size motor mounts
• Battery pack within 4.8–9.6 V (e.g., 4–8 cell NiMH or 2S LiPo)
• Optional: motor pinion gear matching your drivetrain setup

Specifications

• Size: 540 brushed inrunner
• Turns: 15T
• Voltage Range: 4.8–9.6 V (4–8 cell NiMH/NiCd or 2 S LiPo)
• Shaft Diameter: 3.175 mm (1/8")
• Shaft Length: 15.5 mm
• Overall Diameter: 36 mm; Length: 50 mm
